I need some help

[Thanos_T]

Guys!
I am uploading a photo of a board that i discovered on my boxes.
It is for a sssg circuit BUT i have lost all of the info related to that item.
I want to work again on this project and i need your guidance regarding the
name of the project, and also some relative threads to get info.

If in any case you have a website that is dealing with the above please advice!


Thank you in advance!
I really hope to find info again so as to start working on it.

[xmemphis]

Guys!
I am uploading a photo of a board that i discovered on my boxes.
It is for a sssg circuit BUT i have lost all of the info related to that item.
I want to work again on this project and i need your guidance regarding the
name of the project, and also some relative threads to get info.

If in any case you have a website that is dealing with the above please advice!


Thank you in advance!
I really hope to find info again so as to start working on it.

Nice board you have there. I wish I can make like that too but lack of parts that I can scavage in my home. So I just built simple as I can starting from single transistor 1st. Seems u have that kind of board, I assume you already have multiple slave coil or maybe multiple ccw in one coil.

So have you manage to start your project back till it run?

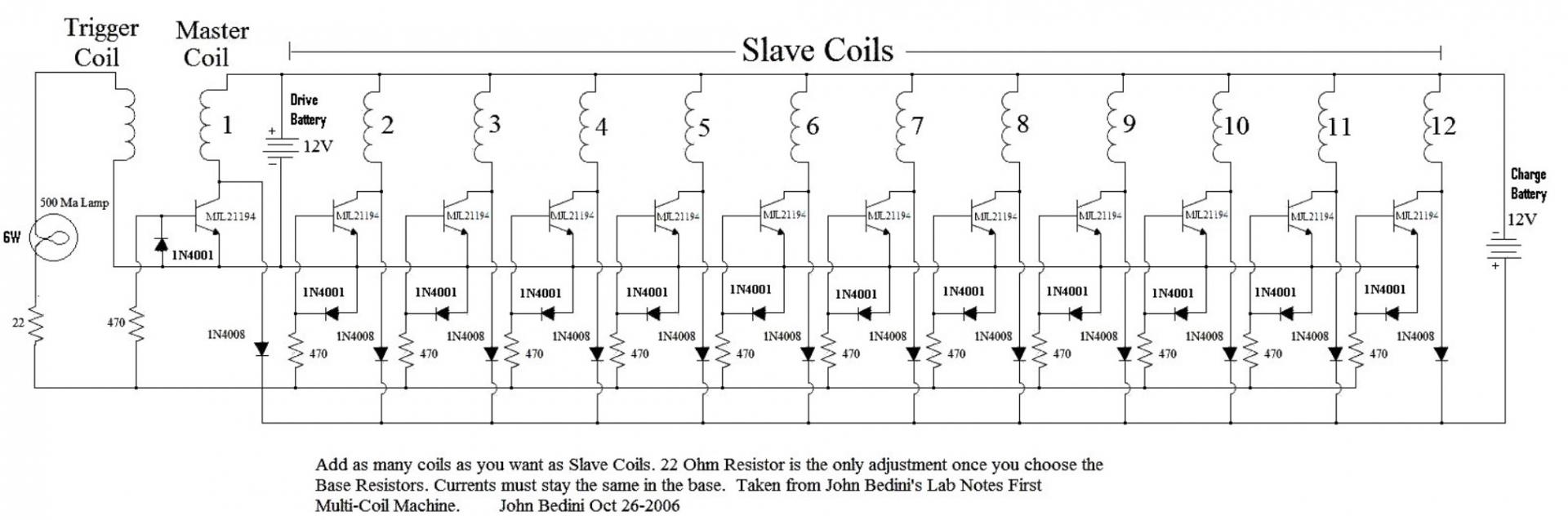

This is the schematic related to your board I think,.
