i came across a power bright 6000w that was already taken apart and one of the dc booster boards was fried the other was in pretty good shape i changed the fets and 3060 diodes but the control board is not so good its microcontroller based and i want to try and take a different approach and use a different control circuit to control this 1 good booster board i need help to see if it can be adapted to fit this board ill post a pic of the booster board and a schematic diagram of the control circuit ive built ....
the reason i ask for help is ive already tried to get it working but something is wrong not sure what though i know i may need to change to diodes to 1560 instead of 3060 because it doesnt need them that large

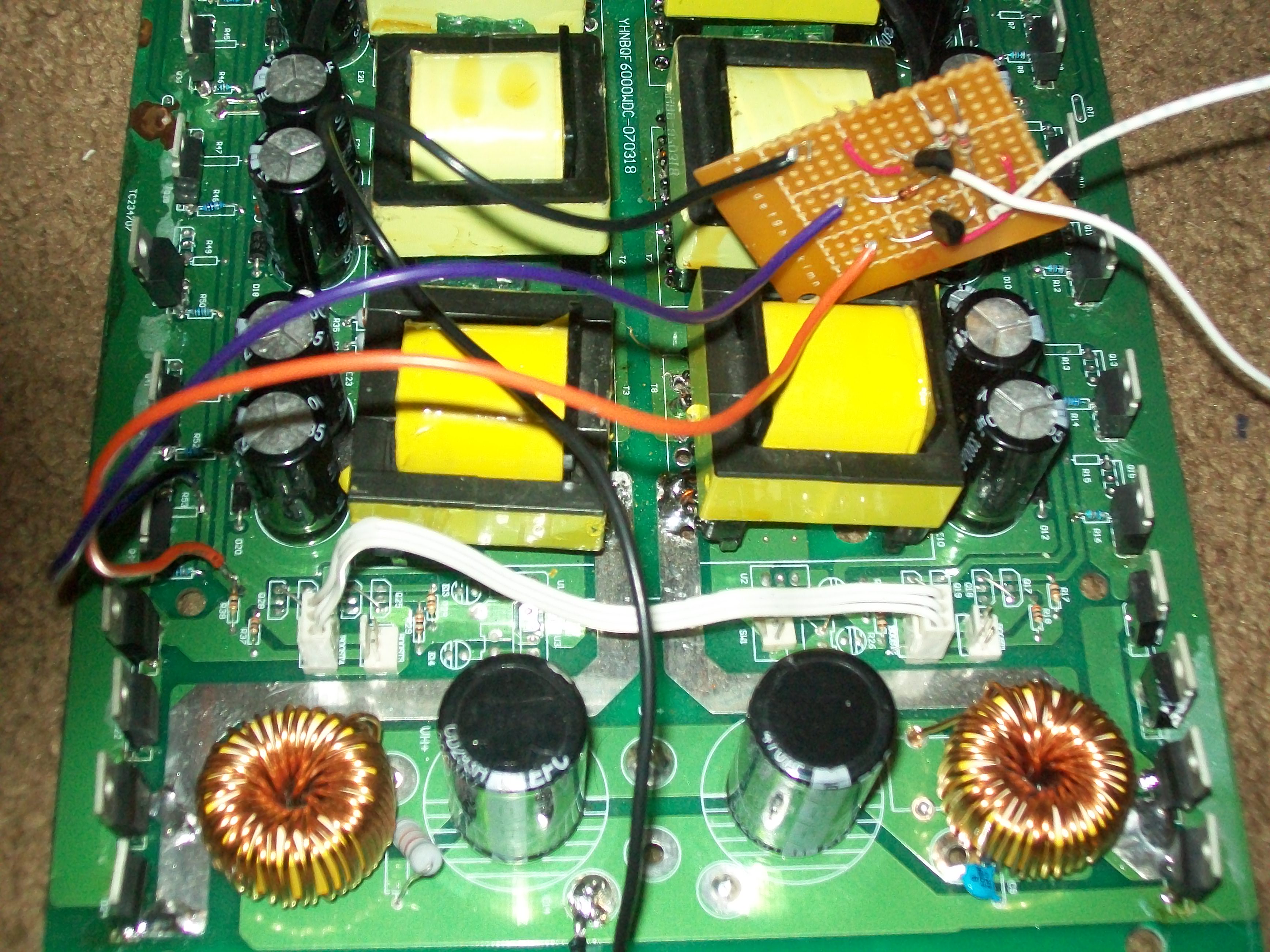

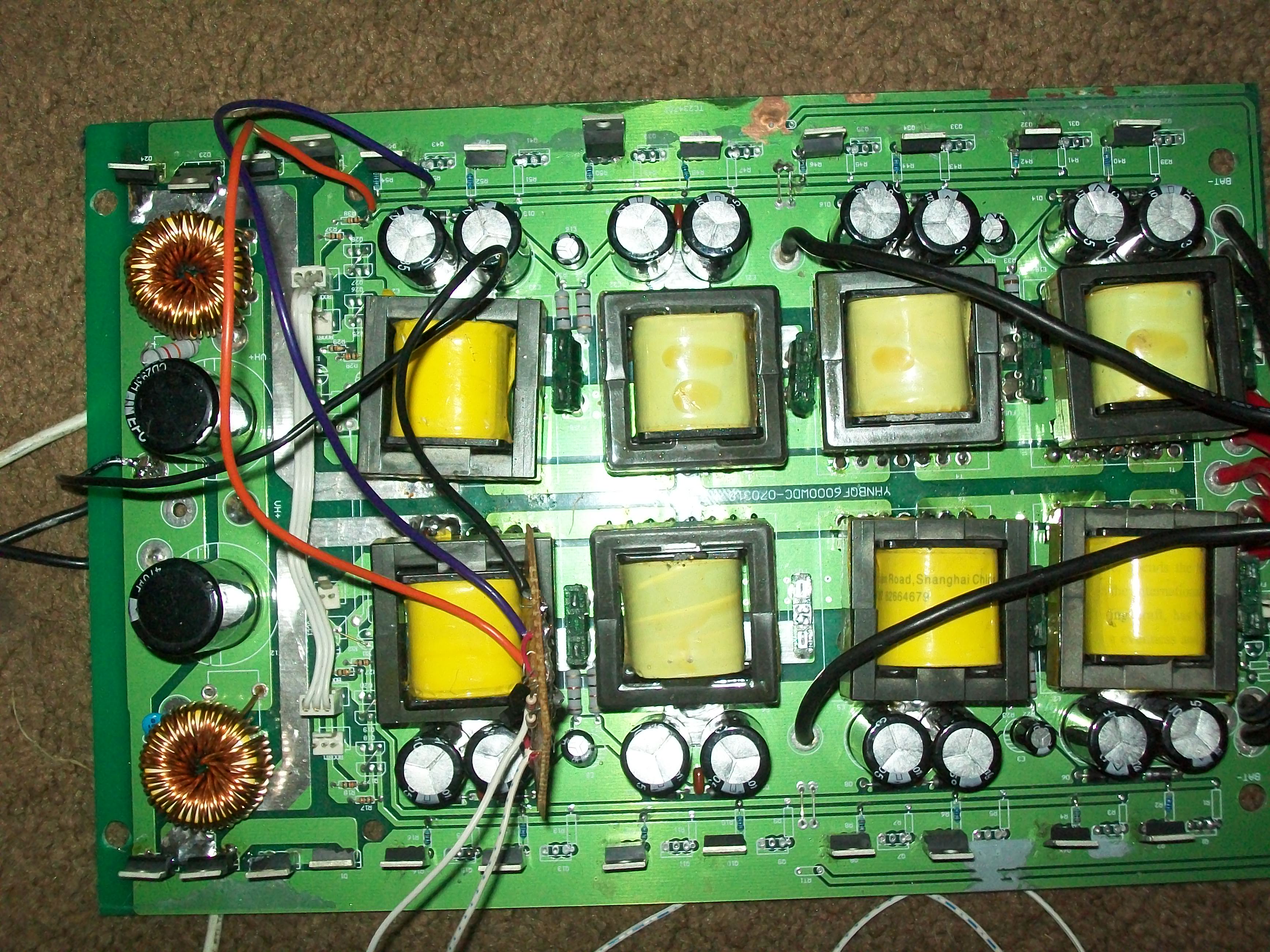

in the pic i have added a daughter board from the power stage schematic which is already posted here on this site
http://www.energeticforum.com/renewa...schematic.html
the reason i ask for help is ive already tried to get it working but something is wrong not sure what though i know i may need to change to diodes to 1560 instead of 3060 because it doesnt need them that large
in the pic i have added a daughter board from the power stage schematic which is already posted here on this site
http://www.energeticforum.com/renewa...schematic.html
