Use for the Tesla Switch

[StevanC]

The Flying-Supply for the Flying Duchman [21st ct. battery pirates]

Its now time to introduce You with another concept, enter
The flying power supply


1. We all know JT type of circuit.
2. And the advent of switch-mode BJT with low Vce(sat) like the D44H11 is (and D880)
And the 2N2222 is not but it could go here
3. And we know of the special "crowbar" safety that can be achieved with 10V10W string of Zener diodes. I intend to use 5 (fiive) of them
4. And we all should be able to produce a 0.5mH transformer (xfmr) with three (or four) 0.4mm windings? Could anyone step forth with wrap numbers?
5. two capacitors of 100 ... 470uF 35...50V rating

We intend to produce a 20V floating end supply for a flying load.

Next time in "21.st century battery pirates":

A. THE schematic
B. How it works
C. HOWTO build

Stay tuned until next time in "21.st century battery pirates"...
qP-{)> (capt'n Dave )

[StevanC]

21st century battery pirates [series]


You still are here, thanks

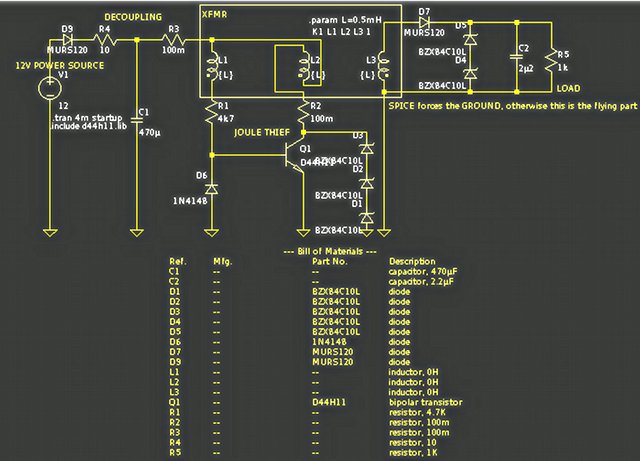

here the first part of the schematic


So, we all know JT, right?
The BJT starts "in Que" (=short) and as the first impulse rises, it induces voltage in both the feedback and the secondary winding.
In the feedback, voltage trough base generates current, effectively shutting the BJT OFF.
As soon as the BJT is OFF, the current ceases to flow through the primary, causing the Mag-Field (MF) to decay which, in turn, produces current INRUSH to both the primary and all other windings, only opposite direction: the BJT slams wide open but the current can't flow Collector to emitter in opposite direction!

This creates a KICK (tm) that brings the "node" in between the BJT and the COIL "under pressure" (TM @ZZtop )
But since we don't have a "release valve" here, the pressure goes elsewhere: it divides across the other windings:
The part going trough the base is limited by the 4k7 resistor - it determines the consumption in a large extent
The other part ends up in the "floating sections"
Here I want to make something clear:

SPICE is really noxious about grounding each and every part of a circuit ("no floating nodes"), so I did it, but in reality we won't okay?

In each floating section, (note we have inverted only the "primary") we receive the KICK (tm) and let it pass over a rectifier diode, if it was easy I would put here 1N4007, but spice includes only Motorola devices...
Therefrom we short out everything that's above 20V, or at least alost everything
Therefrom, we store the excess energy in the capacitor and "bleed" a bit with a 1k Ohm resistor (freewheel resistor).

And the three Zeners next to the D44H11? They serve to prevent voltage levels (much) above 30V so the device can be safe tor a 40V rated device.


that's it.

This particular (single) supply could be connected to my IRS21851's Vboost and Vg legs and serve to energize the device with above 18V levels all the time

Just add another "output" winding with exactly same parts and either:
A. lower the 4k7 resistor to say 2k2
B. increase the 1k resistor to twice 2k2 (one for each output)


Thanks for reading
Stevan C.

[StevanC]

a bit OFF TOPIC but who knows...

Pockels effect - Wikipedia, the free encyclopedia
it is about modulating light by voltage
and in the first few lines is guess what: gallium arsenide: the BJT from the 60's?


After wikipedia, i did my LTspice-brain-gym...
think this:
Cockcroft-Walton_generator
This is important


Best regards,
Stevan C.

[StevanC]

One more schematic (sorry)

This is the LAST one today...

Stevan C.
