DETAILED DESCRIPTION

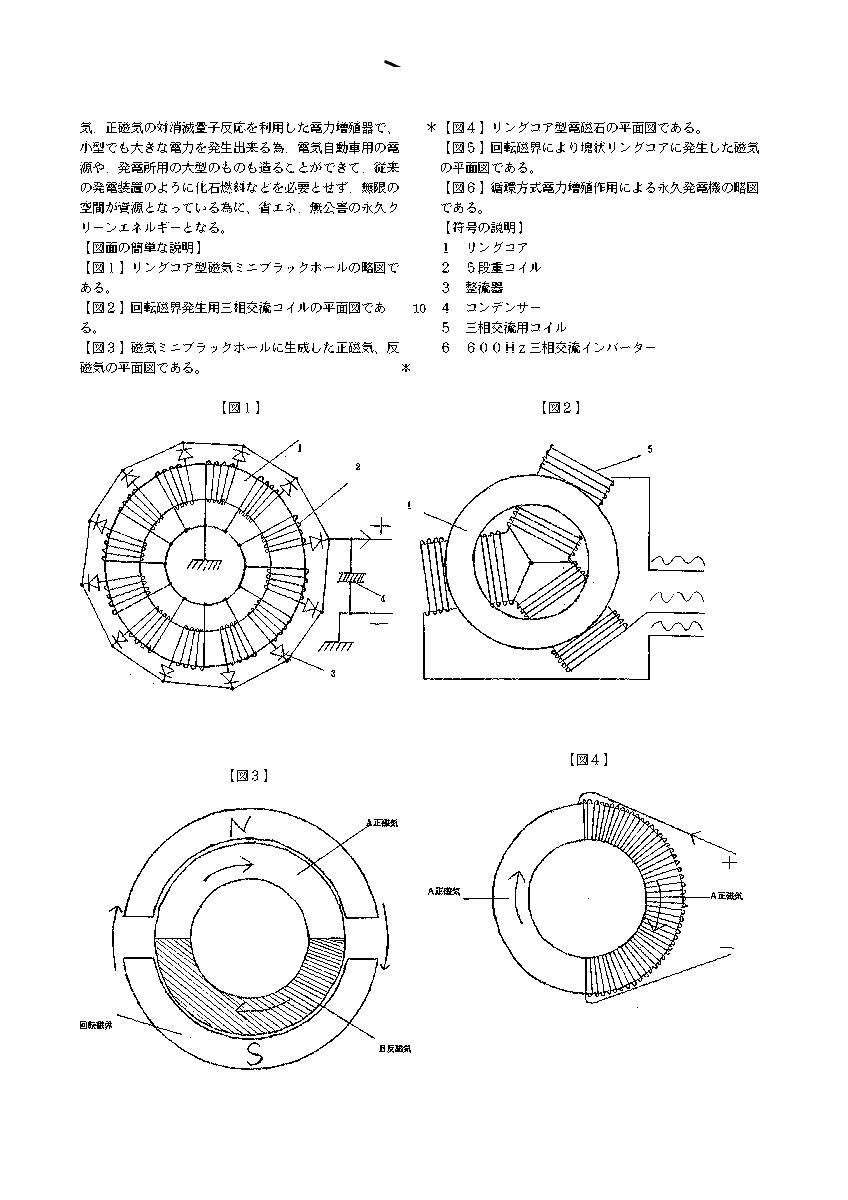

[Detailed Description of the Invention]
[0001][Field of the Invention] The power supply for electric vehicles, generator for plant [0002] The power plant of the [Description of the Prior Art] former is generated with the energy by nuclear fission etc. using a fossil fuel, uranium, etc.
[Problem(s) to be Solved by the Invention]Although the method of converting mass to energy has nuclear fission and an annihilation reaction by combination of nuclear fusion, other particles, and an antiparticle conventionally, the antiparticle cannot perform extensive generation by some labors in the present technology, but utilization is still impossible. Then, anti-magnetism is one of those can carry out extensive generation by some labors instead of an antiparticle. If there is anti-electrical and electric equipment of an anti-electron and antiproton, naturally it will be predicted that there is also anti-magnetism and an antiparticle and anti-magnetism will become equivalent in terms of quanta.
[0003]If there is an annihilation reaction of an antiparticle, naturally, there is also an annihilation reaction of anti-magnetism and it has taken out the big energy generated at the annihilation reaction by combination with right magnetism and anti-magnetism as electric power. Although an antiparticle is if it is simply generated around the black hole in Dr. Hawking's theory, it is impossible for us to obtain the antiparticle.
[0004][Means for Solving the Problem]Then, if a ring-core type magnetism mini black hole is built artificially, anti-magnetism is easily generable with slight energies. When it describes with Drawings, structure of a magnetic mini black hole, By a method of Fig.1, a plurality of coils of an about 50-set 50 phase are wholly rolled in the same direction like 2, and 50 sets of leads on the winding start side are packed into one, and it is considered as one pole, a total of 50 rectifiers 3 are altogether prepared in a direction of the winding finish side on the pole of the same +, and it collects into the surroundings of the ring core 1 one.
[0005]If the coil 5 for three phase alternating currents is arranged the outside and inside a ring-core type magnetism mini black hole, and an about 600-Hz three phase alternating current is passed inside and they are made to generate a revolving magnetic field like Fig.2, If induced voltage occurs in a coil of a ring core and the output current is rectified, it will become a very smooth direct current by a plurality of source resultant pulse numbers and capacitors 4. In about 25 sets of a single-sided half of 50 sets of coils wound around a ring core, Induced voltage of a forward direction occurs to a rectifier, and induced voltage of an opposite direction occurs in about 25 sets of the remaining one side half, Since current flows into a coil of a single-sided half of a ring core, positive magnetism occurs and current does not flow into a coil of the remaining one side half, there is no electromotive force, but equivalent anti-magnetism by an equivalence principle is generated, and a rotary type pear of right magnetism of Fig.3 and anti-magnetism is generated instead of.
[0006][Equivalent description of anti-magnetism] Although there are an electromagnet and a permanent magnet in a magnet, only in the single-sided half of a ring core like Fig.4, densely, about a coil, when winding current is sent, the inside of a ring core has little magnetic resistance, and magnetic flux becomes the one closed electromagnet A which aligned at the single tier. However, two magnetism of rightward facing the left like Fig.5 occurs, two points which collided become a n pole and the south pole, and the massive ring core placed into a revolving magnetic field like Fig.5 and the magnetism which the induced current by a revolving magnetic field flowed through and generated in the short-circuit-winding type ring core become A and a B-2 piece magnet. If an induced current flows into the ring core placed into the revolving magnetic field, A and the B-2 piece magnetism which faced each other will usually occur.
[0007]In the case of the ring-core type magnetism mini black hole of Fig.3, In spite of being placed into the revolving magnetic field, A and B-2 piece magnetism occur in the direction which aligned at the single tier, It is not because unlike the case of ordinary electromagnet Fig.4 B was only ****(ed) by the magnetism of one side A and it aligned, It means that an anti-electron is electrified physically at the surroundings on the ring-core B side, it considers that it is equal to the magnetomotive force which occurred since anti-current flowed, and the anti-electron is flowing physically by the equivalence principle of an electromagnet and a permanent magnet even if the anti-electron is not actually flowing into the surroundings of B, and anti-magnetism was generated. Anti-magnetism is in direct proportion to output power, and is generated. Only when the ring-core type magnetism mini black hole is placed on in the hall [ by a revolving magnetic field / electromagnetic ], pair creation of the equivalent anti-magnetism is carried out, and in ordinary electromagnet Fig.4, the magnetism of the whole ring core only turns into a series of closed right magnetism.
[0008]The point which it is careful of needs to make output current the smoothest possible direct current, in the pulsating flow of exchange or change with an intense output, in the magnetic flux which occurred in the ring core, a direction changes with change of output current continuously, magnetic flux flows out outside then, magnetic energy is lacked, and pair creation does not break out. Since an inductance is high, a voltage drop breaks out. Since the pear of the right magnetism which carried out pair creation into the ring-core type magnetism mini black hole, and anti-magnetism annihilates, magnetic flux is not emitted outside but is nonresistant to an outside revolving magnetic field, It does not act on an external three phase coil, but the three phase current of an input has the power unrelated to the size of downstream output power by Lenz's law, and it is substantially fixed. Input power is the agency energy for inducing a pair creation reaction, and is not the energy of direct-output electric power.
[0009]Like Fig.6, by returning the electric power of 1(4%)/25 degree of a dc output as electric power of a three phase alternating current inverter, and circulating through it, pair creation and an annihilation reaction can be caused continuously and continuous big electric power can be taken out by electric power multiplication. Power generation as output 15kW can be performed like input 500W as an example.
[0010][Effect of the invention] This permanent generator is an electric power growth machine using the annihilation quantum reaction of anti-magnetism and right magnetism, Since the power supply for electric vehicles and the large-sized thing for plant can also be built, and a fossil fuel etc. are not needed like the conventional power plant, since big electric power can be generated even if small, but infinite space serves as resources, it becomes energy saving and pollution-free permanent clean energy.
