[vrand]

Vrand,
Good to hear your progress with this B&L replication.

Nice picture of your setup. I noticed you don't use a GDT on the ground grid return. Unless it's just not pictured.

I found that placing my amp clamp on the ground grid wire did show amps being extracted from the earth.

If not too much to ask, a video showing your schematic and results as the previous poster mentioned will restart this thread and finish this build once and for all.

I could not get my setup to produce much output and still have all of the components in place.
So to see your way of setup would be great.

I'm in LA area now, will be headed back to South Carolina Saturday.
Keep up the good work,
wantomake

Hi wantomake,
Yes, the GDT is there, now shown clearer in the 6 photos I just uploaded.
The design is basically what Clarence showed back on Post #1570 and 1581 (thanks again Clarence!)

Its really a very simple device, compared to what I have been working on for the last several decades. That is what got me so interested in the first place.

When the local utility turned off the power for 13 hrs and 1500 homes were in the dark until midnight. The next day I went searching this forum last August 23rd. I discovered Clarence found the solution to tapping the unlimited electricity in the Earth on August 8th! The coincidence of needing a solution to local utility outages due to the 90 year old electrical grid needing maintenance, and finding Clarence's solution was unbelievable!

After viewing Clarence photos and ordering the parts, it was a snap to put together.

- Next step was the connection to the Earth ground to the device. See upper left corner of photos with #6 awg wiring to terminal block. Already had existing 8 ft ground rod (earlier project) so tapped into that. Turned it on and it worked to light up a 68 watt light bulb with 4 watts input!

That one ground rod was not enough to power larger loads though. So off to find existing grounded sources, as I do not have time to driving 26 rods into the Earth just yet.

- Next, tapped to existing buried steel posts structure and lawn water pipe system and bingo, got really good results.

Let me know where you are having trouble and maybe I can help.
Cheers

[wantomake]

Vrand,
Ok. Now I see the GDT in the 4th picture.

wantomake

[vrand]

Dear vrand, not sure if I follow but lets see.
You say it's like a mirror. So, would it be that half the power is coming from the grid and the other half from the ground? is what you're trying to say?


However, you wrote this: Current setup for 120 Vac. using 5 watts input from utility, (0.04 amps) and getting 2000 watts output

Is this correct?... are you only using 0.04 amps from the grid to produce 2000 watts output?

Which is it and can you make a video demo of it working?

Thanks for your time

Luc

Hi Luc,
Yes, due to the limit of the 20 amps circuit breaker (wall plug circuit) in my current setup, the output is also limited to 20 amps. Working on testing it on a 50 amp circuit.

The device uses the input 20 amps and outputs loads up to 20 amps, all the while only 0.02 amps (4 watts) input is actually being used to extract the +2000 watts output. Pretty amazing!

Attached 6 photos showing earlier device performance, before adding more existing ground connections to lowering the ground resistance, which is a key feature of this device.

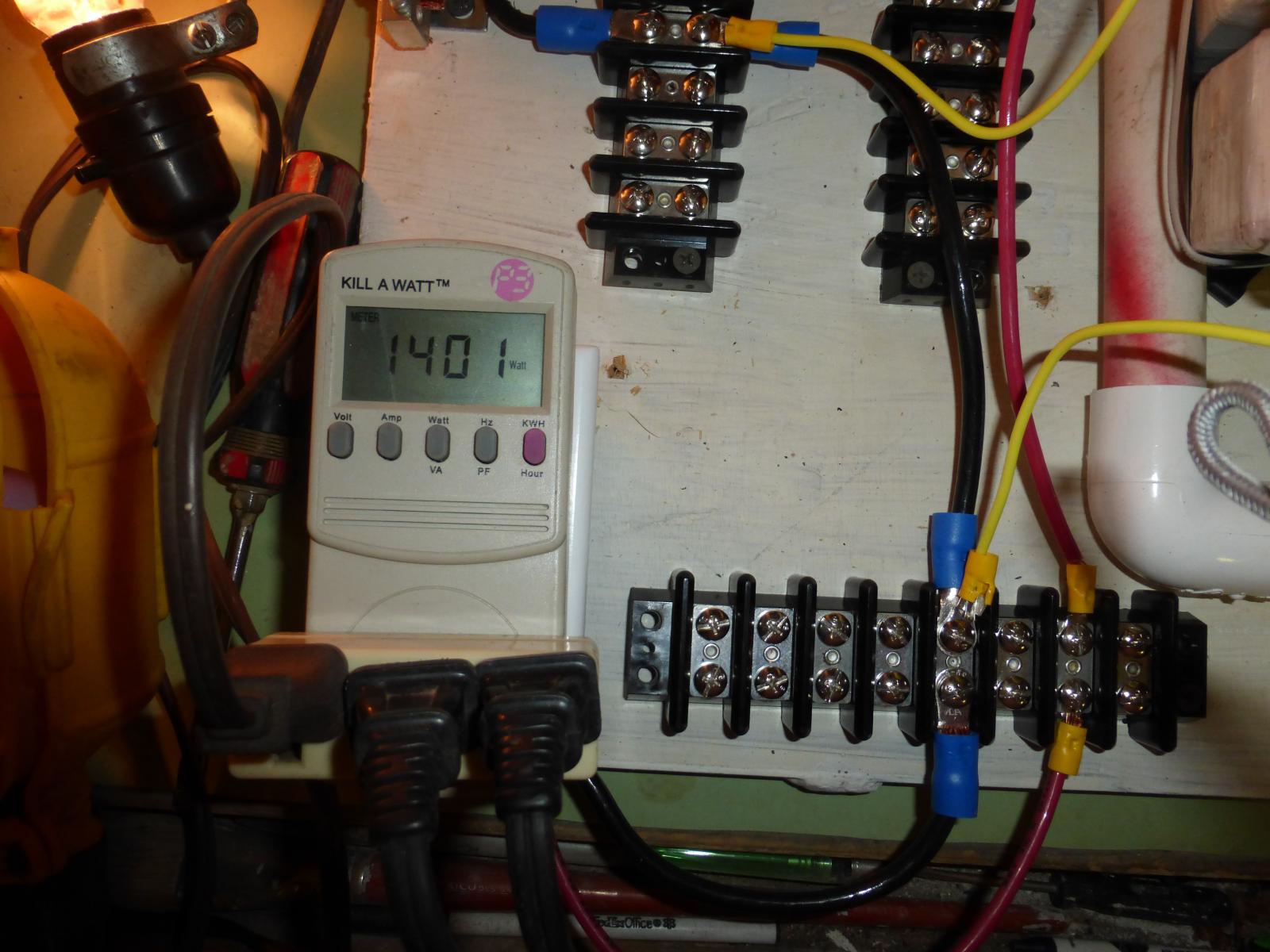

At 1400 watts output, and 4 watts input

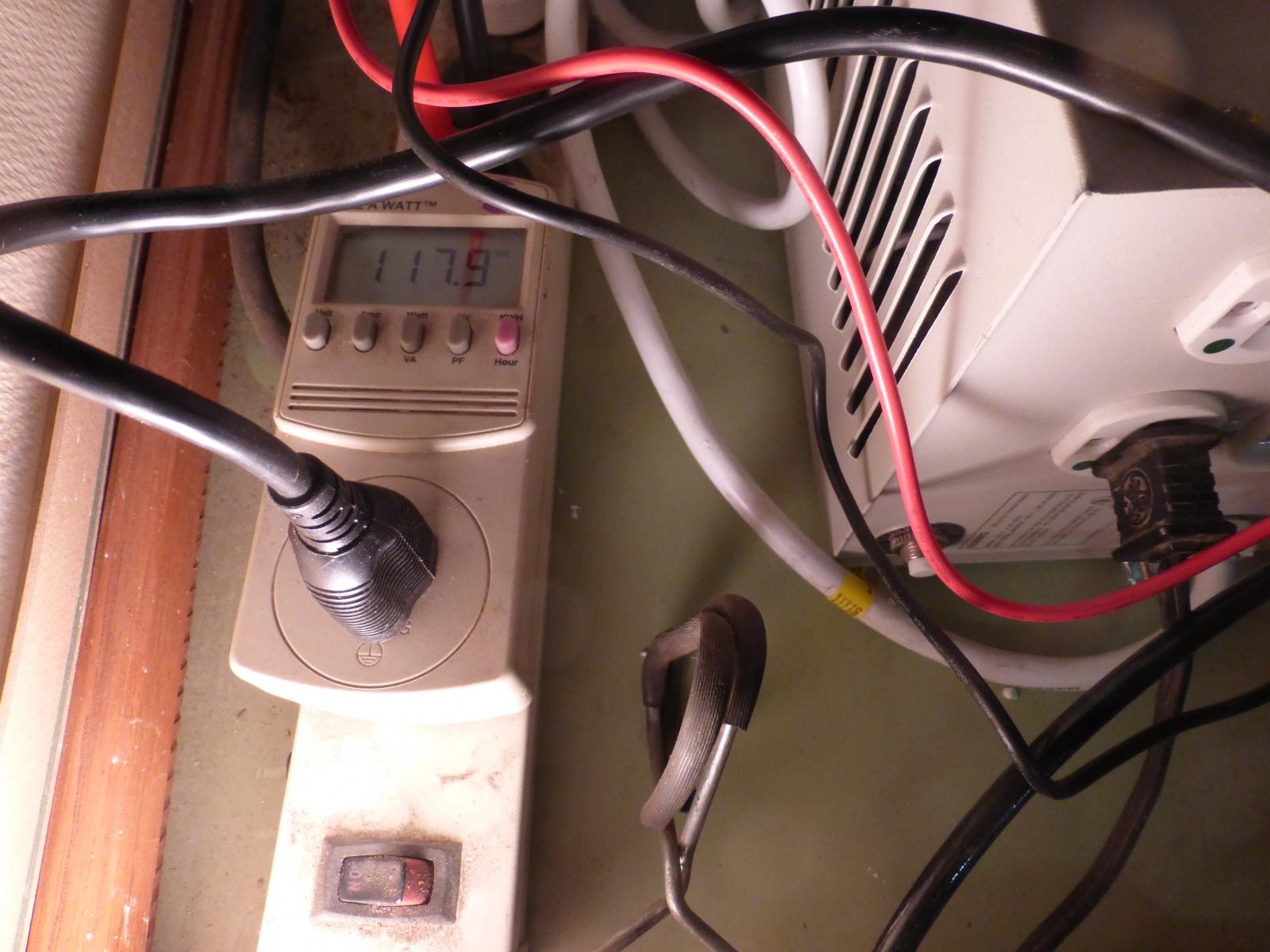

- the input voltage is 118.6 vac
- the output voltage is 114.6 vac
- output amps 12.29A
- input amps 12.41A
- Input ground amps 12.23A

Cheers

[wantomake]

Gdt

Update on existing grounding testing:

Current setup for 120 Vac. using 5 watts input from utility, (0.04 amps) and getting 2000 watts output, (24.5 amps) from the device, then the input plug circuit breaker trips open. To go over +20 amps output will need a higher rated circuit breaker. Everything runs cool, no heat on the wiring or toroids. This device could go to 50 amps or more, just need to get a larger circuit breaker.

Good existing grounding so far, where the input drops to 117 Vac (utility) and device output drops to 116.5 Vac at 2000 watts output. So only a 0.5 Vac difference from input voltage to output voltage at 2000 watts output.

Will also try to increase input voltage with variac to 240 Vac to see what can get on output.

Tried a 500 watt isolation transformer, but when the device output past the 5 amp transforner limit it tripped open its circuit breaker. The Killawatt meters also max out at 1500 watts and then starts beeping and shuts down.

If going to inverter/charger setup, it looks like the limiting device output factor would be the inverters output amps. For example if the maximum inverter output amps was 5 amps (500 watt unit) then the device output could only use 5 amps, even thou the input meter shows only 0.04 amps was being used from the inverter. This is a strange device for sure!

For my 25 feet of closed loop secondary windings of #12 awg (yellow wire) I got 19 turns on each toroid. The circulating current always stayed around 6.65 amps, no matter what the output current.

Cheers

Vrand,
Good to hear your progress with this B&L replication.

Nice picture of your setup. I noticed you don't use a GDT on the ground grid return. Unless it's just not pictured.

I found that placing my amp clamp on the ground grid wire did show amps being extracted from the earth.

If not too much to ask, a video showing your schematic and results as the previous poster mentioned will restart this thread and finish this build once and for all.

I could not get my setup to produce much output and still have all of the components in place.
So to see your way of setup would be great.

I'm in LA area now, will be headed back to South Carolina Saturday.
Keep up the good work,
wantomake

[gotoluc]

Dear vrand, not sure if I follow but lets see.
You say it's like a mirror. So, would it be that half the power is coming from the grid and the other half from the ground? is what you're trying to say?


However, you wrote this: Current setup for 120 Vac. using 5 watts input from utility, (0.04 amps) and getting 2000 watts output

Is this correct?... are you only using 0.04 amps from the grid to produce 2000 watts output?

Which is it and can you make a video demo of it working?

Thanks for your time

Luc

[vrand]

Hi Luc,
My explanation of what is occurring is that the input Voltage AND Amperage are needed for this device to work. Without either the Amperage or Voltage the device does not work. AND the higher the input Amperage the higher the output Amperage, but the output Amperage or Voltage will not be higher than input. Its like a flat mirror reflecting the same image.

If I put a 5A fuse to limit the input Amperage to 5 amps, the output amperage will also stop at the 5 amp limit. This device will NOT increase the Voltage or Amperage.

This device only extracts/pulls the same, or less, voltage and amperage (due to ground and load losses) out of the Earth ground, using only 5 watts of input.

Now my AC meters are showing only 5 watts and 0.04 amps being used in the input. They could be wrong. One way to test it is by using a DC meter in an inverter/battery setup and put a DC amp meter to measure the net amps being used in the input side from the batteries.

Also, if I pulled out the ground wire connection to the device the device stops working. In previous tests I've written above, the 500 watt isolation transformer was limited to 5 amps output. So when I tried to add output loads higher than 500 watts the isolation transformer 5 amp fuse would pop out and shut down the isolation transformer output.

This device uses the input Voltage and Amperage (V/A) in a special way to pump out Earth electricity without actually using all of the input V/A, only a tiny amount is being used to do this. Strange indeed. Theoretically the sky is the limit. A larger size device who knows how many volts/amps of electricity could be extracted from the Earth.

Cheers

[gotoluc]

Dear vrand,

Thanks for sharing your information.

Could you please make a video demo of your device in operation and show the Grid input measurement you use.
Also, it would be great if you can add a 5 Amp auto fuse in series on the grid HOT side wire and show a closeup of the fuse filament. This way we will know the grid current would be limited to 5 Amps. This will also add confirmation that your meters are not being fooled somehow.


Thanks for your help

Luc

[vrand]

Observations

This device looks to be a mirror of the input generator/inverter Voltage and Amperage to the Earth grounded electricity source output, only using 5 watts to do this. For example if my input source is 120 Vac at 20 amps, then my output will be around 120 Vac at 20 amps, less the grounding losses from a perfect 0 ohm ground and the output load losses from the decrease in input Voltage. While only using 5 watts from the input source generator. Electricity is being pulled from the Earth to match the generator source of Voltage/Amperage, using only a miniscule of electricity to do this. This is pretty amazing.

Pulling energy from the Earth and Air is similar to what Henry Moray did back in 1925, with his ground rod and aerial wire device. Eventually Henry found a way to only use the Air to extract electricity, similar to Tesla's electric car, he used an antenna, to drive around town. I have read that even Barbosa and Leal now claim to extract electricity from the Air, and have no need for the ground rods.

Well I am happy with this Earth source of electricity until we figure out how to do it even simpler, like with just air.

Cheers

[vrand]

Update on existing grounding testing:

Current setup for 120 Vac. using 5 watts input from utility, (0.04 amps) and getting 2000 watts output, (24.5 amps) from the device, then the input plug circuit breaker trips open. To go over +20 amps output will need a higher rated circuit breaker. Everything runs cool, no heat on the wiring or toroids. This device could go to 50 amps or more, just need to get a larger circuit breaker.

Good existing grounding so far, where the input drops to 117 Vac (utility) and device output drops to 116.5 Vac at 2000 watts output. So only a 0.5 Vac difference from input voltage to output voltage at 2000 watts output.

Will also try to increase input voltage with variac to 240 Vac to see what can get on output.

Tried a 500 watt isolation transformer, but when the device output past the 5 amp transforner limit it tripped open its circuit breaker. The Killawatt meters also max out at 1500 watts and then starts beeping and shuts down.

If going to inverter/charger setup, it looks like the limiting device output factor would be the inverters output amps. For example if the maximum inverter output amps was 5 amps (500 watt unit) then the device output could only use 5 amps, even thou the input meter shows only 0.04 amps was being used from the inverter. This is a strange device for sure!

For my 25 feet of closed loop secondary windings of #12 awg (yellow wire) I got 19 turns on each toroid. The circulating current always stayed around 6.65 amps, no matter what the output current.

Cheers

[vrand]

It Works!

Thank you Clarence, again, it Works!

Here in southern California good ground according to magnetic map.
Prelim. test results:
- 1 ground rod got 5 amps.
- Added 7 existing buried steel structural posts got 22 amps.
- Next to add existing 68 foot long unused 1/2" galv. lawn sprinkler pipe.
- Next to add existing 150 foot long chain link fence with 15 buried steel pipes.
- Next to add the new 26 ground rods.

Would like to get to 100 amps to tie to existing electrical panel. The ground/earth rods connection is the limiting factor. Need to keep the voltage up to 120 Vac.
Thanks

[med.3012]

Hi Digits
here is a partial list of interested builders, the
fun begins now
jimboot
Forthebest
totoalas
a.king21
BobBrown
ZeroMassInertia
ewizard
Wistiti
wayne49s
masen
maxolous
cheors
Belangers
desa
Fjohnnyb
dielectric
sinergicus
OrthoParameter
shylo
MadMack
mobigozer
luc2010
JESUS PIŅA
tvka
djarno
jim glinski's Avatar
jim glinski
Mario
fer123
FRANKLIN
digits10
med.3012

Hello Bro !


nice to see my name here i would like to help but i am really busy with other ideas, anyway we are working on similar objective .. i hope we could success soon

[luc2010]

Hello Clarence and All,

will be on home 10/01/17 so i can start in this B&L project again!

i email you a schematic asking if it good for charging a car batteries?

Thank You so much!!

Best Regards
luc2010

[vrand]

Hi Digits
here is a partial list of interested builders, the
fun begins now
jimboot
Forthebest
totoalas
a.king21
BobBrown
ZeroMassInertia
ewizard
Wistiti
wayne49s
masen
maxolous
cheors
Belangers
desa
Fjohnnyb
dielectric
sinergicus
OrthoParameter
shylo
MadMack
mobigozer
luc2010
JESUS PIŅA
tvka
djarno
jim glinski's Avatar
jim glinski
Mario
fer123
FRANKLIN
digits10
med.3012

Hi BroMikey & Clarence
You can add my name to the list above.
I've got my 2 toroid transformers from Bridgeport Magnetics, great service and only 1 week from order to front door; the 26 qty 5/8" 8 foot ground rods; 140 feet of #6 awg thhn wire; waiting on the 250v gdt and terminal blocks.

Thank you Clarence for sharing your design. Reading up on grounding systems and how to get the 0.39 ohm resistance. Eric Dollard got 0.1 to 0.01 ohm with 24 rods and 500 feet of silicon wire in a salt marsh on the San Andreas fault line in California and was pumping 500 amps into his ground system to communicate from Los Angeles to San Fransisco through the ground with no antenna.

Here is the Military Handbook on Grounding Basics for general info background.
Military Handbook, MIL-HDBK-419A, 29 DECEMBER 1987
MILITARY HANDBOOK
GROUNDING, BONDING, AND SHIELDING FOR ELECTRONIC EQUIPMENTS AND FACILITIES
VOLUME 1 OF 2 VOLUMES
BASIC THEORY

PDF Link:
https://www.google.com/url?sa=t&rct=...bPeY0-jZllr8Ew


Here is an interesting video on how to measure the ground rod resistance using 3 different methods:

Youtube link:
Grounding - Ground Resistance Measurement, 250.53(A)(2) (26min:27sec)
https://www.youtube.com/watch?v=Yg6G5VUSsWA

Thanks

[clarence]

Franklin - clarification

FRANKLIN

The two toroids are as shown in the thumbnail Attached.

THAT IS ALL THERE IS TO THEM _ PERIOD!!!!!

The other 14 WRAPS are made _ OVER _ the primaries of the toroids.

I really don't see what is so hard to understand about that.

EDIT: Go back to page 53 and post # 1570 - there are enough thumbnail photos there to satisfy ANYBODY!

Clarence

[FRANKLIN]

Wantomake,

I need to speak to you about our 660 turn toroid.
When I used the primary only toroids in series and then realized they needed
to have a full secondary also - namely a 330 turn primary AND a 330 turn secondary, I said "OH ****", that means that the B&L actual toroid WAS a
PRIMARY with a SECONDARY !
They wound the core with 330 turns ( A standard number for toroid transformers it seems ) on one side of the metal core and wound the other side with 330 turns also.!
It ALSO gave them the MAGNETIC FLUX separation I was looking for all this time! (SOB)
This makes our 660 turn toroid primary a blooper! (XXXX - XXXX - XXXX).
A real screw-up because it covers the WHOLE surface AREA!

Further research into the patent SAYS that their units can be made in a
SINGLE TOROID TRANSFORMER , or a SERIES DOUBLE TRANSFORMER,
or a TWO -SERIES DOUBLE TRANSFORMER, or a THREE-SERIES DOUBLE TRANSFORMER, or a FOUR-SERIES DOUBLE TRANSFORMER unit, depending on the CUSTOMERS POWER NEEDS!!!! (AMPERAGE NEEDED) !!
How about that!

As I said,I will be winding these two Toroids that I have to validate all this info.

Probably going to need several cups to wash this down!

Clarence

Clarence,
could you please tell me more about this

It means that the transformers have to have a primary coil and a secondary and also plus the blue wire with the 14 turns?
I ask this because I see the toroids from the bridgeport only have a primary coil, it means it is necessary to add a secondary of 330 turns?
thanks
