Greetings everyone!

I have been fascinated for years with Ed and the mystery of how he built the coral Castle, and like some of you, I'm sure, have always wondered why an "overunity" device was not possible.
I stumbled upon the Bedini devices, and further research led me here. It feels like I have found a new "Home".
My background is Machine tool design, and the garage is full of tools to where most devices on a smaller scale can be built here.
This device looks to be versatile and relatively easy to build, but the first question I'd like to ask is if there is a current parts list somewhere I haven't looked.
I've watched all the videos, and in addition from what I have gleaned reading this thread, I have the following list;

1-12 VDC fan with modified windings (done).
1-NPN3055 transistor (or the subs on IMHOTEP's drawing)
2-N4007 rectifier diodes
1-115 VAC neon lamp
1-1K audio taper pot
2-storage batteries

Radio Shack doesn't seem to carry all the parts anymore, so I'm hoping someone might help me out with some details.
Some folks in this thread are using 2-5K pots, and I would like a recommendation for a good starting point, and if a 10 or 15 turn pot is robust enough for the task considering the voltage in question. Should it be wire wound?

What type/voltage/Ah batteries would be a good starting point for this as well as other Bedini projects?

I have accounts with Mouser and some others, so if all the parts can be had from one source, that would save some shipping.

I am located in Southern California if any other members are interested.

Thanks for any help! I look forward to be a contributing member as time goes on.

Steve Wagner

[Pcurrius]

what can be done

Hello,

I will help as much as I can. The diode actually is 1N4007 and the transistor can be 2N3055 TIP31 or NTE36 any of those should work. The neon is optional, is there to see the spikes of the back EMF when you don't have the battery connected. The pot can be any and don't have to be wound. Also the battery can be ANY from 6 to 24V. Good start could be 12V 12Ah but as I said doesn't matter. Also you can try recharging some 1,5V cells.
The circuit is there to play, doesn't matter much with which components you're using, get what you can for the best price around you. Play around and get some results and share your new knowledge. Hope this helps.

Greetings everyone!

I have been fascinated for years with Ed and the mystery of how he built the coral Castle, and like some of you, I'm sure, have always wondered why an "overunity" device was not possible.
I stumbled upon the Bedini devices, and further research led me here. It feels like I have found a new "Home".
My background is Machine tool design, and the garage is full of tools to where most devices on a smaller scale can be built here.
This device looks to be versatile and relatively easy to build, but the first question I'd like to ask is if there is a current parts list somewhere I haven't looked.
I've watched all the videos, and in addition from what I have gleaned reading this thread, I have the following list;

1-12 VDC fan with modified windings (done).
1-NPN3055 transistor (or the subs on IMHOTEP's drawing)
2-N4007 rectifier diodes
1-115 VAC neon lamp
1-1K audio taper pot
2-storage batteries

Radio Shack doesn't seem to carry all the parts anymore, so I'm hoping someone might help me out with some details.
Some folks in this thread are using 2-5K pots, and I would like a recommendation for a good starting point, and if a 10 or 15 turn pot is robust enough for the task considering the voltage in question. Should it be wire wound?

What type/voltage/Ah batteries would be a good starting point for this as well as other Bedini projects?

I have accounts with Mouser and some others, so if all the parts can be had from one source, that would save some shipping.

I am located in Southern California if any other members are interested.

Thanks for any help! I look forward to be a contributing member as time goes on.

Steve Wagner

[Opteron_Man]

Hey all! I'm back after a semester of school!
I found this circuit on a free energy site. They claim that they tested it and it works, but I am not sure. It is solid state and it seems to do the same thing as imhoteps"s device. Today, I'd like to buy some parts to build, but I would like to know if i'm wasting my money.

I am new to this scene, so can someone explain to me what is happening?
So, the circuit works by using a tiny amount of juice fom the full battery as "seed" power and by swtiching with the transistor, extract power from the ether to charge up the dead battery?

Sounds good, but am I on the right track here folks?
Here is the diagram:
http://tinyurl.com/99utc7

I am working on a more advanced version that has a pot to adjust the frequency, has the neon bulb and a few volt meters to measure the batterys. In addition to the new features, I will add a few fuses.
But can anyone tell me if this circuit is good? The person on that site, said the trransformer was one from a modem card.

[Inquorate]

Rengaw and opteron

Check out the slayer007 pulse generator thread, there's a guy there who posted videos of a computer power box bedini fan who got it to self run. All the parts came from the pc power box..

[Rosphere]

Rosphere's Replication Results

I built and tested the Imhotep-Bedini SG Motor.

I have nearly twenty, nine-volt batteries at various stages of 'decay'. I numbered each battery, measured the voltage directly, measured the maximum voltage across a one-ohm resistor in parallel and called this the amperage, multiplied these two numbers together, (wattage,) for each battery, and recorded it all in a spreadsheet... yawn.


I selected the three most powerful batteries, (#11, #13, and #16,) and used these in series as the 'source' battery to charge my weakest battery, #17. (The fan would not spin with one or two source batteries alone.)

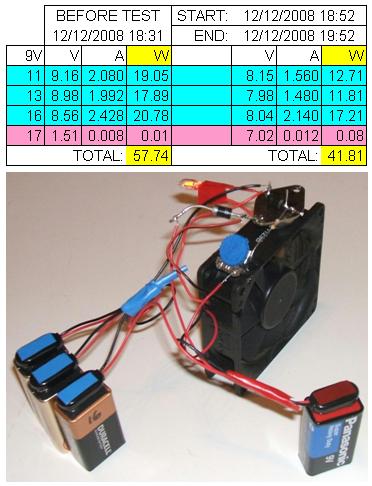

I ran the test for one hour and tested the same four batteries in the same way. My data is embedded in the image below.


I am wondering if scoping the operating frequency range and placing two caps 'somewhere' in the circuit designed to resonate with the two pairs of motor coils at that frequency would vastly improve the efficiency,... or not. Anyone ever try this?

[Joit]

HI and wellcome.

I play around with Caps at the Circuit,
and put a poled Cap between + and - from Batterie lets the Source run longer, and motor runs some smoother anyhow.
I got a slight bigger Motor, but from a Fan too, and it runs from a 9V Batt slow.

With the Pot you adjust allready the Frequency of both Coils, imho, by me both runs allways at the same Frequency.
At adjusting the Pot, when you turn it higher, it trows more Volt back, when you have set it to low, it eats more Amps from the Source, and make probatly a Short at the Source, when there is to much backflow to minus.

But i think anyway, your #17 is maybe to dead, to get a good load.
Dead Batteries at the Charge can make a sllight Short too for the Source, what will waste the Energie of the Source
For adjusting the Pot, its maybe the best, you get a bulb between C and E at the Transistor,
let the Fan get speed, and turn the Pot higher and lower, and watch, where the Bulb lights best.
On my other Motor, i have to turn the Pot higher, and when the Motor has speed, i can turn it a bit lower, the motor still keeps the Speed, but its closer at the higher Amp draw.
John Bedini says, you need to adjust the Pot to highest Rpm and lowest Amp draw.
But maybe you replace your chargebatt for an other, some are hard to load, and i think even normal Batteries have her limits at loading, when something makes inside a Short.

[DadHav]

Hello Imhotec. I've built and experimented with a small monopole. After seeing the fan video and information I decided to try a slightly different version. First off let me mention that I design brushless motors for R/C aircraft. This being said I have a bushel basket full of parts from office machines that might work successfully. Some of the stators from these motors are as big as 80 mm diameter and the magnets inside the flux ring are 8 poles. OK I wrapped one leg of the 12 leg stator with a bifiler wind. I was able to get only 150 turns to fit on the leg, but that was enough. My trigger circuit did not require an additional resistor. The motor ran smooth but a little slow. I removed the magnets and replaced them with 4 neo's. The motor runs extremely smooth and produces a 200 volt charge on a capacitor. I would like to try utilizing some of the other legs of the 12 leg stator. I'm wondering if I should try putting the other windings in parallel or winding them in series. I would likely try 4 coils. This would give me a 600 turn configuration with the legs being 90 degrees appart. Much like a fan motor. I'm thinking, since I already have one leg wound with a trigger coil, I may not need to duplicate the trigger on the other 3 legs. Do you think I might be on the right track? I think the output from this type motor is much higher than the standard monopole. If I'm able to optimize the use of the hardware configuration, I'll post some test results.
John

[DadHav]

Fan Magnets

Just a quick thought. If the fan motors are running with a flux ring of bipolar magnets what's happening when the south pole crosses the field coil and core? A revers polarity EMF? If a bridge rectifier was substituted for a standard diode, could it customize the charge cycle to include an additional pulse from the non used south pole magnet? OK, Or what if one of the four legs had a bifiler wind and the one 180 degrees opposite with or without. The other two legs could be wound as a separate standard charging circuit with a bridge, or maybe reverse wound and triggered on the south side magnet.
John

[Bonz]

hey Imhotep, and others that could help

I found your tutorial for how to build a Bedini motor out of a computer fan and well I have about 200 of them at my house so I decided that was a good place to start.. I don't know if i just didn't understand the tutorial correct but i think i wired something wrong and I can't seem to get it to work. So I would like to submit 3 photos to you in hopes that you may see what my problem is. I don't have any batteries that could be used for this so I am using 2 things to check for power one is a car battery charger putting out12v the other is a computers power supply that I can get a 5v and a 12v line out of neither one will fire up the electro magnet with the circuit complete but it will fire it up with the power connected to just the 4 wires running off the coil. my coil has 2 different colors of wires on it that I am guessing represent the 2 different gauges of wire (not sure what one is what) but in my photos the coil 1 + and - are coming off each end of the darker red wire and the coil 2 + and - are coming off each end of the lighter copper wire.

I think I have the wiring right for this but it's not firing any help would be great.... oh and I do not have a charge battery at this point as I don't have any batteries right now I don't know if that could be the cause

Bonz

Figure 1.JPG

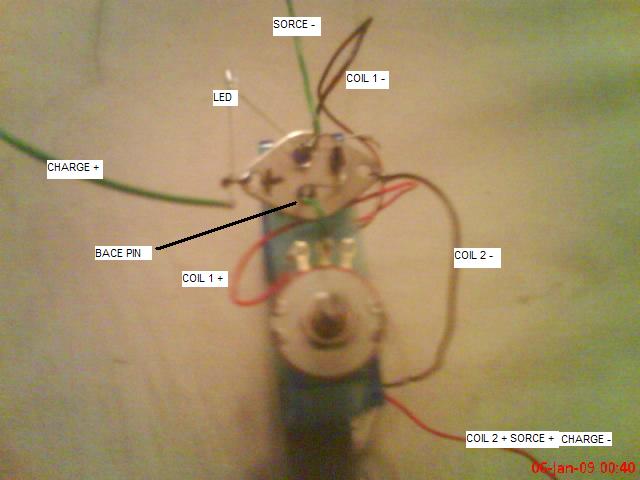

Figure 2.JPG

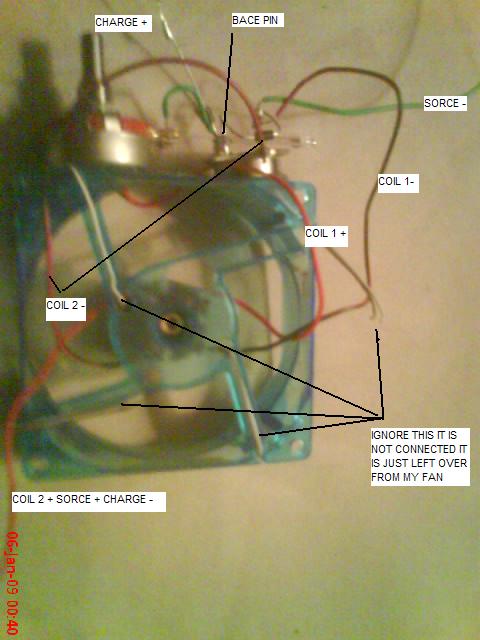

Figure 3.JPG

[sigzidfit]

Bonz,

Don't know whats up with your fan, but I just built one of these things too.

The photos werent really good enough resolution for me to make much out of them. But I'd say be sure you don't have a diode backwards.

As far as the different color wires on the stator goes I just assumed that the darker wire was one coil and the lighter colored wire was the second coil.

Mine runs but I'm not seeing much happening at the charge battery. Nothing dramatic anyway.

Peace
PJ

[ren]

Just a quick thought. If the fan motors are running with a flux ring of bipolar magnets what's happening when the south pole crosses the field coil and core? A revers polarity EMF? If a bridge rectifier was substituted for a standard diode, could it customize the charge cycle to include an additional pulse from the non used south pole magnet? OK, Or what if one of the four legs had a bifiler wind and the one 180 degrees opposite with or without. The other two legs could be wound as a separate standard charging circuit with a bridge, or maybe reverse wound and triggered on the south side magnet.
John

John you could try that out if you like. I believe you have the little brushless motor rewired yes? She is a beaut. You could try all kinds of phase experiments with that one.

[Bonz]

Bonz,

Don't know whats up with your fan, but I just built one of these things too.

The photos werent really good enough resolution for me to make much out of them. But I'd say be sure you don't have a diode backwards.

As far as the different color wires on the stator goes I just assumed that the darker wire was one coil and the lighter colored wire was the second coil.

Mine runs but I'm not seeing much happening at the charge battery. Nothing dramatic anyway.

Peace
PJ

here's the part that i find odd with everything disconnected and just the 4 wires running out of the fan i can't actually get the fan to run it just fires up one side and i get no spin i have tried many ways to get it to spin but nothing could it be that my fan is just broken... i will be checking to see if my diodes are correct but i believe the white strip is in the same location as it is in the vid

[slayer007]

@Bonz

Do you have a meter to check your continuity?
If you do check both coils to make sure you dont have a broken wire and to find the right ends for your coil.

Then wire it up agine and if it still dont work switch the wires around going to the coils.
Only change one set at a time or one side of the coil.
Then try it if that dont work put it back the way it was and then change the other wires around.

[mrbreau]

It looks like.....

...You have the coils wired OPPOSITE each other to me. It took me quite a while to figure this thing out too and I did a LOT of research on it, a lot of research. I destroyed five or six fans in the process. In Imhotep's drawing I finally saw that the coils HAVE TO BE WIRED NEXT TO EACH OTHER.

There is good reason for this too. There are TWO NORTHS AND TWO SOUTHS IN MOST OF THESE FAN'S MAGNET RINGS. Some fans have one north and one south only and they will run but slow. There are more surprises but you'll have to discover them for yourself.

The first one is ALWAYS the hard one.

I hope that what I THOUGHT I SAW is actually what I DID SEE and it helps out some.

Warren
..

[ahausurf]

crying of happines

guys afther one weeck working on it, since i know about this kine os proyects and hear about nicola tesla, i hve practicaly sleep , and today just the day that i be able to post and check out your pictures, i have undestand where i was worg, o my good this is un momento historico that i ´ll keep on my hard its spining at last.
thak so much guys, Shiva Imhotep i got no words on english


i´m an artist, so for mi this was a kine of triky , diods, resistences however you guys do it easy
, i´m so happy now hahahaha lather i´ll post pictures of mine, and i got few questions
o my god you make me so happy , love you guys

gretting from spain and sorry for my bad english
