Pendulum SG

[N O G]

Has anyone else built and experimented with a pendulum SG (its an interesting way cause gravitys helping the process )

[Aaron]

Pendulum SG

I've tried a few variations with different mods to the circuit.

The first one I did about 7 years ago wasn't really a 'pendulum'...I simply had 1 single magnet on my 10 speed wheel motor with a trifilar. It rocked back and forth and went higher each time then of course, made it over the top and went round and round in a circle. It actually has some pendulum effect since it is off balance so gravity does help give it some asymmetrical push on the way down.

It worked but was slow charging and I never measured the efficiency.

I did a few others but didn't test them out very long.

[N O G]

pendulum trials

In the set up im trialing i have three magnets on the pendulum about 2 inchs gap between them(three pulses) then i have adjustable rubber stoppers that limit its swing so the pendulum swings with small rapid swings bouncing off each side. This is a way to speed the process and still use gravity.On holidays at the moment away from home but when im back im replacing the rubber stoppers with something to add to the system(got a few ideas so far)

[deggers]

Old Thread

Peter Lindemann talked about some the "issues" of the Bedini Pendulum in this older thread.

http://www.energeticforum.com/renewa...lum.html#links

Duane

[N O G]

Some pitures of a pendulum

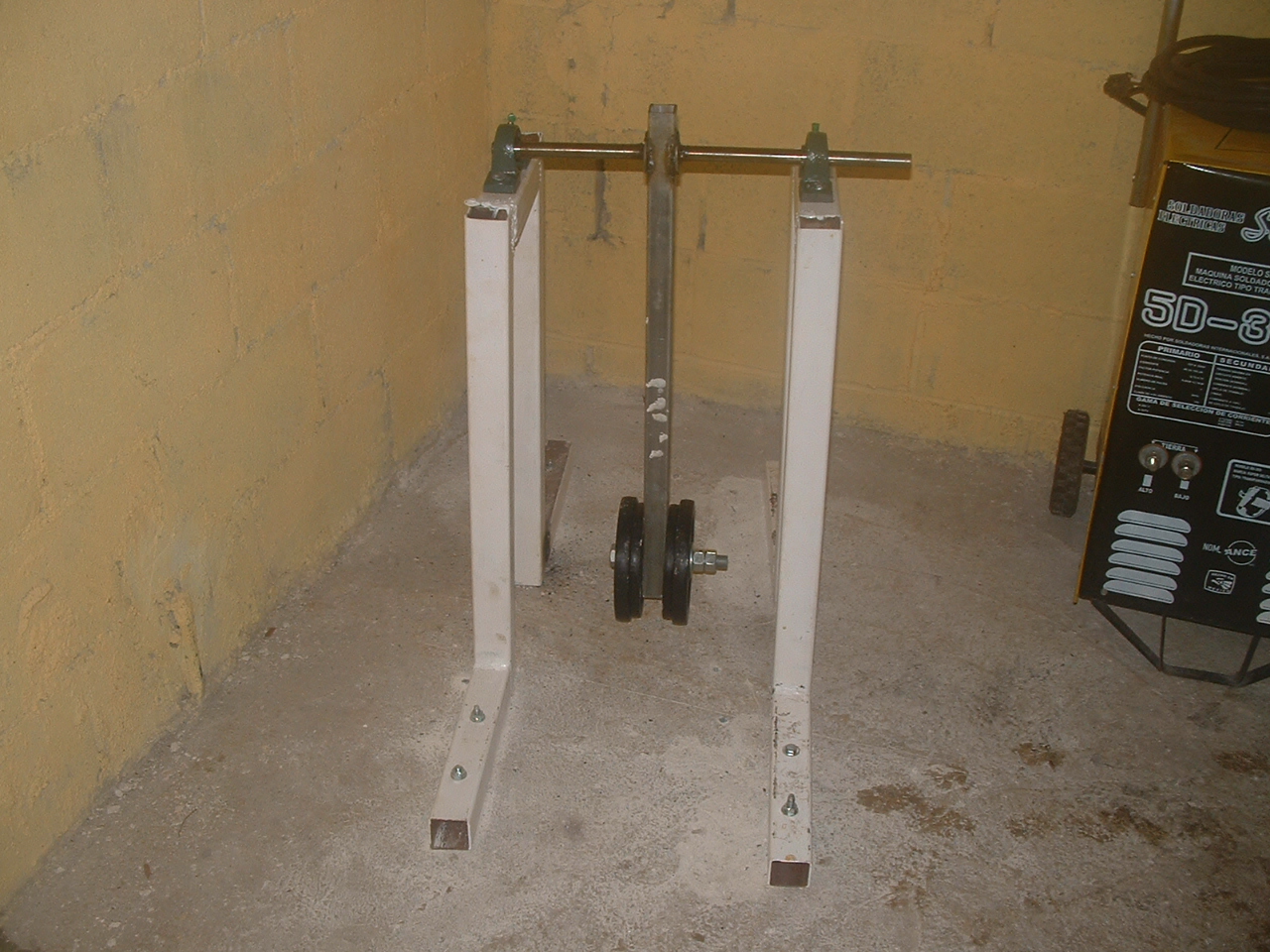

Hi, there just showing the pendulum i built a while ago . This is just for extra testing im doing with different setups (havent enough serious results to post them yet).

[robur]

pendium

i have a friend who designed what looks like a good pendium design.

but i still have not translated his spanish documents

[linesrg]

Peter Lindemann's Post

Guys,

We need to pay heed to the observations PL made with regards to the long term effects of the pendulum. I have only spoken directly with Peter on one occasion and he mentioned a device which had achieved a COP=60 (although he didn't mention at that time it had been the pendulum and this was before JB revealed it through the EFTV DVD).

The pendulum is interesting in one respect but the impact it had on batteries in the longer term can't be ignored either.

It is interesting to build one and quite therapeutic to watch it swinging back and forth but is it going to deliver the goods?

Like a lot of JB's stuff it would be interesting to see what would happen if these things were built on a grander scale - having said this if I recall my telecon with Peter correctly it was the smallest device which had the best COP.

Regards

Richard

[StevanC]

I did made a "pendulum" on a QUadfila coil with a modded SSG.

[FrozenWaterLab]

Cloudseeders Gravity wheel

I post this to keep all informed on other info
In June 2009 was the date of the drawing below. The picture is dated (old) because recently I have made 5 important additional changes to the simple design. Gravity is in motion, still in the back field, perhaps looking stalled but I assure you, it is not. The changes take it from being a mere spinning children's toy to being a home generator-spinning workhorse.

GO HERE FOR DIAGRAM
http://www.energeticforum.com/renewa...html#post70979

Pendulums are at a severe disadvantage because they are anchored in one spot. One change I've made is to make a slide, so that the weight begins sliding before passing 12 o'clock => imparting into the weight some forward motion building long before it enters into being a swinging motion hammer. Just like I posted months ago on the other CloudSeeder on Fire thread => like a Tilt-A-Whirl action, except instead of horizontal it is vertical. With Gravity Wheels you have to locate & use every edge you can creak out. The drawing above even w/out the 5 improvements came very close to continuous spin.
....

[aguy]

pendulum ssg

a pendulum ssg will kill bat
guyzzemf -Y/T
