  • Hi Gyula

    Just a few answers...

    I have some to247 mosfets rated 40 amps and 300 volts with fast response time and only .040 ohms on resistance that I will try.

    The motor runs at 2200 rpm when loaded.

    My next version of this motor will be equipped with a modified version of the timing device I showed on post #1472 . It will be easier to adjust the width of the pulse with it. The sensors will have to be 120 degrees apart but the result will be the same.

    The inductance of the coils varies with the position of the rotor from 1.5 to 4 millihenry.
    And by the way, I studied and experimented electronics a lot but as for magnetism, I learn along the way with people like you. So do not assume that I know things .

    Thank you again for your input.

    Robert

    Comment


    • Hi Robert,

      I have had a look at your drawing on the timing device attached to post #1472. Very good solution to make the pulse width adjustable.

      Well, the changing inductance as per the rotor position could be reduced or almost eliminated by an oblong - like rotor shape as for instance Jim Murray showed in his patent or in his recent lecture but this would require a redesign of your motor, unfortunately.
      Otherwise you can consider the L value as taking the 'middle' of the lower and upper limits i.e. (4-1.5)= 2.5 mH or so when the L/R time constant is to be calculated.

      Your MOSFETs with 40 mOhm ON resistance and 300V drain voltage ratings sounds good indeed, hopefully the peak drain voltage will not go higher than 300V in your motor circuits. Otherwise you would need to use higher drain voltage rated types connected parallel with each other to reduce the higher ON resistance inherent with the high voltage MOSFET types.

      My opinion is that you do know things because your motor setup proves it and of course we all learn here (or on other forums) from others willing to share. I wish more people would come and share but 'some hunger for money' may influence this too much.

      Thanks for the answers.

      Gyula

      Comment


      • Thanks to all and especially Mr.Lindemann,one off the best Threads i ever red.
        Please can you tell us what simmulation programm you use.Jim Murray uses Femm 2D and you said you have a 3D programm.
        Thanks
        Oliver

        Comment


        • Originally posted by forelle View Post
          Thanks to all and especially Mr.Lindemann,one off the best Threads i ever red.
          Please can you tell us what simmulation programm you use.Jim Murray uses Femm 2D and you said you have a 3D programm.
          Thanks
          Oliver
          Sorry,I mean David Squires not Jim Murray.

          Comment


          • advise

            hi
            I have joined this forum.
            and have been reading articles on the bedini motor. what i am looking for is advise. What i am looking for a motor design (bedini?) which can drive a generator.
            I am hoping that you or anyone that reads this also can point me in the right direction etc.
            thanks whitmore

            Comment


            • Hi Whitmore

              Personally, if I were driving a generator I would probably use a Tesla blade-less Turbine and run it on Natural Gas.

              Other types of generators are available, like the bloom box.

              Bloom Energy Server - Wikipedia, the free encyclopedia

              Google uses it

              Of course it does depend on the power you were trying to generate. If it is just for small lamps or the like, then a Bedini setup may work ok. The Bedini system seems to occupy a lot of space for the power it produces.

              Harvey
              "Amy Pond, there is something you need to understand, and someday your life may depend on it: I am definitely a madman with a box." ~The Doctor

              Comment


              • Happy new year everyone.
                May your motor ouput be ten times your input!!!



                Robert

                Comment


                • Originally posted by Jetijs View Post
                  Ok, here is the exact circuit:

                  all the diodes are rated 1000V and 4A and all the resistors are 2w.

                  Before removing 50 turns of wire I made another test, just to be sure. This time I used digital amp meter. Here are the results:

                  Transistors Current Voltage RPM
                  1 transistor 0,44A 24V 450
                  2 transistor 0,44A 24V 481
                  3 transistor 0,45A 24V 486

                  And these are the results when the 50 turns were removed:

                  Transistors Current Voltage RPM
                  1 transistor 0,55A 24V 463
                  2 transistor 0,56A 24V 562
                  3 transistor 0,56A 24V 572

                  Just saw the information in your edited post about the reducing the resistance of the optotrigger voltage divider. I think that you are right about that one of the transistors may not open fully, because when I try to run the motor with only one transistor I see a difference in performance compared with other two ransistors. I try them all out one after another. That means one of them does not fully open.
                  I will try to reduce the resistance as you told and post the results then

                  Edit:
                  One of the NPN's keeps blowing. I already replaced it 3 times. It always blows when I run the motor only with that one transistor and that happens on the very first impulse. There is a flash in the neon bulb acros the collector and the emitter of that transistor and the motor stops. One time the transistor blew so that it was constantly on, drawing 1.5A from the battery, other two blew with a little click sound and just stopped responding, when I removed them, I could measure a resistance of 460 Ohms between collector and base that is not there on a new transistor. I double checked the circuit and can not see why that happens, everything seems to be exactly like in the circuit above. Also that transistor does not blow when I run the motor with all thre coil strands and all three transistors. I will resolder everything on a new plate tomorrow and try it again as it is already late today.

                  Thanks
                  Hello Jetijs
                  Please can you post a picture of your circuit,this one i cannot open.
                  Thank you

                  Comment


                  • Originally posted by whitmore View Post
                    hi
                    I have joined this forum.
                    and have been reading articles on the bedini motor. what i am looking for is advise. What i am looking for a motor design (bedini?) which can drive a generator.
                    I am hoping that you or anyone that reads this also can point me in the right direction etc.
                    thanks whitmore
                    Hello
                    This is the right thread for a motor to drive a generator.You will barley find an other Motor wich is so efficient and "relative" easy to build.
                    SSG(Bedini) type devices are not motors,but energizers.You have max.23% power on the shaft compared to the input.

                    Comment


                    • Hi guys.

                      I have a new attraction motor coming soon.
                      I modified a 2hp ac motor. My other motor was too small and the stator got saturated with magnetism.

                      The new motor weighs about 30 pounds compared to the 5 pounds of the older one. It will be driven with 18 pulses per rotation.It has 9 sets of two coils in series. Unlike the other one this motor has no dead time: there's always current flowing into it because the pulses are overlapping.
                      It should also run on lower voltage and be very strong.
                      As soon as I have it completed, I will share the diagrams and results.

                      Wish me luck

                      Robert

                      Comment


                      • Originally posted by Robert49 View Post
                        As soon as I have it completed, I will share the diagrams and results.

                        Wish me luck

                        Robert
                        Good Luck Robert49,

                        Michel
                        http://www.youtube.com/watch?v=jeYscnFpEyA

                        Comment


                        • Update

                          Hi guys

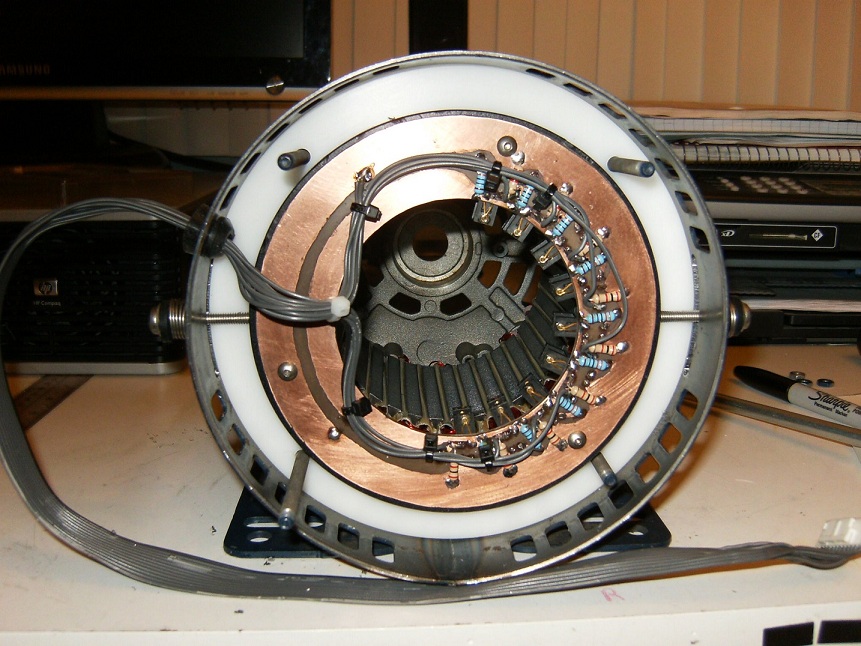

                          This is my new attraction motor.
                          No extensive tests done yet. Just wanted you to see what it looks like.


                          Robert
                          Attached Files
                          Last edited by Robert49; 09-25-2014, 11:46 AM. Reason: need space

                          Comment


                          • Robert: Thanks so much for sharing, that's really beautiful!

                            Comment


                            • Hi guys

                              Here is a schematic of the motor .
                              I ran the motor with V1=100volt A1= 1amp
                              V2 to ground was 192 volt
                              V3 across the bulb was 96volt
                              A2 was 1.25amp
                              Wich means the input was 100v x 1a= 100 watts
                              and the bulb was getting 96v x 1.25a = 120 watts
                              The motor is turning at 3000rpm.
                              By the way I changed my timing wheel so now I still have a 5 degrees dead time between pulses.

                              What is your take on this ?



                              Robert
                              Last edited by Robert49; 05-01-2014, 09:11 AM. Reason: Correcting an error

                              Comment


                              • Awesome Work!!!

                                Originally posted by Robert49 View Post
                                Hi guys

                                Here is a schematic of the motor .
                                I ran the motor with V1=100volt A1= 1amp
                                V2 to ground was 192 volt
                                V3 across the bulb was 96volt
                                A2 was 1.25amp
                                Which means the input was 100v x 1a= 100 watts
                                and the bulb was getting 96v x 1.25a = 120 watts
                                The motor is turning at 3000rpm.
                                By the way I changed my timing wheel so now I still have a 5 degrees dead time between pulses.

                                What is your take on this ?

                                Robert
                                Robert,

                                Your motor is beautiful and your preliminary numbers are excellent. The difference between the input and the recovery is probably a "duty cycle" measurement which isn't precise yet. In general, your recovered electricity could be as high as 60% of the input, depending on circuit losses and the change of inductance between charge and discharge of the coils. If your mechanical power characteristics at 3000 rpm are even .10 hp, your over all performance could be approaching a COP = 1.5 or better. If the recovered electricity is higher than 60% and the mechanical energy produced is higher than .10 hp, then all the better!! With 18 power strokes per revolution, the motor should have pretty good torque and power curves. Well done!

                                As I said before.....AWESOME WORK!!!

                                Peter
