Greetings. I enjoyed building your latest relay charger. The output is a bit scawwwy...

My real question is this. Is this circuit (or similar) already "sending" a resonant wave organizing potential... field sized based on its relative input strength... possibly setting up a send-catch situation with an identical opposite (mirror coil) circuit. I seem to remember tidbits about Tesla's sending and receiving system... it required some form of powered resonance (or whatever it is), to be caught by a properly tuned mirror image circuit (wirelessly).

A few weeks ago I was watching a youtube that was demonstrating a radiant energy circuit. It used an automotive coil and basically the same concept that you had introduced earlier. What I found interesting about his demonstration was that his oscilliscope was producing readings of the wave, without being connected (to the circuit). Then just yesterday, I noticed that my little $25 digi meter was giving voltage readings laying on top (the case) of some wires going to a hobby motor that I was testing.

Have you done any experimental test setups like this? You are getting awfully good at the sending part...






Note1: "The team used two copper coils. The sending coil gave off a non-radiative magnetic field oscillating at megahertz frequencies that resonated in unison with the receiving coil. The coils exchanged energy solely with each other, and any power not picked up by the receiving coil remained bound to the area of the sending coil. Power didn't radiate into the environment, and objects placed between the coils didn't hamper the energy transfer."

Note2: Remember the use of a radio to "tune" a system? Obviously RF is emitted during the operation of a resonant circuit (in some cases). I tested a PC fan charger and found the RF field to be two feet or less from the circuit. Most RF seemed to be coming from the Battery Terminals, then the Transistor and lastly the Fan Coils. Interestingly enough, when testing your "new" relay setup, RF was detected up to 40 feet from the circuit! Could this phenomena be relevant?

[byjoveoldchap]

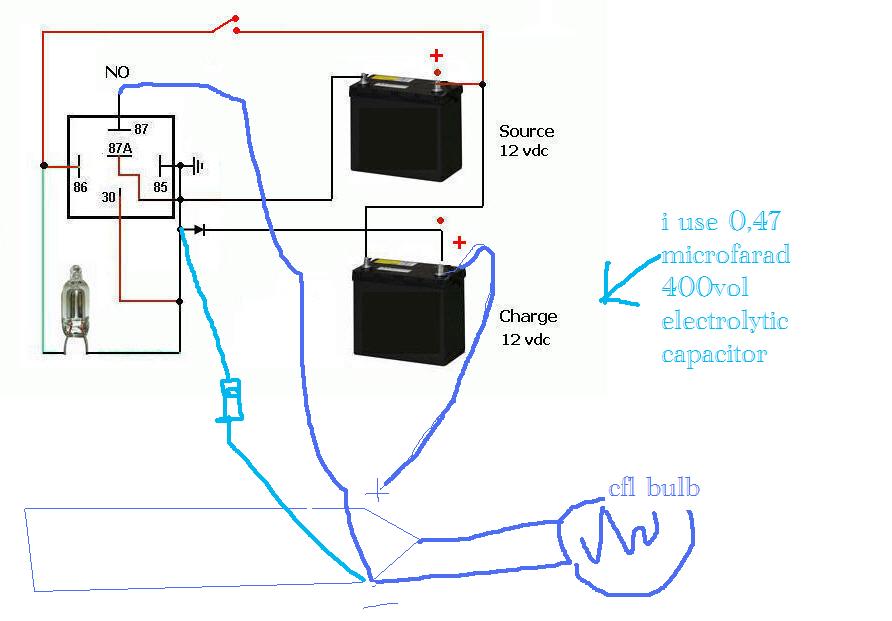

Here is the CFL circuit diagram that I added to the relay charger and how I modified the Radio Shack relay to make it work. It is a 4 battery system (2 source & 2 charge). It would be nice if we could figure out a way to make it just 2 batteries.

Lidmotor

errr... bought a new camera have we Saint Lid?
Very good, superb photo's and a nice clear circuit

gnino

carmine - well said

Gauss very deep thinking and it fits in well with Bedini's remarks!

Agongon good circuit and info on the relay,thanks!

[theremart]

On my 3rd Relay charger...

Finished the third one today.

The first one hooked up to two of my 12 amp hour 12V batteries,
Primary Secondary
13.25 13.40 Start
13.09 13.69 12 hours later
12.89 13.75 after 24 hours

Nice!


The second one I hooked up to solar cell with a weak battery. I am hooking this up to a solar cell connected to a very weak nicad battery, it is running the relay, and i think this will go 24/7 so will condition the bad battery I have and see what happens with it after 2 weeks.


The third one I built I hooked up to the windmill generator on my old SSG. What I love about this is since it oscillates, it does not put hardly any load on the windmill coils, and the out put is charging another 12V 12amp hour battery.


I tried this at 24V on my semi batteries and it did charge nicely for a while, and drew next to nothing. But... it only got the batteries up to a point of around 12V and then stopped. I am thinking that I would need another type of relay for these, or maybe multiple relays.

It is so nice to be able to disconnect the charge battery and not worry about a transistor. It is worth the effort to mute these with a towel as they give and give and give.

I am shocked at the charge rate!

[**~Imhotep~**]

Here's my interpretation. Open for correction. As usual, my gratitude to Imhotep and to everyone here.
87a terminal of the relay is Normally Close [ N.C.] contact. 87 is Normally Open [ N.O. ]

Additional info:--> YouTube - Free Energy How-to Single Relay Radiant Charger

To watch the video clearly, add this in the url--> &fmt=18

5-pin Bosch 12vdc relay--> Lighting



.

Excellent job cleaning up the schematic. With your permission I would like to add it to the FAQ at Imhotep's Laboratory | Renewable Energy



Great job everybody. Im very impressed with the adaptations that are already appearing. Lidmotor did an excellent job expanding and adapting as usual. i never thought to even try it on the cfl.

I do want to spread a word of warning the back rush of energy is much stronger than that of the fan or the IROL, so please exercise caution. It will give you a good buzz. Keep up the great work

[gnino]

Here is the CFL circuit diagram that I added to the relay charger and how I modified the Radio Shack relay to make it work. It is a 4 battery system (2 source & 2 charge). It would be nice if we could figure out a way to make it just 2 batteries.

Lidmotor

with me work this

[nat1971a]

Many thanks to BRADEN, GAUSS and DAVIDE for providing some areas for further research!!!

[Guest]

Thanks, about the lighting og bulbs please read the Meyl book about Scalar waves and you will know what to do with your receiver bulbs, he explains very clearly how to trigger the neutrinos into releasing electrons and get that familiar crackling noise when that is happening(compare with strike of lightning). Check the dielectric properties of your bulb.

Please check out these videos: Meyl - Scalarwave-Technology - The european website of www.k-meyl.de


Another thing he explains is the golden ratio of 1,6 that all vortices use. There are maybe 30 key facts that you need to understand to build a perfect free energy device, when you have all of them you can do anything. Just imitate nature nothing else. Photosyntesis also triggers the neutrino into releasing an electron. It is all out there. Applause to Meyl, he is an unknown giant of theory and practice.

[nat1971a]

For further research into spheres

"the work of hertz" p14 advises that their theory has been worked out by horace lamb and j.j thomson.

I had a quick look on the net...but didnt find much

It's probably there just need to find it

[Agongon]

" Excellent job cleaning up the schematic. With your permission I would like to add it to the FAQ at Imhotep's Laboratory | Renewable Energy "

**~Imhotep~** : Go ahead. You're an inspiration.

byjoveoldchap : You're welcome. Good to see you around always bringing something.
and Dear byjoveoldchap, i remember something which uses a relay http://www.energeticforum.com/renewa...html#post30035


.

[DavidE]

Resonant Field

YouTube - Re: Resonance....it fills local space!

[byjoveoldchap]

i remember something which uses a relay

and Dear byjoveoldchap, i remember something which uses a relay http://www.energeticforum.com/renewa...html#post30035


.

Wow... I missed that! Well spotted - I'd love to hear him succeed

[Bodkins]

In my last video I lit a bulb form the energy transmitted from the spiral bulb, I had a receiver in the copper wire but the energy in the wire increased if I connected another receiver. In the Borderland film they used bulbs to transmit energy not spheres. If I was to tune the receiver to the transmitter I should be pulling loads of energy into the receiver?
What do you think ?

[DavidE]

Hmmm.

Bodkins

In my last video I lit a bulb form the energy transmitted from the spiral bulb, I had a receiver in the copper wire but the energy in the wire increased if I connected another receiver. In the Borderland film they used bulbs to transmit energy not spheres. If I was to tune the receiver to the transmitter I should be pulling loads of energy into the receiver.
What do you think folks?

Two bulbs (Argon on top?) and the test bulbs (below apparatus).

In the longitudinal wave demonstration they charged a capacitor from the 'near field' of the bulb. When they put their hand near the bulb they felt force 'pushing away' from the bulb... but in the 'hanging copper strip test' the bulb appeared to have a magnetic effect and attracted the copper.

Your copper wire seems to be collecting residual potential around the bulb (I speculate moving to the bulb). Somewhere I read and I believe that I quoted a source of how voracious hv can be when passes through a gas (fluorescent bulb). They made it sound like it was a potential 'sink' or even having a 'magnetic attractive appetite.'

I used to know a girl that had that quality. It didn't take long, she shorted me out.

[braden]

Re tesla and radiant energy patents explained

I think all those interested in taking their understanding to the next level should watch this video,
Eric Dollard - Google Video

[esaruoho]

I think all those interested in taking their understanding to the next level should watch this video,
Eric Dollard - Google Video

and its followup:
Eric Dollard : Tesla Transverse and Longitudinal Electric Waves
