Here's the major issue I have with the radiant outputs Ive seen so far:

1. It still shocks
2. Smell burning skin like high-freq rf.

What was Gray doing to get this non-shocking cool electric effect?? I think it involved a static field somehow. Either by combining static with conventional HV or getting it to actually flow someway.

It only shocks if the impulse is too slow... you can have a 1hz frequency not shock you if the impulse that happens at 1hz happens at the low microsecond range.

So a 6khz EMS Inverter could have impulses that are 1 microsecond or less..how? I'm not sure but it is possible. That would be totally cold and non-shockable.

So the frequency is different that the speed of the impulses themselves. I guess you could say as long as the duty cycle is small enough, you can have the cold effect at any frequency.

[martin]

@ nat1971a

When I get everything set back up I'll video that. I mistakenly found this out after I made the video. The bulbs arent all that bright, but the effect is there. Im guessing only about 2 feet or so.

@ Aaron

Yes, I too have thought this and am writing a program for a microcontroller to adjust the overall frequency and pulse width as well. Generally in conventional electronics, the more narrow the pulse width the less power output you get, so then you increase the freq, and then decrease the pulse width... and so on. However with everything that's been discussed so far, Im afraid that just adjusting the pulse width wont produce much power out. I think if we figure out how to interrupt the pulses so that they're say in the 1 microsecond range, then we may have something.

[Aaron]

short impulse power supply

I think if we figure out how to interrupt the pulses so that they're say in the 1 microsecond range, then we may have something.

Right, this isn't an issue with the caps but how to do this with any kind of variation of an ignition coil on the front end...I'd like to see this in a compact version with off the shelf parts.

It is speculation at this point that Gray was having these short of impulses and we know that we can get a good radiant charge with impulses that aren't that short.

But even with shorter pulse width at high frequency, power output goes down but we only want the potential anyway...just to tickle the cap with potential impulses without transferring power.

[Electrotek]

Aaron: I think you're on the right track. If I remember correctly, Gray said "What we're doing is sending two micro second pulses through the motor, one behind the other".

And potential only may be what he meant by static. Ie, no current.

[nat1971a]

ok i just had a quick flick throught the cited references on grays patent 4661747

and found one for a thyratron

[nat1971a]

Just ordered a russian thyratron for $10USD to try out.....

[Aaron]

two pulses

Aaron: I think you're on the right track. If I remember correctly, Gray said "What we're doing is sending two micro second pulses through the motor, one behind the other".

And potential only may be what he meant by static. Ie, no current.

The ignition coil lv source discharges fast directly after the hv pulse...could be viewed as two right after another and it might be that simple in the Gray motor. The hv coming off the ignition coil sure doesn't do anything to charge a coil with any real magnetic field but with the diode type effect, there is definitely a synergy that allows the hv to contribute in a big way.

[Aaron]

modified ignition coil

I think Mark posted this originally somewhere. I'm guessing this is something Mark made. This is the other option to reduce the voltage coming off the secondary I believe since it uses half of the primary at a time and increase the frequency. But what chopped it to get 6khz?

Photo #4
Example of Modified Ignition coil with Retro-fitted Center Tapped Primary

· How can a mechanical type vibrator achieve a switching frequency of 6 KHz when common tube type car radio vibrators only go to about 200Hz8 (and those were quickly replaced by transistors in 1958)?

[Aaron]

micro second pulses

In one of the old articles, it says "the motor creates power surges one right after another in micro-seconds." They say this directs the magnetic flux field...used for cooling. That is from the article "Engine Runs Itself" - it is on Peter's page.

That could mean that the event may not necessarily be 2 pulses but just that all the pulses are one right after another and they are microseconds short. I think this is definitely the capacitance discharges and not the operation of the power supply.

[martin]

I think Mark posted this originally somewhere. I'm guessing this is something Mark made. This is the other option to reduce the voltage coming off the secondary I believe since it uses half of the primary at a time and increase the frequency. But what chopped it to get 6khz?

Photo #4
Example of Modified Ignition coil with Retro-fitted Center Tapped Primary

· How can a mechanical type vibrator achieve a switching frequency of 6 KHz when common tube type car radio vibrators only go to about 200Hz8 (and those were quickly replaced by transistors in 1958)?

Any time I design a switching power supply for my custom car audio, I center tap the primary like Gray did in his schematic and that's what it looks like from that picture. According to the way the schematic is drawn and what I do when I build one, 12v gets fired from say top winding (outside) to the center tap (ground). That gives a rising and then falling output (ie 0 - 12 -0) on the secondary step-up. However, when you fire the 12v on the other winding (outside) to ground, it gives an inverted pulse on the output, falling then rising (0 - -12 - 0). This actually doubles your total voltage swing out vs just using a single primary winding. Just about all high end car audio amp power supply's opperate this way.

[martin]

Whether he increased the voltage out or decreased it would depend on if mallory either just center tapped the primary or added a extra windings and center tapped them. I do know this, I really have to protect the switching mosfets from voltage spikes when running in this configuration. They will fry in a heartbeat. My supplies and generally amp manufactures' run these around 20kHz PWM regulated. If you "mismatch" the primary with the frequency of the switches, you get major over voltage problems! This could be part of our solution! Im so stupid, overlooking this for so long when it was right in front of me. I cant tell you how long it took me to figure out how to keep those FET's from over heating.

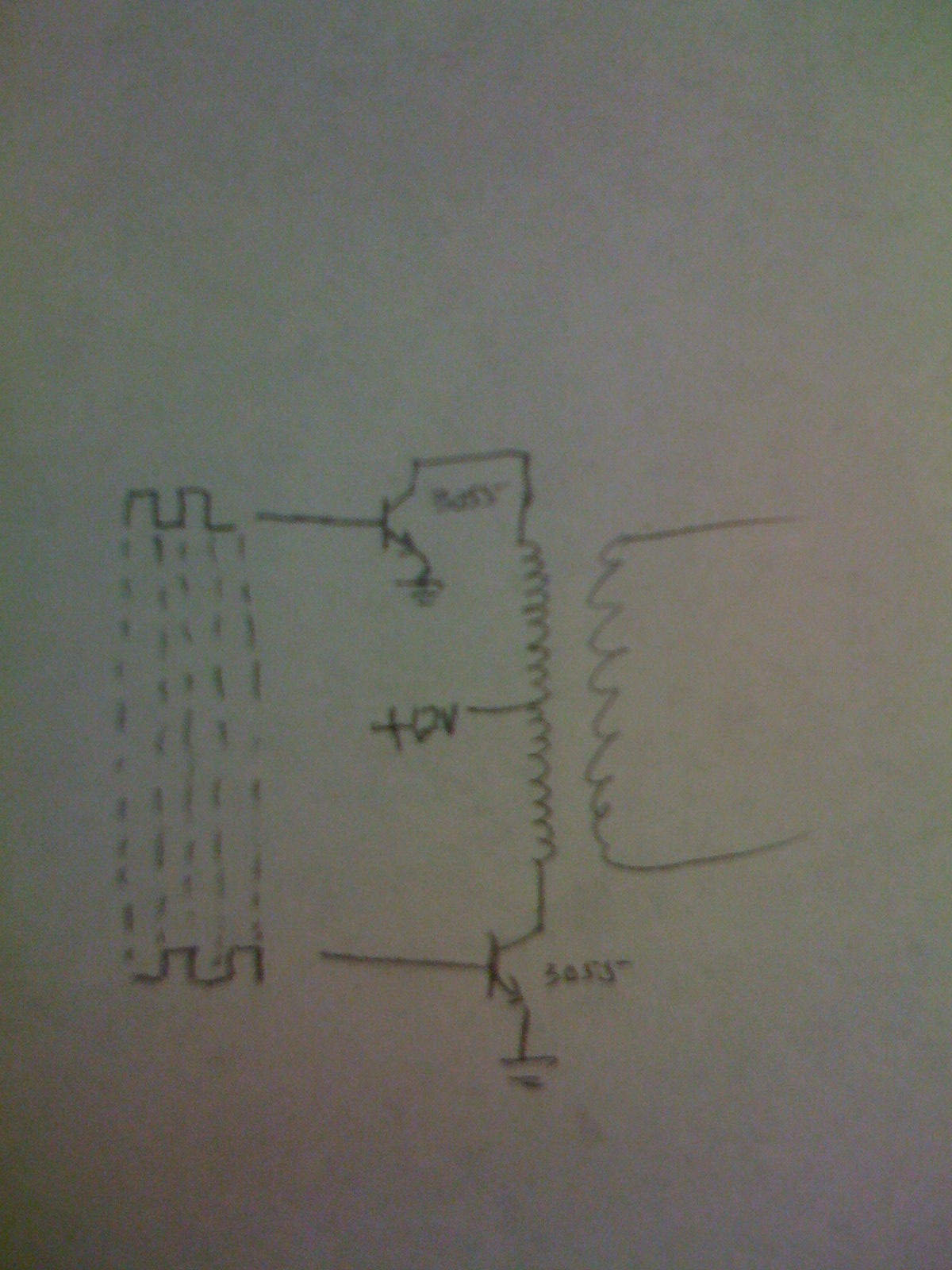

This diagram is the basic idea. Mine uses a medium toroid core (about 1.5 - 2" OD), bifilar wound center tapped primary. For experiments, try starting with around 20 turns and running around 4-8kHz. I'll bet you'll get so many voltage spikes it wont even be funny. Be careful though, the FET's or transistors WILL overheat!

Now that I think about it even further, didnt Gray mention some sort of having to get some timing issue correct with the switching power supply? I cant remember where I read that but he could have been talking about the timing of the relay's so that the individual waves produced by the switches were synced up. I drew timing lines in my drawing and if the transistors arent switched properly you'll get all kinds of goofy waveforms.

Correct me if Im wrong, but the radiant spike occurs on the off side of a square wave. Ok, if that's the case, then if the other switch drives opposite of the first then when the second switch kicks on it would actually amplify or add to the radiant pulse by driving below the 0 volt line. When Ive talked to other EE's on this type of supply they call this effect "ringing" which could be what we need and would almost definately explain the overheating of the switches.
