Joulethief SEC exciter and variants

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • yep to all

    Very good fiesta of new idea from everywhere on this thread

    bravo at all and go on the good work

    hehe Seth why not a helicopter with plasma jet you are on the good way

    good luck at all

    Laurent

    Comment


    • My first exciter video. One AA battery using 2N2219. I have not got the audio figured out yet in Windows movie maker. Best if viewed at 720p.

      YouTube - Slayer exciter circuit - 1 AA battery

      Comment


      • Mosfet Slayer Exciter

        @ Slayer & All
        I finally got my Slayer Exciter to run on a Mosfet. Oddly I got it to run on a Radio Shack IRF510. It ran on 5 to 12 volts quite nicely at a 1/2 to 1 amp. I did use a 10k pot with a 100 ohm resistor between the gate and the (+) rail to help tune it. I tried an IRF730 but could not get it to oscillate.

        This is a terrible video but I wanted to document that indeed ---it does work.

        YouTube - Mosfet Transistor Slayer Exciter.ASF



        Lidmotor

        Comment


        • Back EMF GAIN - Transistor Vs. Switch

          YouTube - TheGuru2You's Channel

          Hi,to all

          attached is a very interesting link


          your ideas on these will be appreciated


          cheers

          totoalas

          Comment


          • @ Lidmotor. Well done - I hope you get some good reults from the fet. I love it - it seems to work much better than my TIP 32.

            @ Xee - nice vid! Im looking forward to seeing more.

            my exciter on a 12V battery - pretty much lights up all i have and runs the ion motor. The ion motor is inside a second coil connected to nothing but a vitual ground and some CFLs. In the future ill be trying to get my ion motor magnet spinning so that it will cut the coil with its magnetic field and thereby generate power from the spinning magnet as well as the spinning plasma. I imagine the second coil acts a receiver also for power from the exciter.

            This one uses an IRF 830 - my favourite at the moment.

            YouTube - 12V exciter ion motor and lights

            Comment


            • @ Lidmotor
              Good find. I tried the IRF510 and it works for me, the specs look good, and it is easy to get (my local Radio Shack had them in stock).

              @ Seth
              Wow, your coil is working great. I hope I can get mine to work that well.Thanks for the video.

              Comment


              • Mosfet Exciters

                @ Seth
                I liked you new video. Great light show and ion spinner!
                I worked with the Mosfets again today and got my IRF730 to work as well as the IRF510. I am using a resistance now on both sides of the gate like Dr. Stiffler showed. On my setup I put 2.2k from the gate to the (-) rail and am using a 10k pot between the gate and the (+) rail for tuning. Different coil arrangement will call for different values probably. Anyway it worked.


                @ Xee2
                I'm glad that you got the 510 to work also. The 730 seemed to draw less current and now that I know that these work, I will probably order some 830s like Seth is using.

                Cheers.

                Lidmotor

                Comment


                • @ Lidmotor

                  This is what I tried with the IRF510. FET had heat sink - did not get hot at 12 volts.



                  Last edited by xee2; 10-10-2010, 06:22 AM.

                  Comment


                  • Originally posted by xee2 View Post
                    @ Lidmotor

                    This is what I tried with the IRF510. FET had heat sink - did not get hot at 12 volts.
                    I cant get anything to run for longer than 5 mins wihout a massive heat sink. Only on 1AA can i work without one.

                    If anyone is having problems with transistors getting hot - heatsink and the bigger the better. My heatsink gets very very hot on the IRF830 at 15V, but the transistor still survives for very long runs.

                    Comment


                    • @ Seth

                      This is the heat sink I used on the IRF510. Since I do not want to run down my batteries, I have not run for more than one minute at 12 volts (over one amp). At the end of one minute the 1/4 watt resistor is not even warm and the FET is only slightly warm. The heat sink is actually two small heat sinks used together.

                      Last edited by xee2; 10-10-2010, 03:31 PM.

                      Comment

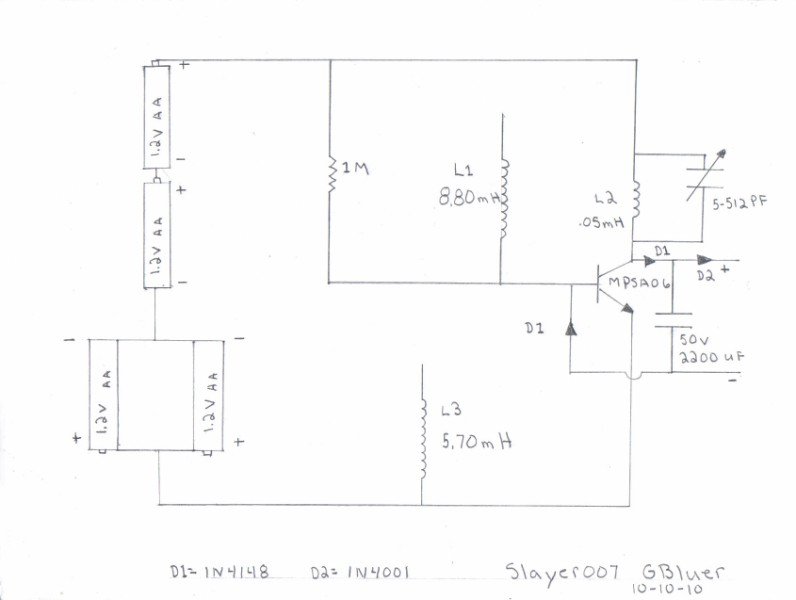

                      • In this video I added a capacitor to collect the back emf from the L2 coil.

                        In my next setup I will add a variable capacitor in place of the bigger capacitor.
                        As you can see the light ouput is brighter when the capacitor was shorted out.

                        YouTube - continuous run and charge 4
                        Attached Files

                        Comment


                        • Mini Slayer Mopozco SEC

                          Hi to all,

                          With 2n3055 (warm) 1 mohm R l2 18 T 18 awg solid inside L1 30 awg 8 1.5 inches

                          Very bright lamps including an 18 w UV lamp with 10 v 100 ma

                          With cellfone charger the UV lamp stays the same brightness 50 ma

                          Will try the Run charge 4 of Slayer

                          thanks to all of you

                          totoalas


                          cheers









                          [IMG][IMG=http://img257.imageshack.us/img257/1289/slayermopozcosec1210100.jpg][/IMG] Uploaded with ImageShack.us[/IMG][IMG=http://img256.imageshack.us/img256/1289/slayermopozcosec1210100.jpg][/IMG]

                          Uploaded with ImageShack.us
                          Last edited by totoalas; 10-12-2010, 02:37 PM.

                          Comment


                          • Voltage and Current going over the roof!

                            Originally posted by jonnydavro View Post
                            HiYesterday i did an experiment with wireless energy transfer and ran my new one magnet no bearing bedini transformer motor which will run on 250uA wirelessly at about 1m using slayers exciter and my rectange reciever coil.
                            I am pretty sure it will spin at a considerably further distance from the exciter and i will test this in some future experiments.
                            I also found an unusual way of increasing the charge rate of the wireless capasitor.I first tried a top load consisting of the small metal tins that you have all seen me using but did not have much luck but that is due to the design of the pop bottle coil so i tried something different as my coil former is a plastic pop bottle and has a lot of plastic exposed at the top so i wrapped a croc lead around the top of the bottle,positioned just above the end of the windings and attached a long wire leading to an alu tray sitting on the floor.The output wire from L1 is left free.
                            This increased the charge rate tremendously as can be seen in the vid of the experiment.Here is a vid of the experiment.Jonny

                            YouTube - Slayer exciter,Ground and wireless motor experiments
                            I had made the slayer exciter, and when I had went to check the voltage, it went well over 2kv and the current was over 200ma. I think that it was running off 5 volts (I think). And then i gave it a load of 15 volts with like 13 rechargeable cells in series and i managed to light up an 8 watt fluorescent bulb up with that. I think that I am getting the all-important voltage spikes. And i cant find any trigger transformers around my area except from maplins. And I dont want to dismantle a camera. Thank you. Wetissues

                            Comment


                            • Finally got my order of analog meters. I also got two lab DC power supplies. I also got a few 12V gel batteries and can now give accurate readings of what I'm doing. I hope? I have missed posting here and look forward to jumping back in.
                              Last edited by Jiffycoil; 10-14-2010, 01:01 AM.

                              Comment


                              • Originally posted by Jiffycoil View Post
                                Finally got my order of analog meters. I also got two lab DC power supplies. I also got a few 12V gel batteries and can now give accurate readings of what I'm doing. I hope? I have missed posting here and look forward to jumping back in.
                                Great news. I would really like to know how much power you are using to get those fantastic results.
