3 Battery Generating System

[Majestic81]

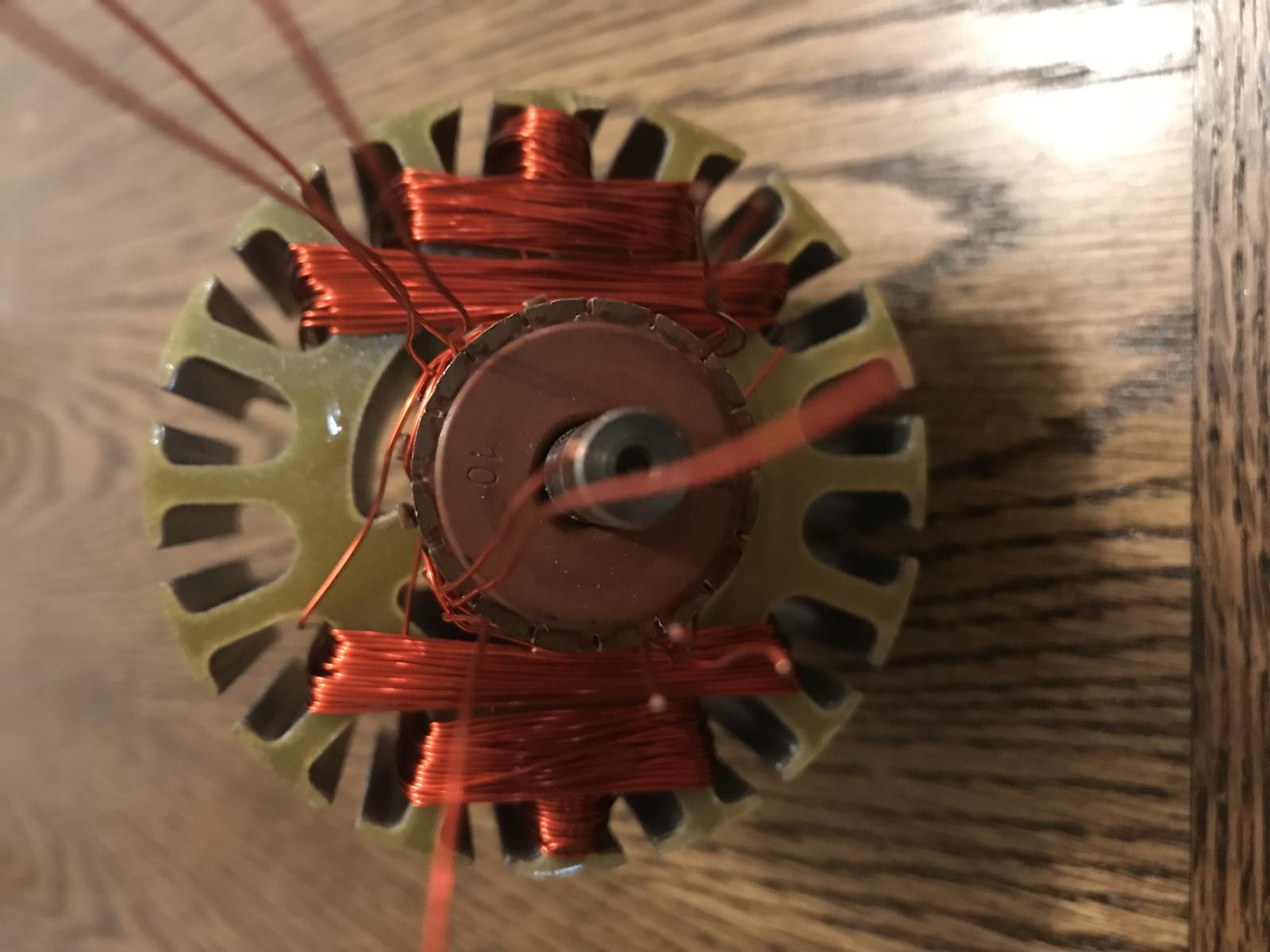

Tonight I wound the coils. I haven’t cut off the excess and soldered yet. Currently I have 3 coil ends together under 3 lugs, then I skip a lug and the other 3 ends are together under 3 lugs. From an electrical standpoint, are the 3 ends of the 3 coils supposed to be tied together under 3 lugs? This part was baffling me as I would assume each coil wire would get it’s own lug. Thank you in advance!

[ATTACH]20386[/ATTACH]

[ATTACH]20387[/ATTACH]

Jameson (just like the whiskey)

Check the correct diagram here
http://www.energeticforum.com/307553-post3532.html

[wantomake]

no new info

To All,
No new building or improvements over the weekend. Hope all is well with new builds here.

Will try to get to re-wiring the MY1016 generator I'm using at present. Still trying to get back to building larger Daves generator. Things always slow to dead stop in winter time for me.

Keep at it and we'll get there,
wantomake

[wantomake]

Correction if I may

Tonight I wound the coils. I haven’t cut off the excess and soldered yet. Currently I have 3 coil ends together under 3 lugs, then I skip a lug and the other 3 ends are together under 3 lugs. From an electrical standpoint, are the 3 ends of the 3 coils supposed to be tied together under 3 lugs? This part was baffling me as I would assume each coil wire would get it’s own lug. Thank you in advance!

[ATTACH]20386[/ATTACH]

[ATTACH]20387[/ATTACH]

Jameson (just like the whiskey)

It looks like you have (1) single wire wound around each coil. No. You keep the three wires together at all times. Parallel to each other. Side by side they make one wire with three strands in it. Look at Matthew's video again, the first one.

I don't know how wide the (3) segments are on the commutator is. Open or bend back the three tabs carefully. Clean the lacquer from ends of three wires same length as the width of the 3 segments. Place that end with three wires together into the three segments. Gently bend the tabs down over the three wires. Three tabs hold the three wire ends. I used a small flat head screw driver and my hand to push it down.

Now go up to middle first rotor iron to start winding(refer to the video) the coil. As you look at it you should wind clock-wise. 40,30,30 wind all the coils with the three wires together as one trifilar wire.

Hope this helps. Matts videos really explains it in good detail.
wantomake
https://m.youtube.com/watch?list=LLG...&v=faZIszrlllI

https://m.youtube.com/watch?v=eFR-d_oaYsY

[2600]

Coil Winding...

Tonight I wound the coils. I haven’t cut off the excess and soldered yet. Currently I have 3 coil ends together under 3 lugs, then I skip a lug and the other 3 ends are together under 3 lugs. From an electrical standpoint, are the 3 ends of the 3 coils supposed to be tied together under 3 lugs? This part was baffling me as I would assume each coil wire would get it’s own lug. Thank you in advance!



Jameson (just like the whiskey)

[wantomake]

Lithium packs

The lithium-ion packs didn't do well.

After looking at them I understand why those that use them have so many in one block. Just not enough amp hours in mine to hold up. But did take my crazy testing ideas. If I can afford hundreds then will use them in solar setup with 3BGS as backup.

Not a total waste of time.
wantomake

[wantomake]

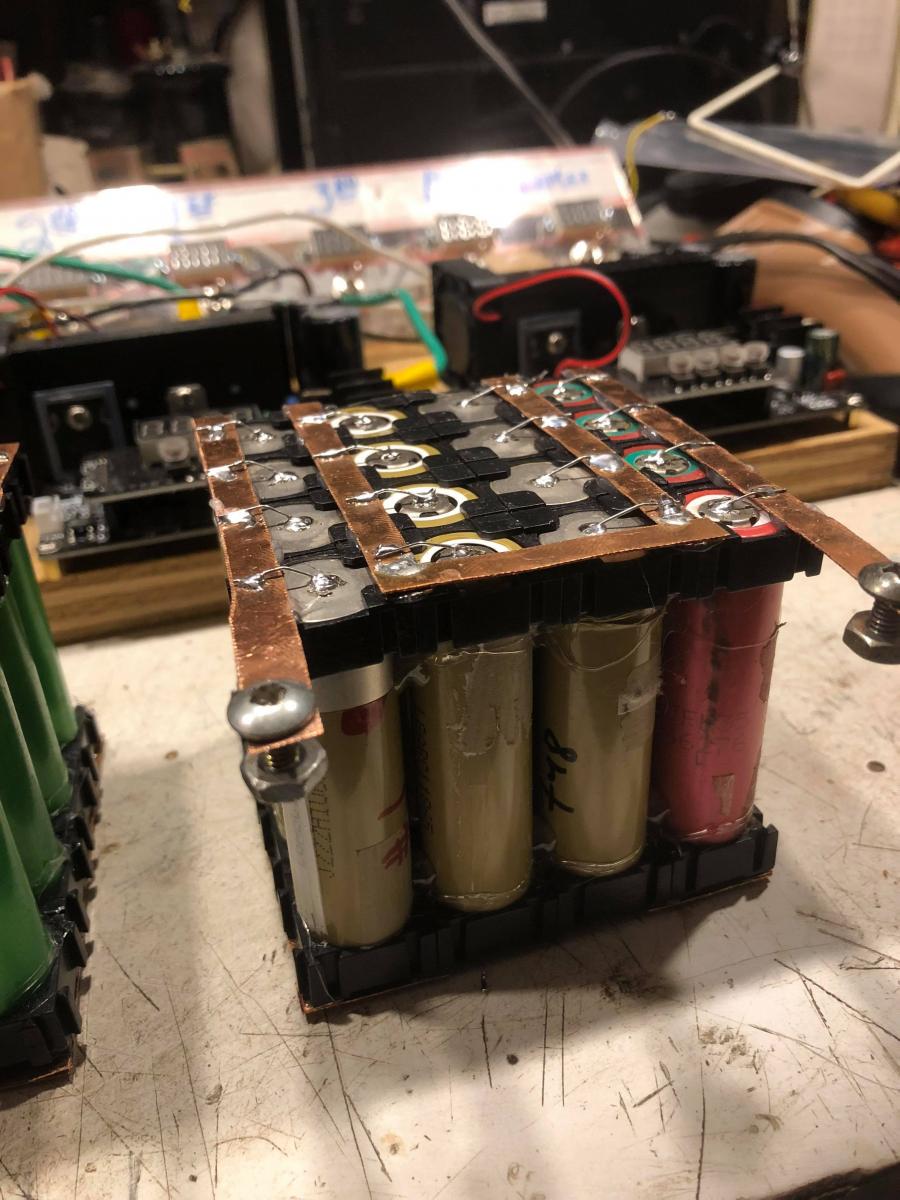

pictures Lithium Ion packs

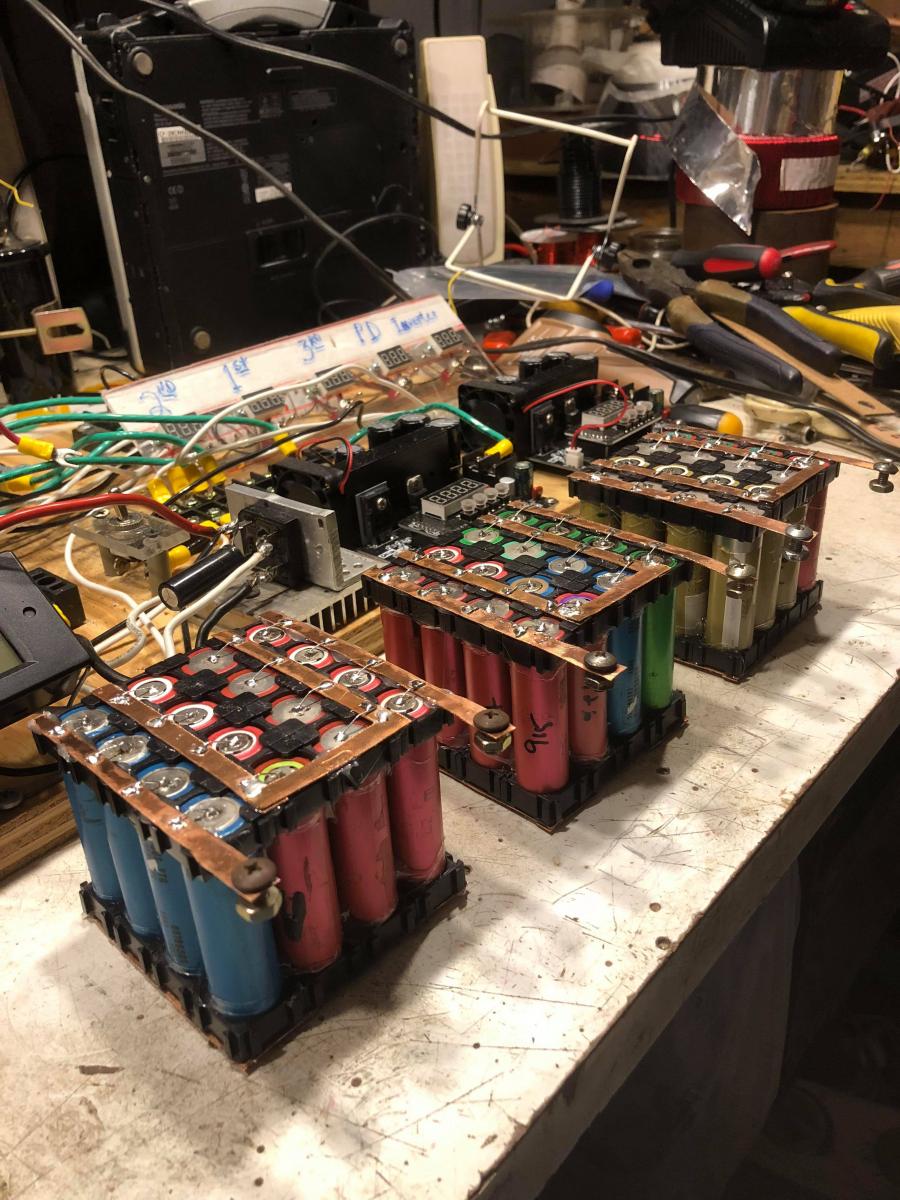

Here is the three lithium ion packs to be used with the 3BGS in three battery positions.


Will post any results when time allows me.
wantomake

[wantomake]

More information

Very much looking forward to data on the lithiums. They are fire hazards or at can be but those are the lithium cobalt and other variations.

They're expensive, but LiFePO4 - Lithium Iron Phosphate batteries are not fire hazards, safer, more environmentally friendly, etc.

In either case, the advantage lithium batts have over lead acids besides being constant voltage batteries (lead acid are constant current) is that the ions are a fraction of the mass of lead acids - their internal impedance is a fraction of lead acids so theoretically, they should charge faster, a battery being put in "rest" mode shouldn't have to be in rest mode as long since there is less momentum of the charging mode to absorb fully by the battery, etc.

I've seen mixed results with LiFePo4 used in Bedini SG setups for example - it would be very interesting and important if you are able to exploit their advantages in the 3 battery setup. Supposedly, lithiums do not like to be pulsed with spikes or cap dumps and are more suited for steady current, but I have also seen situations where that didn't seem to be an issue.

Btw, I did rewind a scooter motor and will post something on that later. Still doing a few mods on the Kromrey but as soon as I can, I want to run the Kromrey on that motor.

Thanks for all your posts and glad to see some others starting to take part in this project and thanks to Matt and Dave for their continued support.

Thanks Aaron,
It has been hard to build the little lithium ion packs. Don't like soldering ends of batteries. But after doing a few got the hang of it. Reading/studying the methodology, there is much quicker and effective spot welding setups. They use the thin silver strips and tack them on each battery. I will use that method as I progress to larger Tesla wall units. Jehu Garcia has very good channel if anyone needs to know.

For testing purposes just smaller 12-14 volt bundles will be safer and easy as a starting point.

I only paid $1 each for 50 of these last year plus the few I had already from old laptop battery packs.

Looking forward to the Kromrey generator, would like to learn more about it. When days increase to 26 hours and my shop doubles in size, I plan to try the ZPM and Kromrey.

Yes thanks Matt and Dave for your patience and help. To all builders "gan ba tte" (you can do it!!!) as my Japanese wife encourages me and all of us together.

wantomake

[Aaron]

lithium batts

Still slow go with the modified Dave generator. In the mean time been assembling lithium ion 18650 size battery packs. Each one has 14+- volts each bundle. One bundle is 16 batteries each. 4 batteries in series as each row has 4 in parallel. One bundle powers the modified Matt motor fairly well. With the warm thaw it allows time to get some crazy tests out of my head.

Not sure how the lithium ions will react to the 3BGS setup with one bundle wired backwards. As these type batteries are fire hazards, don't try this unless you are knowledgeable of their dangers.

I plan to replace my solar bank with all lithium batteries. The life cycles is much longer with higher amp hours.

Just trying to keep up with modern tech while trying to improve the 3BGS setup.

wantomake

Very much looking forward to data on the lithiums. They are fire hazards or at can be but those are the lithium cobalt and other variations.

They're expensive, but LiFePO4 - Lithium Iron Phosphate batteries are not fire hazards, safer, more environmentally friendly, etc.

In either case, the advantage lithium batts have over lead acids besides being constant voltage batteries (lead acid are constant current) is that the ions are a fraction of the mass of lead acids - their internal impedance is a fraction of lead acids so theoretically, they should charge faster, a battery being put in "rest" mode shouldn't have to be in rest mode as long since there is less momentum of the charging mode to absorb fully by the battery, etc.

I've seen mixed results with LiFePo4 used in Bedini SG setups for example - it would be very interesting and important if you are able to exploit their advantages in the 3 battery setup. Supposedly, lithiums do not like to be pulsed with spikes or cap dumps and are more suited for steady current, but I have also seen situations where that didn't seem to be an issue.

Btw, I did rewind a scooter motor and will post something on that later. Still doing a few mods on the Kromrey but as soon as I can, I want to run the Kromrey on that motor.

Thanks for all your posts and glad to see some others starting to take part in this project and thanks to Matt and Dave for their continued support.

[wantomake]

over my pay grade

Wantomake, if you are interested in keeping up with modern tech batteries, have a look at what Robert Murray-Smith is doing with batteries running motors here:

[VIDEO]fcK9JSxVNUc[/VIDEO]
https://www.youtube.com/watch?v=fcK9JSxVNUc

Here he compares a hemp battery with a lithium one:
[VIDEO]7K4eIOmiJL4[/VIDEO]
https://www.youtube.com/watch?v=7K4eIOmiJL4

p.s. sorry if the vids don't show up, I cant remember how to do it right, and am out of time for now.

Ken,
Very interesting as this is proof that our technology is changing so fast. Hemp- who would have thought it?
But that's a bit over my knowledge level and shop ability. I was able to watch both videos. Have seen many of his tests but my chemistry training was only two weeks in Tech College which I cancelled because my brains almost exploded. But strange enough I made the Dean's List that year for HVAC dept highest GPA. Haha.

wantomake

[kenssurplus]

batteries

Wantomake, if you are interested in keeping up with modern tech batteries, have a look at what Robert Murray-Smith is doing with batteries running motors here:

[VIDEO]fcK9JSxVNUc[/VIDEO]
https://www.youtube.com/watch?v=fcK9JSxVNUc

Here he compares a hemp battery with a lithium one:
[VIDEO]7K4eIOmiJL4[/VIDEO]
https://www.youtube.com/watch?v=7K4eIOmiJL4

p.s. sorry if the vids don't show up, I cant remember how to do it right, and am out of time for now.

[wantomake]

Testing while waiting

Still slow go with the modified Dave generator. In the mean time been assembling lithium ion 18650 size battery packs. Each one has 14+- volts each bundle. One bundle is 16 batteries each. 4 batteries in series as each row has 4 in parallel. One bundle powers the modified Matt motor fairly well. With the warm thaw it allows time to get some crazy tests out of my head.

Not sure how the lithium ions will react to the 3BGS setup with one bundle wired backwards. As these type batteries are fire hazards, don't try this unless you are knowledgeable of their dangers.

I plan to replace my solar bank with all lithium batteries. The life cycles is much longer with higher amp hours.

Just trying to keep up with modern tech while trying to improve the 3BGS setup.

wantomake

[Turion]

Fastest way is to burn it off, then sand what remains. I use a little flick lighter called “Wind Resistant” That has a glass piece in handle which lets you see how much fluid is left. Burns with forced flame like a cutting torch. Then #60 sandpaper, which is way course. But do it that way from habit. Don’t know if it’s the best.

[2600]

Thanks!

J,
Best way I found was to sand it off with fine grain sandpaper. Or can use utility knife. But to each what works best.

wantomake

Thanks Wantomake! It looks like I’m at the same stage as several others with these motors. I’ll post updates and look forward to reading updates from others.

[wantomake]

I received the 2 MY1016 motors I ordered off eBay. This evening I removed the wire from one of the motors. I used dikes to cut the coils and then slid the wire from the sleeves. I ordered 1lb of 24 AWG magnet wire so I'll be winding the coils 40-30-30 as recommended. Since the magnet wire is enameled, am I correct that I should melt the coating off the ends of the coils that attach to the motor? Thanks!

Jameson

[ATTACH]20367[/ATTACH]

[ATTACH]20368[/ATTACH]

J,
Best way I found was to sand it off with fine grain sandpaper. Or can use utility knife. But to each what works best.

wantomake

[2600]

Motors Arrived!

I received the 2 MY1016 motors I ordered off eBay. This evening I removed the wire from one of the motors. I used dikes to cut the coils and then slid the wire from the sleeves. I ordered 1lb of 24 AWG magnet wire so I'll be winding the coils 40-30-30 as recommended. Since the magnet wire is enameled, am I correct that I should melt the coating off the ends of the coils that attach to the motor? Thanks!

Jameson
