Rosemary Ainslie Heater Circuit "Final"

Hi everyone,

Here is the finalized RA Heater Circuit Schematic and Component List for the best operation that I have achieved through my replications so far on this circuit.


Rosemary Ainslie Heater Circuit - Revised 11-26-2009


Circuit Components .jpg Image
Circuit Components - Word Document

Glen

[FuzzyTomCat]

Test #13

Hi everyone,

Here is TEST #13 .... it's another one (1) hour test with 40us and 2us readings taken every six (6) minutes for a total of eleven (11) readings or twenty two (22) Image and Data files for one (1) hour.




TEST #13

Rosemary Ainslie COP>17 Heater Circuit
"Quantum" October 2002

Replication Components -

1) International Rectifier - IRFPG50 HEXFET® Power MOSFET
w/ Sil-Pad insulator between Mosfet and Heat Sink

2) Fairchild Semiconductor - NE555N Timer

3) Vishay Spectrol - SP534 Percision Potentiometer/ 10-turn 2-Watt

4) Exide Technologies Battery "Liquid Lead Acid" Model # GT-H - TRACTOR 12V 12Ah CCA 235

5) CSB Battery Company "Gel Lead Acid" #GP 1270 F2 / 12 Volt 7.0 Ah

6) Prototype "Quantum" Load Resister 10 ohm + - 5%

7) "Shunt" - Caddock High Performance Film Resistor "non-inductive" 30 watt type
MP930-0.25-1%


Temperature Measurements -

Fluke 62 "mini" IR Themometer ( used maximum reading on each componenet )

Digital Mulit Meter -

Fluke 87 DMM true RMS

************************************************** *******

Channel 1 - Mosfet source shunt
Channel 2 - Mosfet drain
Channel 3 - 555 Timer pin #3
Channel 4 - 24 VDC "Liquid" Lead Acid Battery Bank

Gate Potentiometer set at - 6.1 Ohms (+ -)

TEST #13 Complete Original Image & Data .Zip File Set w/ Key


1_40us

1_40us_11-26-09a.png Image File
1_40us_11-26-09a.CSV Spread Sheet File
1_2us
1_2us_11-26-09a.png Image File
1_2us_11-26-09a.CSV Spread Sheet File


2_40us

2_40us_11-26-09a.png Image File
2_40us_11-26-09a.CSV Spread Sheet File
2_2us
2_2us_11-26-09a.png Image File
2_2us_11-26-09a.CSV Spread Sheet File


3_40us

3_40us_11-26-09a.png Image File
3_40us_11-26-09a.CSV Spread Sheet File
3_2us
3_2us_11-26-09a.png Image File
3_2us_11-26-09a.CSV Spread Sheet File


4_40us

4_40us_11-26-09a.png Image File
4_40us_11-26-09a.CSV Spread Sheet File
4_2us
4_2us_11-26-09a.png Image File
4_2us_11-26-09a.CSV Spread Sheet File


5_40us

5_40us_11-26-09a.png Image File
5_40us_11-26-09a.CSV Spread Sheet File
5_2us
5_2us_11-26-09a.png Image File
5_2us_11-26-09a.CSV Spread Sheet File


6_40us

6_40us_11-26-09a.png Image File
6_40us_11-26-09a.CSV Spread Sheet File
6_2us
6_2us_11-26-09a.png Image File
6_2us_11-26-09a.CSV Spread Sheet File


7_40us

7_40us_11-26-09a.png Image File
7_40us_11-26-09a.CSV Spread Sheet File
7_2us
7_2us_11-26-09a.png Image File
7_2us_11-26-09a.CSV Spread Sheet File


8_40us

8_40us_11-26-09a.png Image File
8_40us_11-26-09a.CSV Spread Sheet File
8_2us
8_2us_11-26-09a.png Image File
8_2us_11-26-09a.CSV Spread Sheet File


9_40us

9_40us_11-26-09a.png Image File
9_40us_11-26-09a.CSV Spread Sheet File
9_2us
9_2us_11-26-09a.png Image File
9_2us_11-26-09a.CSV Spread Sheet File


10_40us

10_40us_11-26-09a.png Image File
10_40us_11-26-09a.CSV Spread Sheet File
10_2us
10_2us_11-26-09a.png Image File
10_2us_11-26-09a.CSV Spread Sheet File


11_40us

11_40us_11-26-09a.png Image File
11_40us_11-26-09a.CSV Spread Sheet File
11_2us
11_2us_11-26-09a.png Image File
11_2us_11-26-09a.CSV Spread Sheet File



Thermal Data w/ Original Image Key





100ns

100ns_11-26-09a.png Image File


Snap Shot Images - 2us

Snap Shot Channel-1_11-26-09a.png Image File

Snap Shot Channel-2_11-26-09a.png Image File

Snap Shot Channel-3_11-26-09a.png Image File

Snap Shot Channel-4_11-26-09a.png Image File



All Images and data from a Tektronix TDS 3054C from the Tektronix Corporation


Glen

[witsend]

Thursday 26 November 2009 A Thanksgiving Thank You

Guys - and a final welcome announcement. Fuzzy has just completed Test 13 which required a refinement to the ground probe positioning. We are back into OU territory - possibly better to just refer to total conservation of charge - which is the experiment's proof of thesis and proof of concept. VERY EXCITING NEWS.

Fuzzy will be posting this in about 3 hours from now. So keep watch. Fuzzy WHAT A STAR. You've now outperformed your very best performance. SO, SO GRATEFUL.

And to all our readers in America. Happy Thanks Giving Day - Happy Turkey Day - not sure which is appropriate. But it is really an auspicious day with such an auspicious result. Tears in the eyes guys. Cannot begin to express this amount of happiness. Thursday 26th November 2009 - will go down as the day that the unity barrier was finally defeated. Golly. Such fun.

[ashtweth]

Yeah Fuzzy is the man, but you too Harvey have a special aptitude for this, Aaron too. All have shown that this sum of the whole comprises equal parts , some parts are particularly unique, gotta give a special thanks to Glen, he never ceases to blow me away personally. Its daunting to think what would of become of the circuit had fuzzy, Harvey , Aaron and others had not just said ... "....it" let tune this thing.

Free energy comes from a FREE mind. Rose is there. Is the first COP+1 device going to get into the IEE and be by an altruistic Woman

@Rose what an honor and DIFFERENCE it will make for the OPEN SOURCE community, With the Doc Stiffler now close to 100% efficiency light systems/battery systems for the public, Slayer and Fausto replicating them, and now this getting towards the mainstream paper status and real life applications, what a gift to us all Rose. I feel history and a paradigm shift happening, beautiful thing to to watch. Especially Fuzz, Aarons and Hervey's Talents. And where are you hiding Peter Lindemann..take a bow sir.

Okay lets get to work guys, Rose just dropped you a PM, for some finer details on the forums and paper. Have Also Emailed Patrick Kelly to look in on it too.

Almost got our scope guys to get back in the shop , thanks Harvey and Glen, new info is in the doc now, didn't know Fuzzy was on the skype call conference sorry Bro, brain is working long hours ATM.


Ash

[witsend]

And another much needed tribute to the remarkable Tektronix TDS3054C. We've been tasked with presenting 'unusual data' in support of an 'unusual claim' therefore requiring 'unusual proof'. If we were to publish the detailed data extrapolated from our Rolls Royce of a DSO - then we've got enough proof to fill 12 or so tomes of plus/minus 1 yard thick - each. That's a welter of information and probably will take some time for full evaluation. But the data is consistent with the thesis - and if it needs such weight to shift those paradigms - then I think we've got there.

Thank you Tektronix for your extraordinary co-operation - way above and beyond the call of duty - and we hope and trust that it is in line with your mission commitment to the need for clean and green energy. We cannot do sufficient justice to your generosity here. But, for the record, I very much doubt that our results would have had such authority without this instrument. We are all deeply obligated and have very little way to ever repay you for this assistance.

With thanks from all of us on this thread - in this forum - and, I'm sure I can add this, from our public who follow this forum and this thread. There are many thousands of us who are indebted.

[witsend]

Fuzzy,

Yet again a sincere thanks for all your efforts here. I have drafted a request to Lisa for an extension on the DSO to enable that 'public' access display of a test in continuous operation - which will let our public see the process in 'real time'. Hopefully that will be the concluding effort here and will give the DSO some more exposure as well as to the curious waveforms that you manage.

And guys - our readers and our members - we're on track for our paper. Ash and Andrew will be doing the much needed editing of the paper and attending to the submission process. Thanks guys for your undertakings. We're still aiming for submission by month end. The hope is that soon thereafter we'll be able to publish the paper - in some form - on this thread.

We need to make a list of all of you who have replicated or attempted some form of replication for a tribute mention in that paper. But we need your actual names. Please - if you've been involved in any capacity - pm your names to Ash to add to that list. Incidentally this should include the name of some of our trolls. If you want mention - now's your chance. LOL.

And everyone - we've climbed a really steep hill. No doubt we'll be advised to vary the length of the submission and amend certain presentations in that paper. But we will first need it reviewed. So. Here's hoping. Actually, to anyone who has any direct, or indirect, access to the Good Lord, perhaps prayer will help here. I think we need something in the order of a miracle.

[FuzzyTomCat]

Test #12

Hi everyone,

Here is TEST #12 .... it's a one (1) hour test with 40us and 2us readings taken every six (6) minutes for a total of eleven (11) readings or twenty two (22) Image and Data files for one (1) hour.




TEST #12

Rosemary Ainslie COP>17 Heater Circuit
"Quantum" October 2002

Replication Components -

1) International Rectifier - IRFPG50 HEXFET® Power MOSFET
w/ Sil-Pad insulator between Mosfet and Heat Sink

2) Fairchild Semiconductor - NE555N Timer

3) Vishay Spectrol - SP534 Percision Potentiometer/ 10-turn 2-Watt

4) Exide Technologies Battery "Liquid Lead Acid" Model # GT-H - TRACTOR 12V 12Ah CCA 235

5) CSB Battery Company "Gel Lead Acid" #GP 1270 F2 / 12 Volt 7.0 Ah

6) Prototype "Quantum" Load Resister 10 ohm + - 5%

7) "Shunt" - Caddock High Performance Film Resistor "non-inductive" 30 watt type MP930-0.25-1%


Temperature Measurements -

Fluke 62 "mini" IR Themometer ( used maximum reading on each componenet )

Digital Mulit Meter -

Fluke 87 DMM true RMS

************************************************** *******

Channel 1 - Mosfet source shunt
Channel 2 - Mosfet drain
Channel 3 - 555 Timer pin #3
Channel 4 - 24 VDC "Liquid" Lead Acid Battery Bank


TEST #12 Complete Original Image & Data .Zip File Set w/ Key


1_40us

1_40us_11-26-09.png Image File
1_40us_11-26-09.CSV Spread Sheet File
1_2us
1_2us_11-26-09.png Image File
1_2us_11-26-09.CSV Spread Sheet File


2_40us

2_40us_11-26-09.png Image File
2_40us_11-26-09.CSV Spread Sheet File
2-2us
2_2us_11-26-09.png Image File
2_2us_11-26-09.CSV Spread Sheet File


3_40us

3_40us_11-26-09.png Image File
3_40us_11-26-09.CSV Spread Sheet File
3_2us
3_2us_11-26-09.png Image File
3_2us_11-26-09.CSV Spread Sheet File


4_40us

4_40us_11-26-09.png Image File
4_40us_11-26-09.CSV Spread Sheet File
4_2us
4_2us_11-26-09.png Image File
4_2us_11-26-09.CSV Spread Sheet File


5_40us

5_40us_11-26-09.png Image File
5_40us_11-26-09.CSV Spread Sheet File
5_2us
5_2us_11-26-09.png Image File
5_2us_11-26-09.CSV Spread Sheet File


6_40us

6_40us_11-26-09.png Image File
6_40us_11-26-09.CSV Spread Sheet File
6_2us
6_2us_11-26-09.png Image File
6_2us_11-26-09.CSV Spread Sheet File


7_40us

7_40us_11-26-09.png Image File
7_40us_11-26-09.CSV Spread Sheet File
7_2us
7_2us_11-26-09.png Image File
7_2us_11-26-09.CSV Spread Sheet File


8_40us

8_40us_11-26-09.png Image File
8_40us_11-26-09.CSV Spread Sheet File
8_2us
8_2us_11-26-09.png Image File
8_2us_11-26-09.CSV Spread Sheet File


9_40us

9_40us_11-26-09.png Image File
9_40us_11-26-09.CSV Spread Sheet File
9_2us
9_2us_11-26-09.png Image File
9_2us_11-26-09.CSV Spread Sheet File


10_40us

10_40us_11-26-09.png Image File
10_40us_11-26-09.CSV Spread Sheet File
10_2us
10_2us_11-26-09.png Image File
10_2us_11-26-09.CSV Spread Sheet File


11_40us

11_40us_11-26-09.png Image File
11_40us_11-26-09.CSV Spread Sheet File
11_2us
11_2us_11-26-09.png Image File
11_2us_11-26-09.CSV Spread Sheet File


Thermal Data w/ Original Image Key





100ns

100ns_11-26-09.png Image File


Snap Shot Images - 40us

Snap Shot Channel-1 40us

Snap Shot Channel-2 40us

Snap Shot Channel-3 40us

Snap Shot Channel-4 40us



All Images and data from a Tektronix TDS 3054C from the Tektronix Corporation


Glen

[Michael John Nunnerley]

Harvey and all

Hi Harvey,

It is interesting what you are saying about the current phase shift. I know I am not duplicating the tests but what I am doing with the STEAP seems to be in a similar field, excuse the pun.

I am thinking of replicating the 555 circuit but using a different mosfet as i do not have the other, or I may add more caps on to the frequency selector of my PWM and change the pots to 10 turn. I have found that the tuning is very critical and with the standard pots the slightest movement changes the multiple harmonics that I am getting, into one main frequency only.

I am working at between 2khz and 7khz, 6khz is the favorite. When I get it tuned to the multiple frequencies, I have low current draw on input but the phasing transformer starts to heat up quite a lot which shows that I must be getting a good current returning from the high Q coil I am now using as my load coil. (hot! starts melting the plastic)

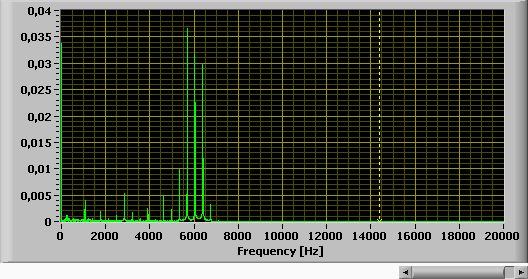

Below is a pic of these multiple frequencies. The voltage can be as high as 350v on my DMM, and if I put a secoundary coil inside the other this reads somewhere around 1.7Kv nearly blows the neon that I have.

I have posted this here because of what you said about CURRENT phasing in the above post.

Mike

[Harvey]

Hi all, still here and working on what I can for the project in between all the rest of the stuff going on.

Evidently I have been spiked - either that, or this is one huge coincidence. Both my cable modem and my firewall appliance developed 'odd' hardware issues. Now this is the weird part - my ISP could access the modem and we had limited throughput but they could not read the inner registers - the internal code had been rewritten. Using Speakeasy - Speakeasy, Inc. - Broadband, Voice and Data Services speed test it was confirmed that all test sites offered produced about 100bps (yep bps, not kbps) But the Washington DC path was running at 400kbps. My internet was essentially shut down. My firewall / router was not so fortunate, it was reprogrammed into an eternal reset loop and it ignores the factory reset protocol. My ISP has put a tracer trap on the wire to double check for malicious activity and will forward all hacker type activity to the local FBI. I have a new Modem courtesy of Time Warner and we still have a problem. Speeds should be 10Mbps but at best I'm only getting 5Mbps bursts on the DL and 700kbps upload. The ISP is checking why. Interestingly, after this attack my Peer Guardian program has quieted down significantly. It would appear that most of the traffic is outgoing as EgmQC has indicated which leads me to think that Skype is using the local university Fiber Optic Nets for the bandwidth; relaying off 'away' computers to bypass the BGP routers in the cloud and hop directly from point to point over the light pipe connecting major universities.

I've uploaded the test configuration drawings to the group location for reference in the paper but still need to finish the transient analysis document regarding all the lead inductance and the impact it has on the actual results. The fact of the matter is that progress is moving so fast on this I can't keep up, we are already at test #13 and with the results from test #12 it looks like the system is nearly bug free and producing top quality data. I wish we had more than 5 days to wrap this up but with the man power at hand I think it is within reach - I see some long days ahead

Fuzzy has done the bulk of the work here and really deserves the credit for getting us this far. He has developed a skill for tuning this circuit into preferred oscillation and hopefully that can be passed on to others who wish to experiment with this arrangement. It should be mentioned that his circuit runs much faster (between 2 to 8 times) in preferred oscillation than the original circuit from the quantum article. Also, his timer is set at a much faster setting than the published 2.4kHz, in fact with the load resistor disengaged he could not get below 70kHz. Look carefully at his published schematic in prior posts to ensure your replication efforts align with his. It would be difficult to pinpoint exactly why this difference exists, but I do know that manufacturers make various improvements or changes to transistors and IC's as the years pass. The IRFPG50's we are using today, may not have the published capacitance in my 1993 designers manual. It is believed by me that the MOSFET capacitance plays an important role in the aperiodic resonance and subsequent subharmonic recursions that result in a shift of current phase at the load resistor. Normally the inductive portion of the resistor would experience a current lag that precludes full power from being dissipated and instead returns it in the form of apparent power. But in the case under test we find a negative current present in time with the full voltage recovered from the magnetic field to allow full power to be applied to the resistor as the current flows back into the battery. The realization of excess heat and RF radiation indicates that a source of energy is present separate from the supply batteries. More research is needed to specifically ascertain the secondary source. Interestingly, this result was predicted by the Magnetic Model by Rosemary Ainslie which identifies the source as material decay which gives up its energy as atoms become disassociated from the resistor structure. When the energy which binds these atoms and molecules together is no longer performing that service, then it becomes free to be applied to do work and in this case it readily adds heat to the material.

Just wanted to get in a quick post before I get some rest.

Cheers,

[ashtweth]

Ash - I need help urgently. Please check your skype

rosie

Hi Rose, sorry i have not been on skype, i left my phone at the Panacea farm by accident Am on skype now on my computer (remember i have a skype mobile) Dear. I am on GmT+10 Brisbane
Hope every thing is okay , will drop you one now

Ash

[FuzzyTomCat]

Hi Rosie,

I'm at work and relized that tomorrow is Thursday and Friday are Holidays in the USA for Thanksgiving .... so if you wanted to contact "Lisa" there is 2-hours today ( Wednesday ) to contact her prior to Monday the 30th ....

Glen

[witsend]

Ash - I need help urgently. Please check your skype

rosie

[witsend]

Guys, to all those who are attempting a replication please take note.

Fuzzy has just done a test on a resistor that closely approximates our quantum test resistor. He took the frequency down to 70 Khz and the sad news is that the advantage was completely lost. Please, therefore, do not get married to the quantum frequency. Test a range of this and the chances are that you will need to run at a higher frequency and possibly also a higher duty cycle. The assumption is that your 555 switching arrangement are in line with Fuzzy's and Aaron's before him.

I suspect that the best guide here will be to let the circuit find it's own preferred oscillation. Component variations seem to result in HUGE variations in frequency. So sorry to introduce yet another variable.

[gotoluc]

Hi Glen, Rosemary and all.

Today I received the glass tube Glen mailed me and also a bonus IRFPG50. Thanks Glen

Should have some results this weekend.

Luc
