Chubinidze coil

[dunfasto]

Hi dunfasto yes it should be like that setup but to find resonance of coil one should do the reccomended setup.
On the other thread Sergei said that chubinidze coil should be 1/2 cw &1/2 ccw.
Worth a try.

yes the main output coil should be half cw and half ccw to have full wave output. more over the ccw and cw conteract each other to produce low voltage needed to drive the transformer of 220 volt to 12 volt for feed back.

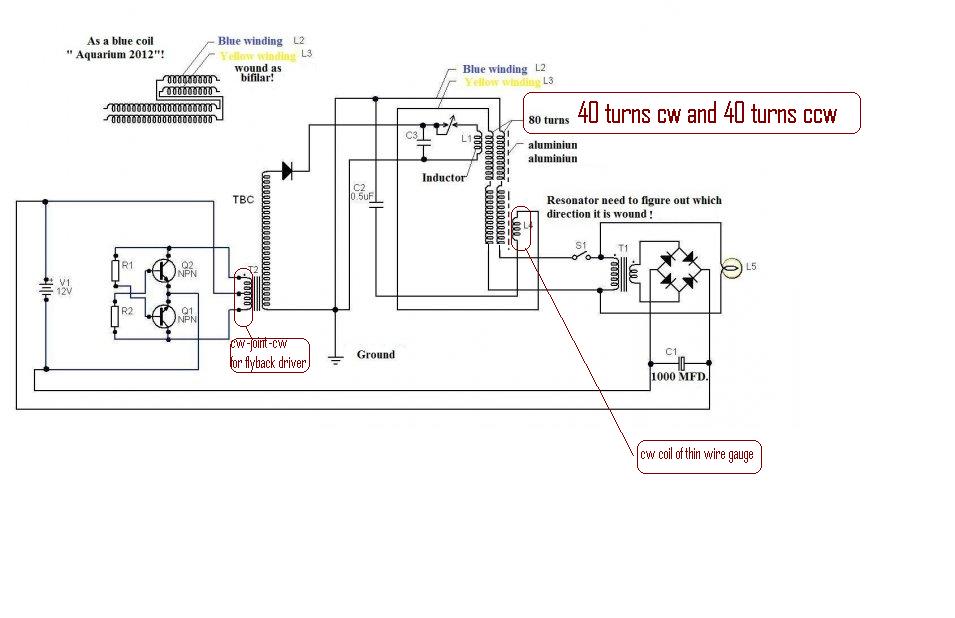

but the driver coil must be cw-joint-cw for the flyback. fed by transistors. the image below will clear all your doubts

http://www.energeticforum.com/attachment.php?attachmentid=13524&stc=1&d=1374592683

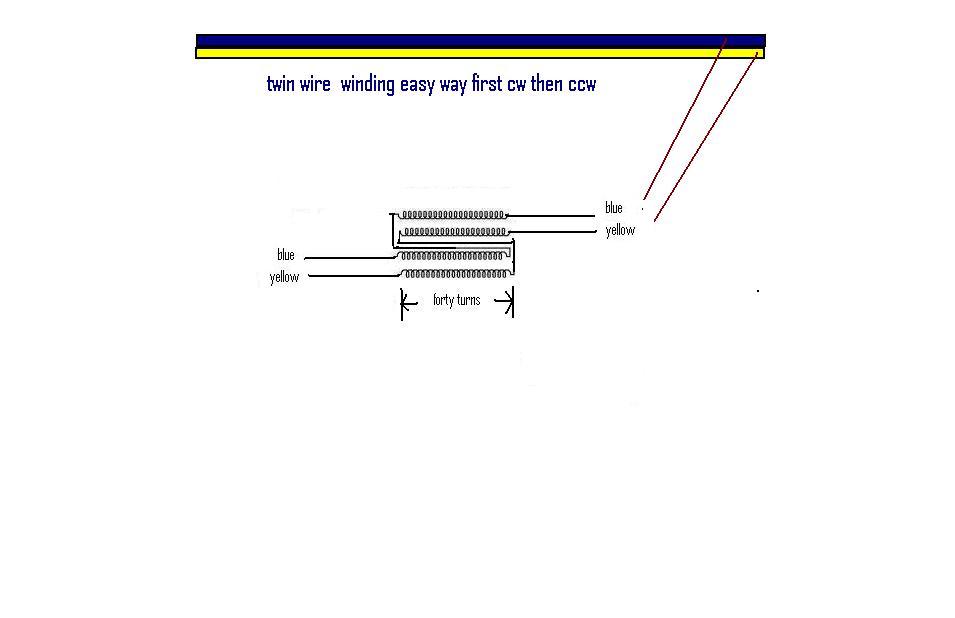

right way as done in video original as below

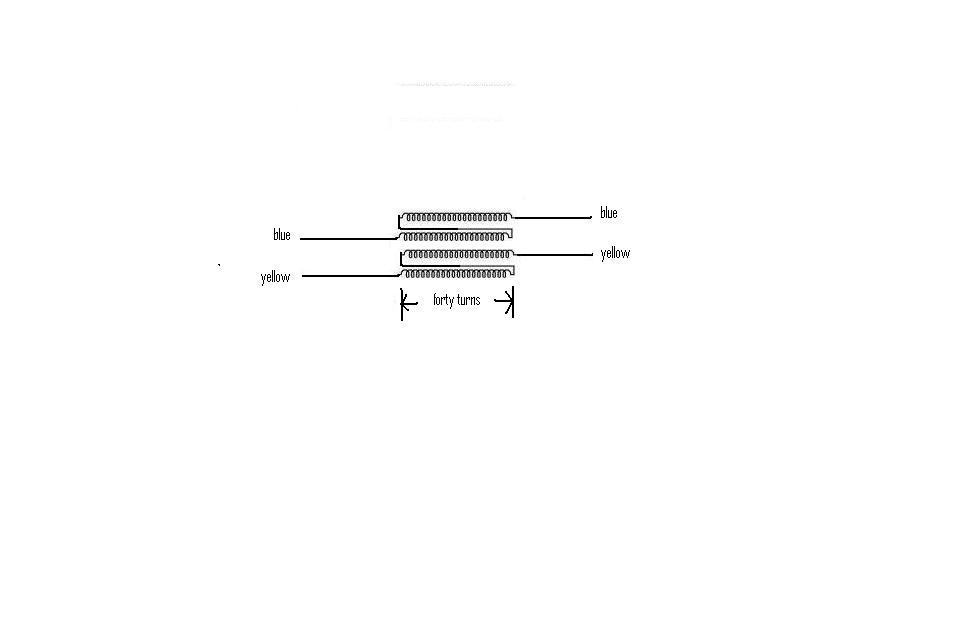

twin wire winding the correct way



also ask grumage also for how he wounded his coils.


dunfasto

[dunfasto]

I've built this setup but no result yet.
Don't know if resonator is wound on ferrite or not.

Гость УСТАНОВКА - YouTube

the resonator is on ferrite. nano perm ferrite. you can use ferrite rings.

dunfasto

[Guruji]

the resonator is on ferrite. nano perm ferrite. you can use ferrite rings.

dunfasto

Great Dunfasto thanks for the info. What's Nano perm ferrite?
Ok I will try these modifications.
Thanks

[dunfasto]

Great Dunfasto thanks for the info. What's Nano perm ferrite?
Ok I will try these modifications.
Thanks

nano perm ferrite

http://www.energeticforum.com/attachment.php?attachmentid=13530&stc=1&d=1374609808

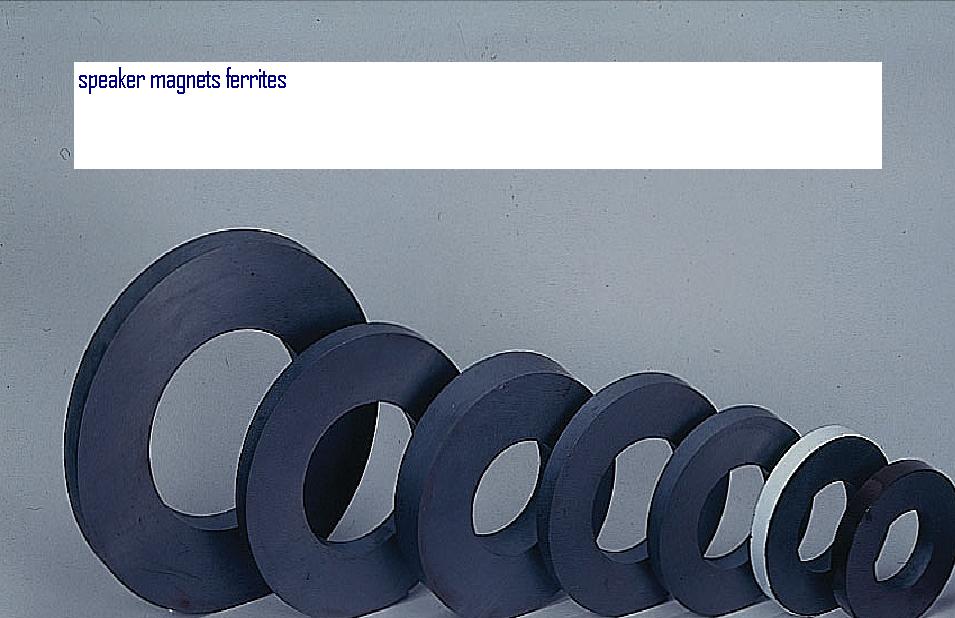

you can use speakers ferrite which are not charged( means not magnetized as permanent ferrite magnets) you can get these audio ferrites from the local speakers manufactures ask them to give you non charged ferrites. remember the thin central coil is wound on these ferrite cores then alluminium/copper tube then the pvc pipe and over that your thick secondary cw and ccw coils.



to enhance the power effect when using copper split tube heat it over the hot plate to make red copper oxide. see home made solar cell watch this video

How to make solar cells (DIY/homemade solar cell) - YouTube

learn how to make it light sensitive copper tube to use it in your replication.

dunfasto

[Grumage]

Hi dunfasto yes it should be like that setup but to find resonance of coil one should do the reccomended setup.
On the other thread Sergei said that chubinidze coil should be 1/2 cw &1/2 ccw.
Worth a try.

Dear All.

I feel there may be some "Red Herring's" being thrown...... Our Sergey, OU.Com has recently posted that the coils are 80 turns each as a two layer setup. Also please look closely at the video, I can't see a division of windings where the direction changes. Can you?


Selfrunning Free Energy devices up to 5 KW from Tariel Kapanadze

There is the link, he even gives the coil inductance and suggestions for capacitance.

My own coil has 80 turns in two layers and has an inductance of 78 mico H.
With the aluminium sleeve this drops to 76 micro H.

I hope this info is of some use?

Cheers Grum.

[Grumage]

This also appeared today.
Grum.

[dunfasto]

This also appeared today.
Grum.

its a play of coils but one coil must be cw and ccw so as to reduce voltage to feed to the transformer. if one uses only cw coils then voltage would be too high. the energy comes from ground. and intensifies in the cavity of alluminium. the tesla technique in magnifier. remove earthing and you get nothing. this is not nmr based.

dunfasto

[Berg]

Cool Video

I've built this setup but no result yet.
Don't know if resonator is wound on ferrite or not.

Гость УСТАНОВКА - YouTube

Very cool video. Thanks for sharing it.

[SunofFather]

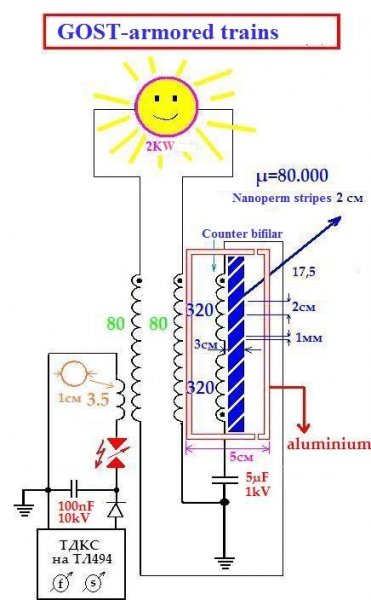

Here is a well described diagram including mechanical dimensions....

In you atachment not real Fel divice, it is modification by Tiger (also work, like say Tiger).
Real Fel divice replicate one men - Ikar. Here Fel and Ikar divice fel and ikar divice.png - Speedy Share - upload your files here

[Grumage]

its a play of coils but one coil must be cw and ccw so as to reduce voltage to feed to the transformer. if one uses only cw coils then voltage would be too high. the energy comes from ground. and intensifies in the cavity of alluminium. the tesla technique in magnifier. remove earthing and you get nothing. this is not nmr based.

dunfasto

Dear dunfasto.

I do not quite understand your post. Are you refering to the resonator coils or the main 80 turn coils? I am certain that the video shows both 80 turn coils running in the same direction!!

Cheers Grum.

[dunfasto]

In you atachment not real Fel divice, it is modification by Tiger (also work, like say Tiger).
Real Fel divice replicate one men - Ikar. Here Fel and Ikar divice fel and ikar divice.png - Speedy Share - upload your files here

hi can you post the image you are reffering to? fel and ikar device. not able to download your link.

regards

dunfasto

[dunfasto]

Dear dunfasto.

I do not quite understand your post. Are you refering to the resonator coils or the main 80 turn coils? I am certain that the video shows both 80 turn coils running in the same direction!!

Cheers Grum.

hi i mean that one coil must be cw-joint-ccw whether its on nano perm ferrite or on the outer. cw and ccw reduce voltage as well as create a pumping effect to draw from ground.

since you are following the image circuit where you have central coil over ferrite as cw-joint-ccw over nano perm and outer coils both same direction over the pvc tube. hope you are getting closer to self loop. this also works fine.

regards

dunfasto

[SunofFather]

hi can you post the image you are reffering to? fel and ikar device. not able to download your link.

regards

dunfasto

Click on Download: fel and ikar divice.png with big letters on top.

[dunfasto]

Click on Download: fel and ikar divice.png with big letters on top.

thanks

regards

dunfasto

[Guruji]

This also appeared today.
Grum.

Another schematic on Same circuit?!
