Thread to compare Nunez POE and Henrichs GAAV-coil

[Nanuk81]

???? ????? Garu?a Ta?it - Garu?a Ta?it

[Nanuk81]

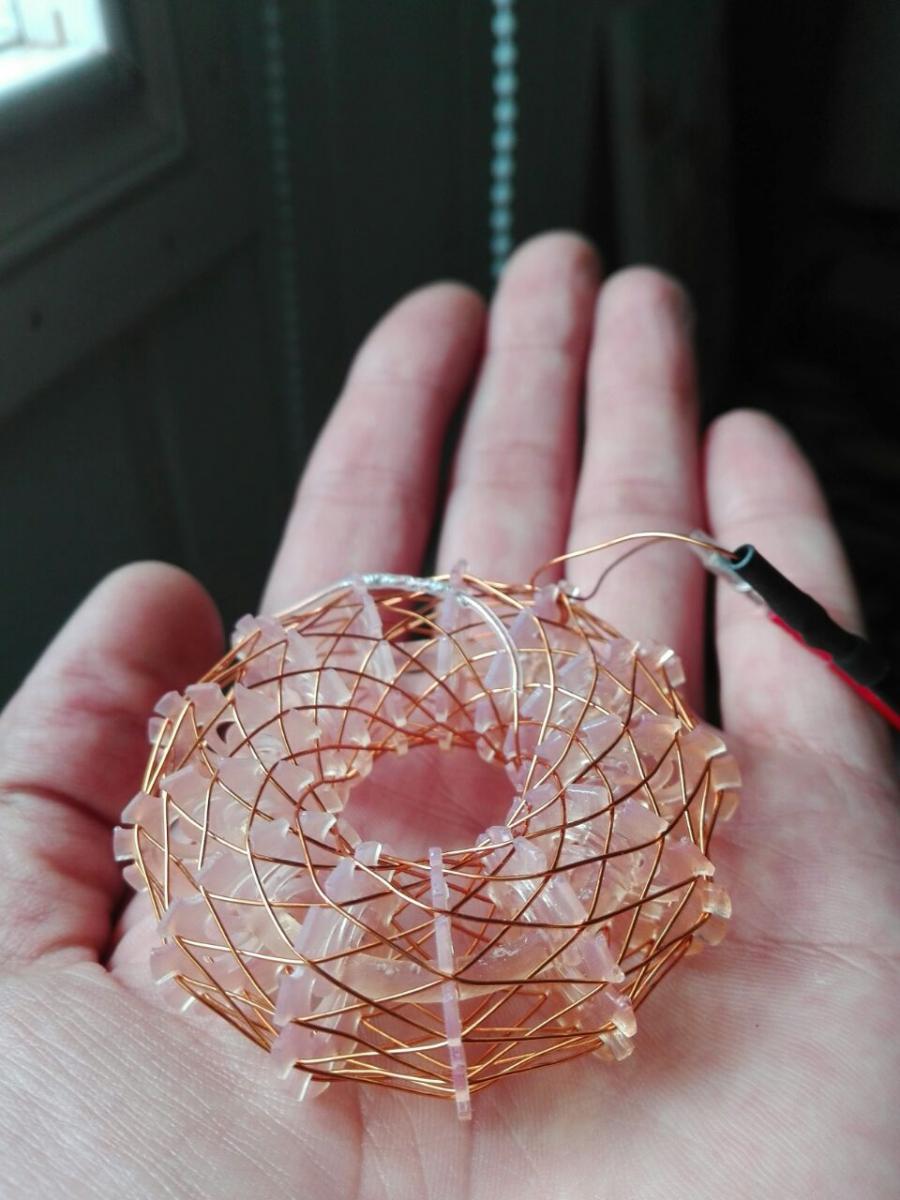

For a while I was 3d-designing in my head POE like coil which would correct the angle 2,5 degrees to two different directions. When I suddenly realized that POE has one frame less than it should have compared to a REAL ABHA-coil. And I have quite many of them printed from different formlabs materials for form2 SLA-3d-printer

[mikrovolt]

Thank you for sharing some of the latest discoveries.
I share the enthusiasm however the discontinuity remains
between math systems and electrical properties.

The mobius coil is a familiar coil to compare and contrast
from conventional, alt-energy, and also vortex perspectives.

The saddle coils, spider coils, Tesla coil have been studied
in conventional framework and have interesting magnetic fields
which makes them popular and easier to discuss when
claims of over unity are initially left out.

A careful introduction helps to identify various electrical characteristics.
The common ground possibly takes this form. For others it is
the usefulness in applications. The uncommon coil builders were called
basket weavers have from time to time been misunderstood.

[mikrovolt]

This is a little off subject it deals with Tewari and Vedic math and the space generator.
I would like to improve the historical accuracy of
contributions to vortex math related to energy conversion.
Possibly the book "Beyond Matter" might give some information that a person
familiar with Vedic math could show the relevant math to this prior technology.

I feel that there are many contributors and we will find as many differences as there are similarities.
Math being an exact science when a labor of proof is complete. Should give us an idea.
I am humbled by the great effort and ingenuity of all of them in this field.

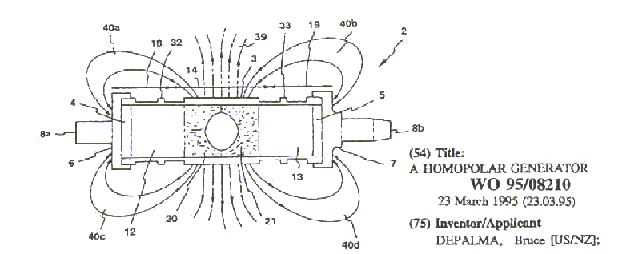

I show a diagram of DePalma N because I did not find a flow diagram of Tewari's machine.
I still find the nuts and bolts of these type machines to be puzzling.

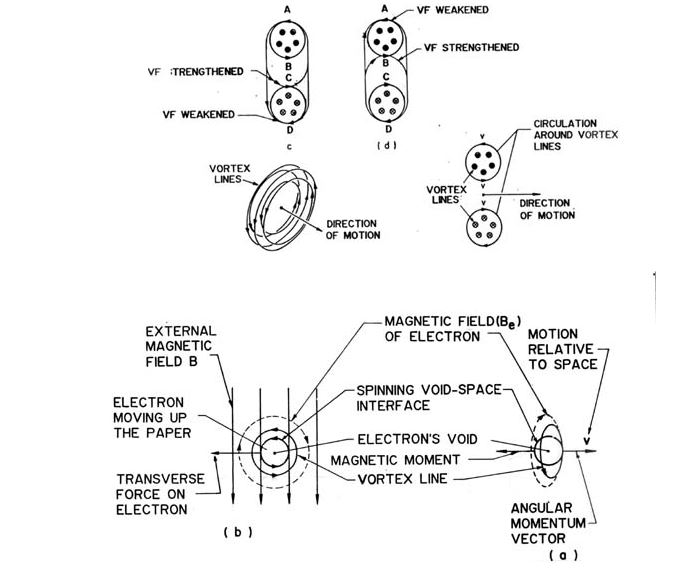

Paramahamsa Tewari VF vortex field found on rexresearch.

Paramahansa Tewari: Space Energy Generator

[mikrovolt]

I found an antenna design that uses non-conventional winding pattern.
This is not the same as ABHA and GAAV but does concentrate magnetic
energy that it receives to the center for it's intended bandwidth.

https://youtu.be/X9OMx1HJG98

It reminds me of how little we really know outside the standard models.
There are some other interesting studies going on with bifilars coils also.

The honey comb spider weave coil in tank have high Q factor such as 600
(I think it has to do with the layers being stacked, the litz wire, formed on
pure quartz rod or polystyrene, and keeping the inductor far away from iron)

Regarding Q factor, Wikipedia uses an analogy of a pendulum in air compared to oil

https://en.wikipedia.org/wiki/Q_factor

The explanation describes a tuning fork has a Q of 1000
We know sound moves as a longitudinal wave all is needed is
a large concentration of ions ( as charge carriers) and some way to move them.

Measuring Q and discerning the fields of different coil arrangements
that facilitate movement of ions more efficiently might involve
experiments in salt water.
