Hendershot Replications

[Joit]

Morpher can you please explain a bit more, where you got the Digits from ?
Why 2, and why 7-26. I am anyway lost, lol.

[morpher44]

hubbard used power-of-two harmonics

Morpher can you please explain a bit more, where you got the Digits from ?
Why 2, and why 7-26. I am anyway lost, lol.

Hubbard was assuming power-of-two harmonics.
This I glean from material on the web about Hubbard's coil.
That dump above are just the frequencies that range from 2^7 to
2^26. Those in the am band are marked so.
Hubbard didn't assume 60hz I don't think.

2.8Ghz (if NMR is assumed) implies his coil would produce a magnetic
field of about .1 Tesla. That is a believable number ... but I'm not
sure how Hubbard came to that. Perhaps he measured it when
making a prototype ... and then refined his coil.
It also assumes a certain current.... which would vary with load ...
so this may be a worse-case field.

Power-of-two makes sense in terms of multiple "paired" cycles
into the same time period.

btw, there is a thread here on "Hubbard Coil".

[morpher44]

my trouble with the buzzer

YouTube - "Hendershot Fuelless Generator" - Buzzer Trouble

[morpher44]

Negating Lenz's Law

Wow, this video and others by
user/ThaneCHeins
are pretty impressive.

What interests me here is this idea of PULSING via a high-voltage-coil
to thwart lenz's law.

These flux pulses can manipulate the inductance to bring
it lower, allowing for more power to flow since
reactance drops.

There is something very "magic" about pulsing flux and
the effects of a collapsing magnetic field.

The Hendershot coil likely has pulsing fluxes all around it and
may be benefiting from a similar trick.


YouTube - NEGATING LENZ'S LAW

cut and pasted from the "info":

"At the critical threshold speed or frequency (dictated by the coils inductance) the HIGH VOLTAGE COIL ceases to act as an INDUCTOR (storing energy in the electromagnetic field and producing a Lenz's Law repelling action to the approaching magnetic field) and begins to act as a CAPACITOR (storing energy in the electrostatic field between the wires)."

[Joit]

Reminds me anyhow at the Video of a Super JT Post #105.
At a certain Point from Resistance at the trigger coil, the Voltage switch Polarity.

[morpher44]

dc meter?

Reminds me anyhow at the Video of a Super JT Post #105.
At a certain Point from Resistance at the trigger coil, the Voltage switch Polarity.

Hi Joit,

If that meter was in DC mode, I suspect there is a DIODE in the circuit
within the meter. High voltage pulses can cause current to flow
across the diode in the wrong direction -- breakdown.

A Joule Thief doing high voltage pulses like this probably should
NOT be measured with a DC volt meter.
An AC setting would be a bit better ... giving you more of an
RMS reading.

Or, an oscilloscope might be a better way to see what is occurring.

[mlurye]

Here is the book by Mark Hendershot Suppressed Inventions - Google Books Based on this book I do belive that Lester Hendershot used same principles in his generator as in his motor.

[morpher44]

Non-Linear Study

In this video I attempt to show the non-linear behavior of the Hendershot-like circuit I'm experimenting with. First I show what occurs with a regular 10:1 transformer, using the scope in X-Y mode to show input as X and output as Y. Next I show same sort of thing using the Hendershot-like circuit. Unlike using a relay, which produce uncontrolled jitter, the pulse generator I'm using has a more stable pulse to enable the study of what looks like "bounded chaos".

YouTube - "Hendershot Fuelless Generator" - Non-Linear Response

[morpher44]

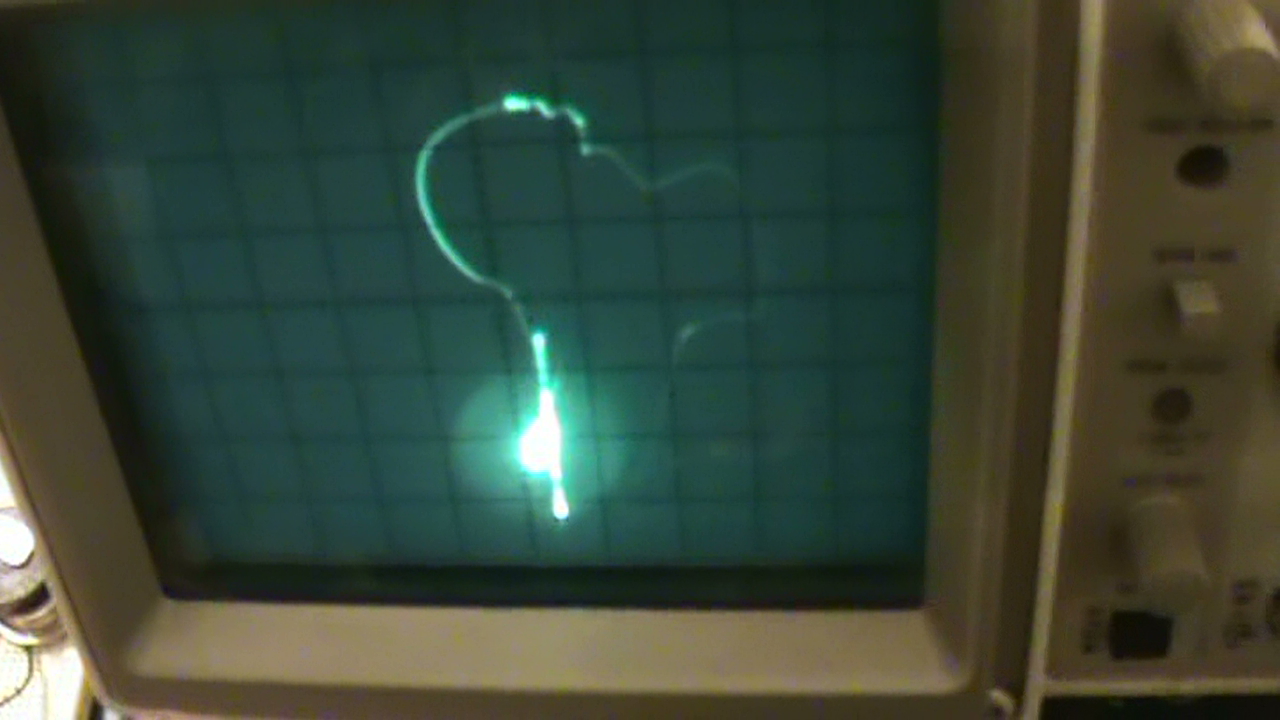

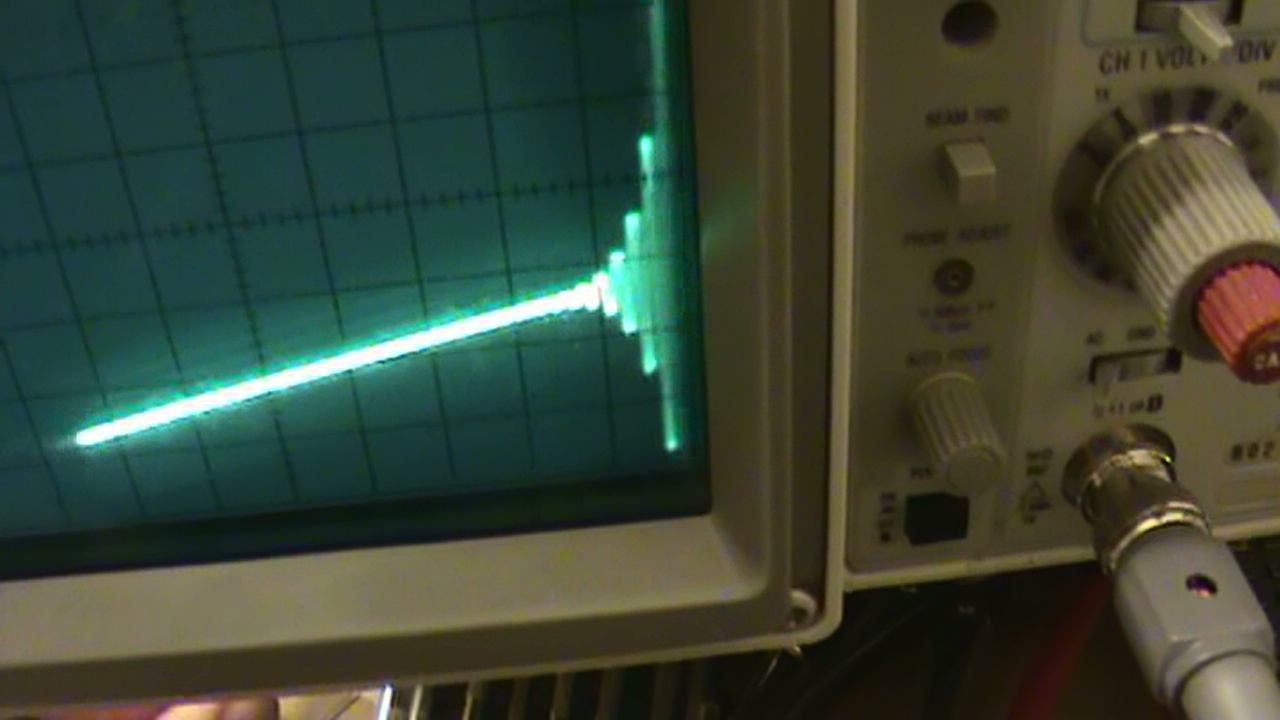

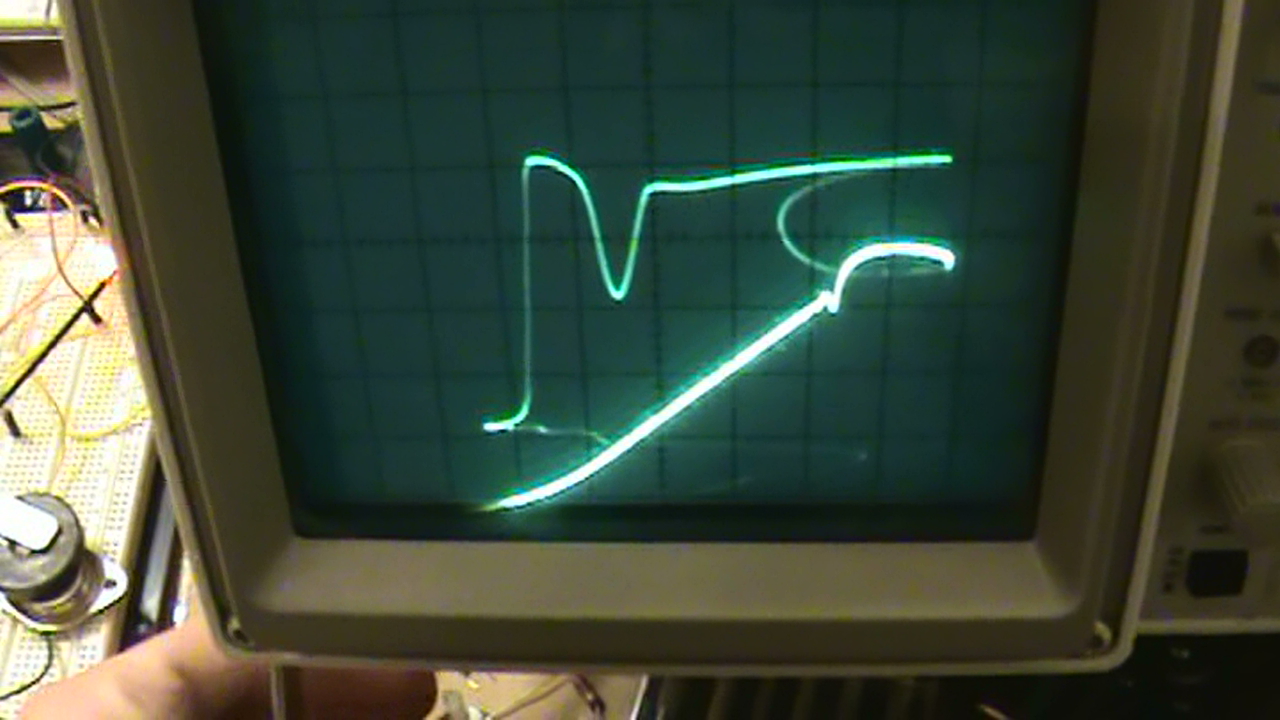

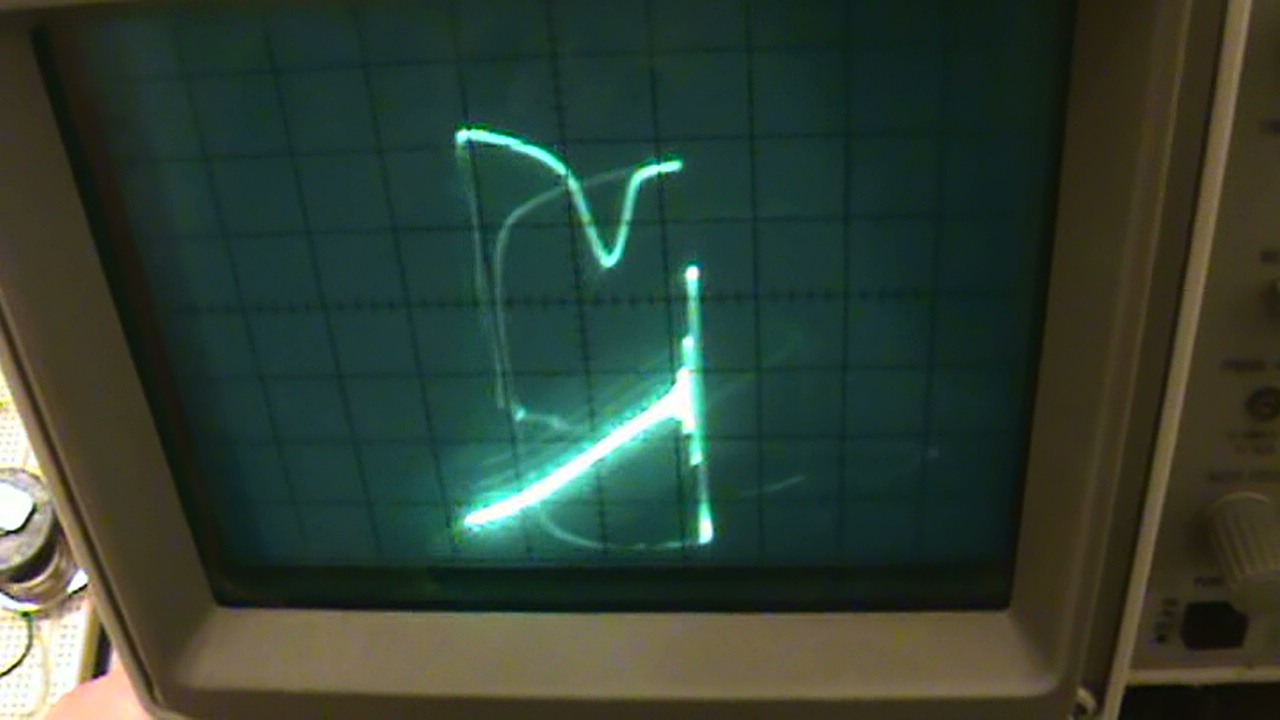

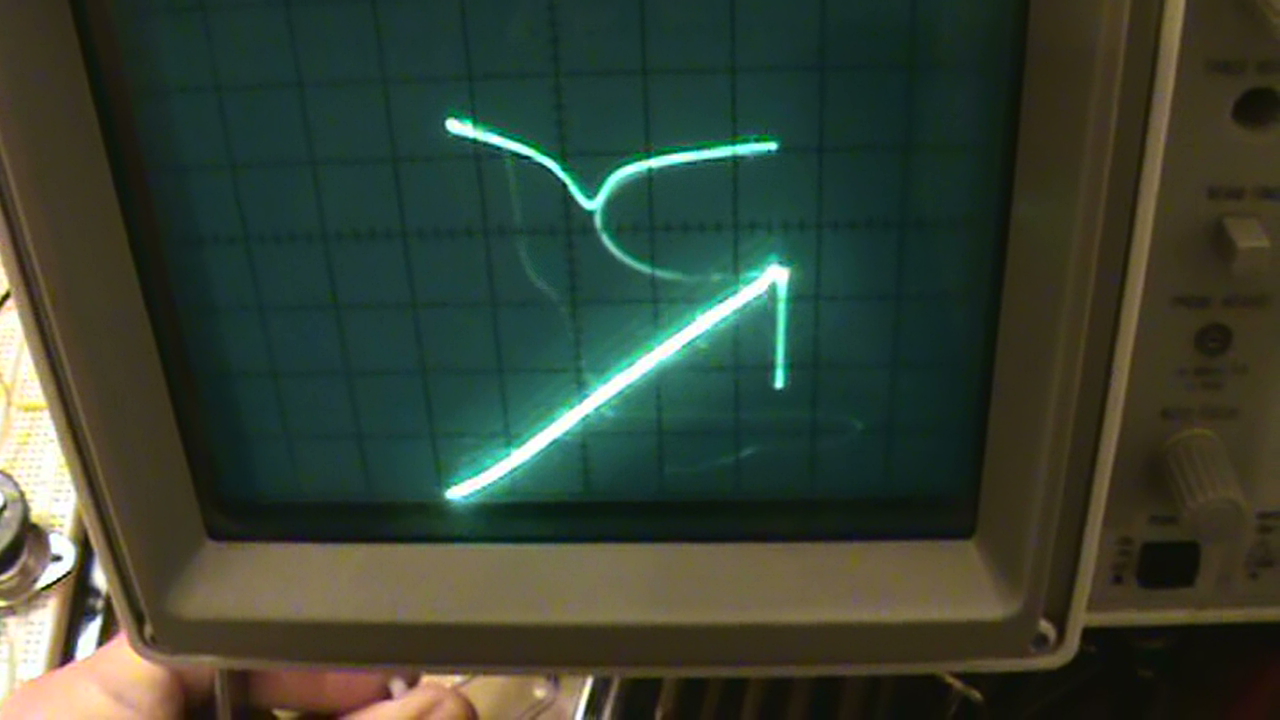

Some X-Y screenshots from last-nite

These X-Y screen shots show the relationship of the waveform pulsing L2
(on X-axis) and the waveform arriving to the bridge-rectifier load (y-axis).
One pattern looks like Africa.

[Joit]

Ok now tell us, where/how the Fluxlines do run, or the Magnetic Field looks like j/k

[morpher44]

fluxlines

Ok now tell us, where/how the Fluxlines do run, or the Magnetic Field looks like j/k

@ Joit
I'm not sure what your asking.
The cylinder has 4 coils around it: L1, L2, L3, L4 on a basket weave form.
L1 is wrapped ABOVE L2 ... so I think of them as being
essentially a transformer with a turn ratio ... on the order of 1:5.
L3 and L4 side above L2 and look to me more like "tickler" coils
as you would find in regenerative radio designs of his day.
They too would inductively couple up-and-down the cylinder.
I used a 5 in diameter paint can which has magnetic permeability
which would INCREASE the inductance.
Also in the circuit is a standard 5:1 transformer and some big
AC caps 30uF & 100uf. So this circuit has lots of complex
inductance and capacitances, making circuit analysis a bit tricky --
at least for me anyway since I'm not skilled in
analog circuit analysis. People have tried to analyze Hendershot's
circuit in the 70s.
More recently, the guys in Germany attempted a computer
simulation.
This is well beyond my capability. I took the more
naive attitude of "lets just fire it up and see what happens...".
All I can prove ... and its obvious really ... is that phases
will shift, waveforms will change, etc. depending upon
frequency.
For the coil I've wound, and the circuit I've put together,
I appear to get the highest wattage at around 300 to 500hz --
which confirms my suspicion that we are dealing with
"buzzer" or "relay" frequencies here ... not Radio frequencies.
This makes sense since power generation was Hendershot's goal.
So unlike Moray, I believe Hendershot's device is not a Radio
receiver for the AM band ... but rather is concerned with
tuning much lower VLF frequencies.

Flux will run up and down the cylinder yes ... but there would
also be lots of magnetic JITTER from the solenoid-magnet-bar,
which I suspect is providing a large feedback path for energy.
I'm struggling with the mechanical construction of that
device. A buzzer or relay is a good model ... but not quite
what Hendershot had. I think Hendershot was putting a magnet
into resonance -- which might yield some surprises (similar
to Floyd Sweet).
I think also that I need DUAL coils and for the solenoid-magnet-bar
device to CUT the fields back and forth ... spraying fields over
to the two coils for this feedback path.
There is lots more to investigate here ... and I do what I can ...when
I can.
Thanks for participating...

[Joit]

[morpher44]

compass fun

@ Joit

Yes the claim that Hendershot's original motor design would
function only when pointed certain compass directions: N-S vs E-W
leads one to conclude that the earth's magnetic field plays a role.

I tried to devise an experiment to get to the bottom of that and
came up with this.

YouTube - Magnet - Compass - Solenoids (Hendershot Mystery)

The horseshoe magnet, when there is a bar over it, has its
field tweaked a bit and a compass can be placed in a certain
location relative to it, and easily made to spin by
pulsing a solenoid.
The pulse gives just the right sort of push to make the needle
rotate around.
So I imagine that if you could do that in a certain ZONE ...
and place a cylindrical coil there, that that coil could
inductively pick up the spin.
With a left-and-right coil ... one might spin one way ...
another the other way ... creating a phase difference.
With a phase difference, you can set up a potential difference ...
a voltage.
Further, the rotating flux in that location will
alter the inductance in the coil (if it has ferromagnetic material)
just as was done in the Magnetic Amplifier designs.
In this way the inductance would be non-linear and
perphaps that feature is an important ingredient to the Hendershot design.

Yes I'm aware of the TPU stuff which has similar features.
The Steven Mark TV implosion story is a fun story.

Unlike the TPU, Hendershot deploys two cylinder shaped
coils which may ... somehow ... pick up the magnetic field
of the earth as the planet rotates. We are rotating in a
HUGE generator ... Hendershot reasoned that all we have to do
is create a means of cutting those 50 microTesla field lines.

The "Induction Compass" did just that and produce a small amount
of power to move a needle so that pilots could navigate.
Hendershot was building designs to improve that device.
As such, he would be winding "generator" coils and experimenting
with magnets, etc.
That devise had a spinning stature that would spin when the
air craft was in-flight ... and a bit of wind was directed down to
spin essentially a pin-wheel driving a shaft, rotating a coil
which would produce more or less current depending upon its
orientation to the earth's magnetic field. No magnet was used
in that device ... the earth's field itself was used.

Re: thin wire ... cold electricity
I would love to witness such an effect .. but it is not
in my experience ... yet.
It is certainly true that small wires can carry very large voltages
with low current. You can ... in another part of the circuit,
turn high-voltage ... back to low voltage .. higher current ..
using transformers. So the notion of pulling a large amount
of WATTS from small wires is doable by just bringing
voltage up high.
So for example, if you want 500watts thru 30AWG wire,
if your voltage is greater than 581 volts AC RMS, and your current
is about .86 amps max ... its doable. The wire would be HOT
and just about to have issues.

I don't know if Hendershot's way is easier than Steven Mark's TPU.
Mark was so secretive ... its not clear what he did.
In the Hendershot case, the disinfo surrounding the material
is so dated now that it might be easier to reverse-engineer
Hendershot's devices.

[morpher44]

source: 1.5V D cell, Load: 2 LEDs

Here is a demonstration of running a 12VDC relay and 2 LEDs using the Hendershot-like circuit I'm experimenting with. The power source is a 1.5V D cell and the current draw is less than 30 mA.

The relay is 160 ohms, has a pull-in voltage is 9V min, nominal current rating is 75mA. I'm amazed that I can make the relay buzz and drive the 2 LED load using this Hendershot circuit, a D cell and some magnets.

YouTube - "Hendershot Fuelless Generator" - 2 LED, 1.5V

These results are not unlike what can be obtained with a Joule Thief
circuit ... yet this Hendershot circuit is also driving a buzzer with
less than 30mA from 1.5v ... that is less than 45mWatts.

[morpher44]

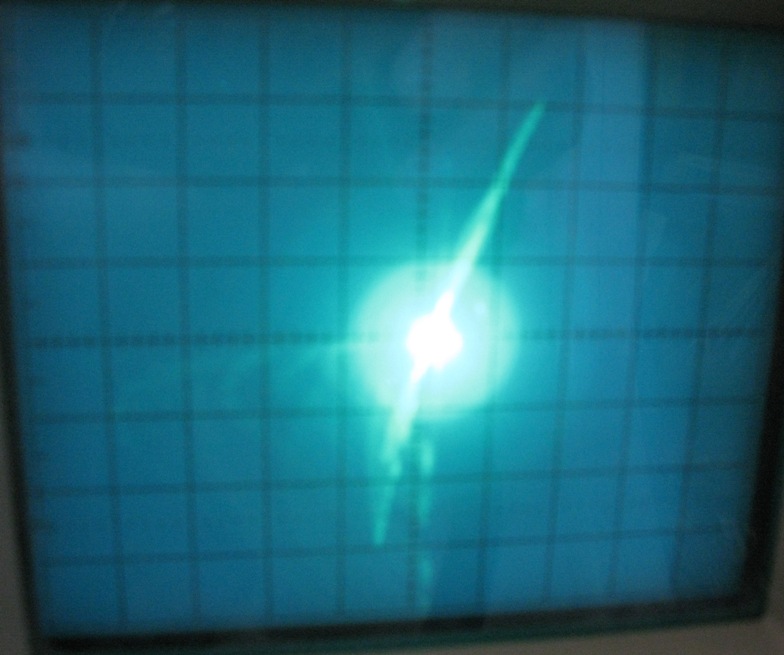

X-Y shot when buzzer drives the circuit

With the 2-LED load, and the 12VDC relay with magnets attached to the Hendershot circuit, I thought it would be interesting to look at the X-Y plot
of L2 relative to L1. On this screenshot of the scope we see L2 on the x-axis at 10 Volts/div. L1 (the tank circuit) is on y-axis at 2 Volts/div.
L2 and L1 have a turn ratio that is about 5:1.

Notice that the positive x and y quadrant is mostly a straight line
as would be expected with a transformer.
The negative x and y quadrant, however, is a swirly series of
ringing curves, taking up that quadrant.

This is a very interesting observation ... which I can't quite understand.
The back EMF from the coil as the relay pulls the lever down, disconnecting
the 1.5V battery from the solenoid, enters the Hendershot circuit as a negative SPIKE ... subject to lots and lots of jitter. So the energy, and its response on the tank circuit, will jitter around in that quadrant.
I would have predicted a fuzzy line ... but this looks very different.

It is possible the scope cannot handle this sort of comparison.
I read somewhere that the X-Y feature of a scope only
functions properly when the waves are sinusoidal.
I'm no expert on analog Oscilloscopes so I have no insight
if this is so or not.
