ACMMJB Device that does not notice it load, Underunity to start with

[JohnnBlade]

By the shifting of the poles of the ring A a powerful dynamic inductive effect on the coils C C' is produced.

[JohnnBlade]

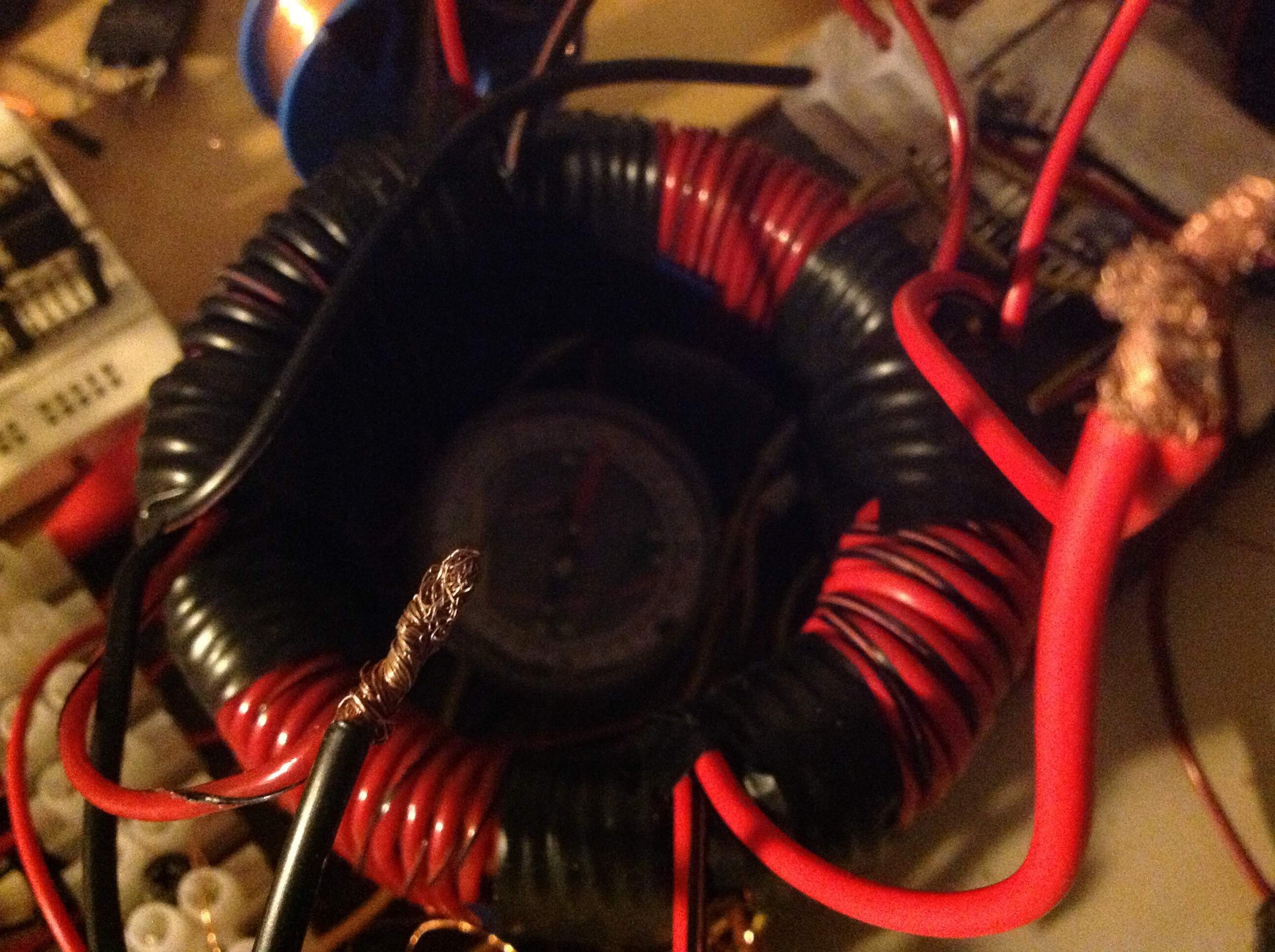

This is my latest version, no movie of it yet, but she is getting buffed up

[mbrownn]

Your kinda lonely on this thread

Did you try spinning the generator and using pick up coils at the same time?
Testing ACMMJB TPU ECD simple generator test setup - YouTube plus Testing ACMMJB TPU ECD QEG New Personal Record + DC Motor on Output - YouTube

Measure the speed and torque and add that to your output. I personally believe that magnamotive force is a free by-product so this should give you a new record. you may have to alter the position of your pickup coils because having a lump of iron close to your coils will change the shape of the magnetic field. The iron will also introduce a loss so the pickup coils will see a little bit less but I believe the total will be greater

[JohnnBlade]

Hahaha i know especially just got kicked out of be-do qeg forum,

Your kinda lonely on this thread

Did you try spinning the generator and using pick up coils at the same time?
I did, and i added my strongest neo magnets, while turning, and i did get energy on my detector coils, and strong to, but when the those pickup coils are to close they start to vibrate to ( you can really feel the coil shaking in yr hand while the magneto force slices true), and cause a drag on the motor, and that is back to the copper drag effect.

Testing ACMMJB TPU ECD simple generator test setup - YouTube plus Testing ACMMJB TPU ECD QEG New Personal Record + DC Motor on Output - YouTube

Measure the speed and torque and add that to your output.
If i had a rpm meter i would have tested that to, i owe you this one for ones i have a rpm meter.

I personally believe that magnamotive force is a free by-product so this should give you a

Do you mean the magnetic vortex around the device, and yes, cause thats where you have to harvest from, collect as much spining magnetic force true the pickup coils. But when forexample placing 2 detector coil behind eachother, close to 2 primarie coils the first one will take more energy, and leave a bit for the 2e coil behind it, so no real sharing of same force, but when adding more collector coils on the toroid it will share, but it makes a big difference if you hook everything up the right way, ac doesnt really mean you can hok up the light any way you want to, trying both ways to light an ac bulb will show you different amp usage on output.

you may have to alter the position of your pickup coils because having a lump of iron close to your coils will change the shape of the magnetic field.
Tesla mentioned that i could add iron wire over the pickup coils to boost the effect, but that iron wire is real stiff to bent or turn, but i might try that to, cause it will magnetize that iron to, and boost the effect more since we are harvesting magnetic force.


The iron will also introduce a loss so the pickup coils will see a little bit less but I believe the total will be greater

Consider the extra iron just a layer to boost the field, the field already turns, so hook up anythjng that can collect the moving field, instead of makin a magnet turn around.

Thank you Brown!


Greets JB

[JohnnBlade]

@MBrown,

When you talked of the generator did you mean the dc motor that turns the vacuum cleaner coil ( my socalled flywheel)

Testing ACMMJB TPU ECD QEG output load and simple gen setup - YouTube

( sorry the ringing is an irritating noise)

[mbrownn]

I cant open that link.

No, this one Testing ACMMJB TPU ECD simple generator test setup - YouTube

[Joit]

johnnblade
You really get kicked from the QEG forum?

You asked some legit questions, what a lot as first do. I dont even see it offending in a way like you did post it at the Witts thread from Vidbid.
Thats really a poor reputation when they act like this, it been so simple questions what are easy to answer. To start more and more to stink.

[JohnnBlade]

That one is cools, but since on low frequency it uses more amps for input, but with that same power you could run 2 rotors, when placing the device sideways, so 2 flywheels might be posible.

As soon as the frequency goes to high the amp draw on input goes down, whereby the field also get smaller and to fast for the rotor to keep up. So after max power the motor just stops and shakes left and right. But that doesnt mean you cant pickup energy around the device, even if the motor stop running.

I cant open that link.

No, this one Testing ACMMJB TPU ECD simple generator test setup - YouTube

[JohnnBlade]

johnnblade
You really get kicked from the QEG forum?

Yeah, cause of my last post, but cools they want peepz who they can fool better.

You asked some legit questions, what a lot as first do. I dont even see it offending in a way like you did post it at the Witts thread from Vidbid.
Thats really a poor reputation when they act like this, it been so simple questions what are easy to answer. To start more and more to stink.

See i dont mind they device, but the whole hype around just doesnt sound right.

We all seen more free energy devices come and go, and i know a principle can work like this, and even have ways to boost a principle like that.

But first presenting a device out of the blue, crowd funding, bussiness model, hope, and all other exotic stuff. But never yet simple stuff like we all show when we show.

To keep it simple, Yr right

Greets JB

[mbrownn]

That one is cools, but since on low frequency it uses more amps for input, but with that same power you could run 2 rotors, when placing the device sideways, so 2 flywheels might be posible.

As soon as the frequency goes to high the amp draw on input goes down, whereby the field also get smaller and to fast for the rotor to keep up. So after max power the motor just stops and shakes left and right. But that doesnt mean you cant pickup energy around the device, even if the motor stop running.

What your telling me is it will be a balancing act.

So maybe a lighter rotor and closer to the toroid to give a higher speed, I believe torque will be proportional to amps so maybe run it at maximum amps. Your recovery coils would have to be tuned to operate at that frequency too, a lot of work and maybe impractical. The rotor shaft could pass through the toroid.

[JohnnBlade]

Best is just to harvest most of the field around the device, using a rotor can slow it down when on moment, but when adding litle presure to the rotor the rotor wil go faster.

tesla would also connect 2 or 3 of these devices in series or paralell, cause one can run a 555 timer circuit and power a flyback, so one can run another, and you just add pickup coils, but input stays the same.

Now im trying to mix high voltage with the picked up currents. But my TO 3055 broke down, and waiting for a new order to come in.

The coils will give any effect on any frequency, its only finding the sweet spot of where the most power comes out of, and once all is in resonance, the whole,circuit and everything connect runs at that frequency, and from there its looking arround again, and testing new setups to see what make the light shine more brighter then before.

What your telling me is it will be a balancing act.

So maybe a lighter rotor and closer to the toroid to give a higher speed, I believe torque will be proportional to amps so maybe run it at maximum amps. Your recovery coils would have to be tuned to operate at that frequency too, a lot of work and maybe impractical. The rotor shaft could pass through the toroid.

[ewizard]

LOL - I like your philosophy for building as you said in the first post. I haven't had a chance to read the rest here but will a while later. Good luck in your builds

[Pembelton]

And that bring me to a question?

Does anybody have a good solid 2 phase circuit without using a 555 timer, and i dont need self resonance circuits as like a joule thief, cause a self resonance circuit is not also tuned to deliver the most output. It must be tunable

You may want to check the circuits in this thread?

Tesla Patent 382282, and all related to his transformers/converters

They may help, this guy is doing the same thing you are doing.

[JohnnBlade]

@Ewizard, Thnx!

@Pembelton, Thnx for the link, i havent seen that post, but i will check it out.



Now im busy winding an exciter coil, and see what extra effects i can get out of that.

Greets JB

[JohnnBlade]

Made an extra coil to be used in tests with the ACMMJB

I used about 50 grams of copper, 0.22mm, +-980/1000 turns

The core is a plastic pipe with a diameter of 4.7cm

Have not hooked it up to my multimeter to measure the ohms, my thumb needs a rest from winding this coil

Testing ACMMJB TPU ECD QEG Added an extra pickup exciter coil - YouTube

Greets JB
