Hi Pete
Good Man , now listen to this. You may get better or worse COP results from input output multiplications but your phase will shift over on you and without the COS of the phase angle you would be fooled. Yes I see all your videos on the scope for the scopians

Unless you have a 2 channel scope (Obviously you do) you can't get the phase angle of the PRIMARY. Forget the secondaries, watch that PRIMARY especially when loading you will see it shift with every alteration to the circuit. Yes a resistive load is the best and diodes are not resistors only.

The filament bulbs are what we all use, as instructed in the BiTT plans.

Also tuning with caps may improve voltages on the output but don't run the phase angle to far. Try to keep the phase angle shift closest to 90 degrees. This will give you the best results.

Michael Central USA




Hi Michael.
I deleted the video because there were some issues with 180 out of phase. The unit switches at the drop of a hat just like you said it would. I have purchased some 1 ohm ceramic resisters, hope they are the right ones for testing. The guy at the electronics shop had no idea of what I was talking about when I asked him for current sensing resisters. LOL. I have come to a stand still with things because I do not have a variac so I will have to make one or spend another $250 on one. Will have to consider my options before going ahead.

[BroMikey]

Here is another OVER-UNITY TRANSFORMER

https://www.youtube.com/watch?v=X-JC99uqQEU

[BroMikey]

1929 bi-toroidal transformer Patent

https://www.youtube.com/watch?v=FvV40BWgByw

[BroMikey]

BiTT testing

https://www.youtube.com/watch?v=DCti5C1Rqjw

[kEhYo77]

BiTT setup FINISHED!

Hi.

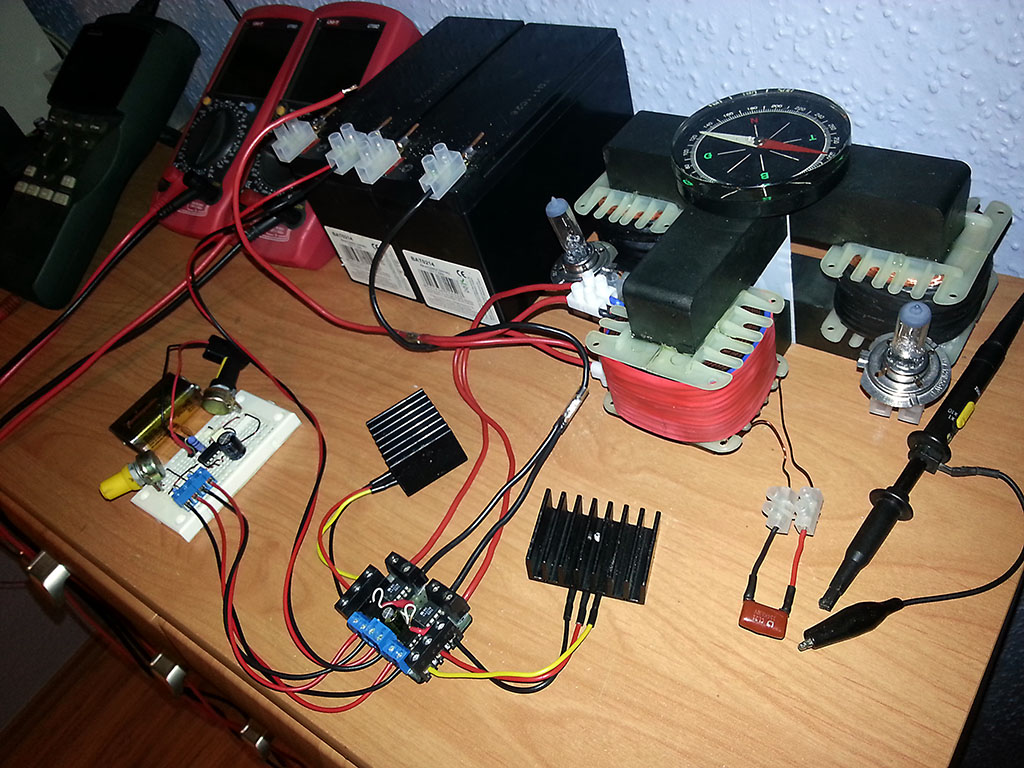

Finally I have just finished wiring my BiTT setup!
Testing soon so stay tuned...

[BroMikey]

Hi.

Finally I have just finished wiring my BiTT setup!
Testing soon so stay tuned...

Yeah that is so nice. I like your setup a lot. You have put forth much effort.

I look forward to your results and measurements. I like your choice of bulbs.

Mikey

[Doogy2Shoes]

C cores are very cheap things to get, especially from Alibaba suppliers who are sometimes even willing to send custom made free samples (if you can convince them you'll be buying many).

In my opinion this effect remained for too long in the mW and perhaps slight W range. Noone has ever took this to even near kW range due to core and design limitations. This could be easily solved by using cut low loss amorphous C-cores that are readily available. Attached is such design example.

What this design doesn't show is the extra cut line, so essentially the C core is cut in half again in order to facilitate the insertion of the coil AND the equalization of the reluctance of the flux path.

thanks for putting that forward. Any developments on this application
of cut low loss amorphous C-cores? this sounds intriguing, does
anyone have any thoughts on this?
