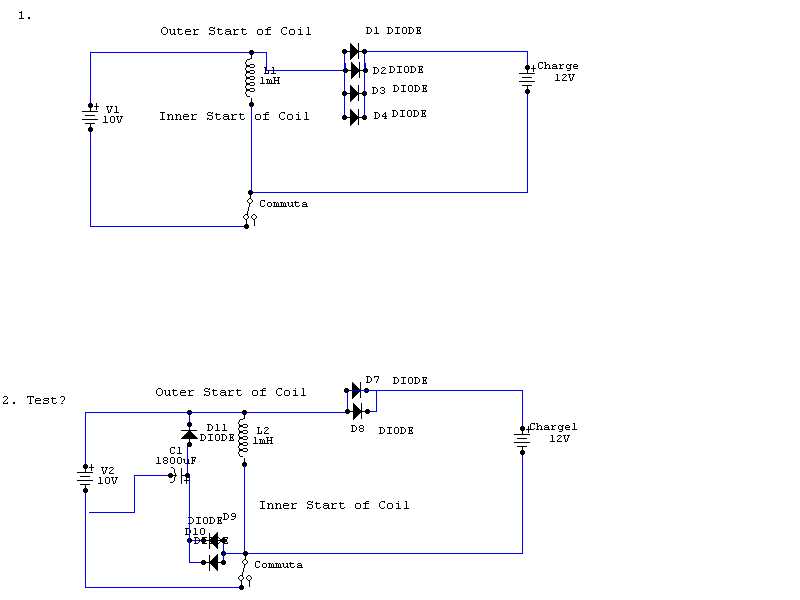

Did you start any experimenting with the schematic you show me?

Why do you have diodes in parallel, I think it is better to put in series because we need to try to restrict HV spikes, I made something similar to what you did but in series Diodes. I will make video of to show some progress.

[Joit]

And, well, i think, right now is the Joule Thief a good Option too, for charging Batteries.
It has a high working frequency, and should work even better then a Bedini,
and is way lesser Effort.
The Frequency is that, how often a Spike comes in, it is the Point where the N field repeat itself.

[uusedman]

I am recycling some kind of energy from the newman. with 4 diodes (1n4001) in parallel on the Plus side to a HV 500 ceramic cap, however, the capacitor is only charging to 20 volts. Furthermore, my neon bulb is lighting up from the collapsed magnetic field, that means, we are only recycling the BEMF and the collapsed field is dissipating.

Tonight I will make video.

[Joit]

Either the spikes are to fast, or may you try the Diodes in Serie.
What Source do you use to loading the Cap?

I think, there is still a relation between the input power and the power of the Spikes.
So Hvoltage will give a average amount of load.
And Caps are anyway not to best, to keep charge, Batts are better for it, someone mentioned, the electrons flow slower there.
I got now with my setup spikes max 1300V down to 20v with a 12V/7,5Ah source, avg 60~400V.
With a 9v Block i get about 60V spikes.
last Cap i did charge, did load up to 9V with the 12V Source.
But its 2 63V/2200 in parallel. Can be, that it cant keep the charge because hes low, and the Current hits through.
Right now you dont need to make another Vid, i think, to much effort right now.
I going to add more Wire and rewind my thing.
Chuck2na mentioned at the Comments from PT5 or PT6, when you do the Iron out, it will give higher Spikes. Guess it was at the new machine.
I think he do talk about the Shaft.

[uusedman]

I just bought a oscillscope and will make a video. Maybe you can help me understand how i can use my scope to better tune the Newman motor.

Are you suggesting that I should use iron as my shaft? i think i am using a zinc plated steel shaft.

[Joit]

Uh, i hope you got a cheap scope. to buy one is still some Money.
No, i dont suggest to put it out.
At his Vid he said at the CommentsHere is a good Pic from it, related to This Page.
There are still more Pics about the Commutator, take a look at it.
I wired my Coils now standard forth and back, standard even, that it act like yours.
But i still think, the way is, that you load the Runbatt too, otherwise, it will maybe drag a lot Power out of it.
It are like kinda repeating Cyles, where it takes and push back.

Right now i play with a dead Batterie, but it get a load, run the Motor for a While, and then get dead again, then come back after a while with good torque and same again. Seems as if it charge with delay.
But i get anyway all time other Results, depends how my Coils are made.
Still need to play a lot around with it.
Maybe i try to wrap a open thin wire Coil around it and try it again.

For your Scope, you got 2 Connections, Minus and Plus.
You attach Minus mostly to Minus, when you only wanna measure the Coil then attach + and - between the end of the Coils.
You can set the Voltage range on it, there is a Button Probe, where you set usual 1:1.
And then you should be able to see the Spikes.
Mine can handle about 200V, maybe the spikes even higher, but i didnt try.
I still measure at this Range, i keep the sourcebatt lower, i think, then i am save.

[Joit]

Its Page2, (wont let me Edit anymore)

[uusedman]

I need to make my second part of the Motor, the 2nd inductor of the newman. Hopefully, I can get started on it today. those pictures of the commutator i seen them before, however, i dont understand about shorting the coil, should that energy be stored or just shorted to get the spikes. i been hacking at this motor for months, I think it is time I make a commutator like Newman should.

[Joit]

I only wonder, why it worked for Chuck, he used this simple commutator.
I made now equal Coils, each side 40 rounds, 20 each layer.
Yesterday i had one side bit bigger, and seems worked better, or my new switch is crap. Now i wrap some thin wire around it.
I ll hook up the scope and load some Caps to see.
But i guess Caps cant hold the spike very well, that why they dont charge that well.

But sometimes i think, the informations at some Pages are anyhow incorrect.
When i connect plus to outside start of the Coil it works better,
against, what the pic shows, that minus is inside.

[Joit]

Or maybe you can try to wrap speaker wire around it, would be a fast try.

[Joit]

Mmm, got another Idea yesterday.
You have 2 motors. Hows about you put the small one at the big one on top, and let the end open, that the small ton is over the big one, and maybe otherwise, for trying,

[Joit]

For me it does look like the Magnetfield from the Coil is kinda wandering.
With shorting the Coils i guess, he reset them.
And maybe you want make kind of a Wheel for the commutator.
I think, to find the right Point at the small shaft is harder as at a big Circle.

[byjoveoldchap]

Hello Everyone,

My introduction into free energy was with the Newman Motor. My motor consisted of about 9 miles of 30 guage wire of each stator. I have ran some experiments and now I am hoping to move to the Bedini motor.

However, before I move on, I want to make one last experiment and dont know how to put it together, but the idea how to do it is present.

How can I collect the BEMF from the Newman Motor? Any diagram or picture help will be greatly appreciated.

UusedMan

Ray-O-energy covered this, I think this video will help.YouTube - newman motor + Peter Lindemann circuit
