Water Sparkplug

[ashtweth]

Hi Guys , just finished updating the PDF and NEW RELOADED plasma spark video, will be all posted tomorrow just ripping and encoding, sure thing guys i knew every one was busy just thought some one might take a look when ready , thanks guys will mail Naresh now.

[Shane Jackson]

Hi Guys , just finished updating the PDF and NEW RELOADED plasma spark video, will be all posted tomorrow just ripping and encoding, sure thing guys i knew every one was busy just thought some one might take a look when ready , thanks guys will mail Naresh now.

Hi Ash,

I noticed my PCB's made it to the PDF. Thanks for the link. I updated the picture as the lighting was bad on the other.

On a side note, Guys be careful if you get one of my PCB's. With all the diodes and resistors, you could easily go cross-eyed!!

Just finished up one this AM. I had a bad diode causing my voltage doubler caps to pop. Also fried my Caddock resistors all for a stupid $.02 diode!! My advice, test the diodes before applying voltage.

When I get it all mounted in the case I will take some pics and post them here.

Shane

[ashtweth]

Hi Shane, thx mate will add in, i forgot to give Shane a plug DOH Ps, Rosco is working on some thing interesting guys will have some more news later

[aljhoa]

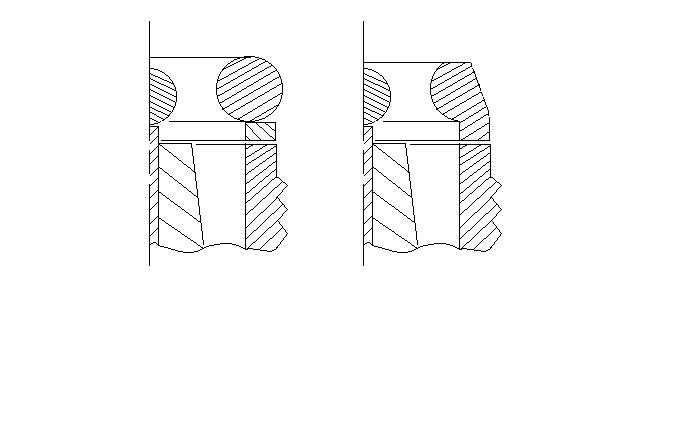

New Plasma Spkplg Design


Any comments?
Al

[moose 53]

That is basically the cross section of the second generation Firestorm plug , the one with multiple balls around a center ball . It is said to be better then the first generation Firestorm plug , the one with a center ball surrounded by a cage. I have not tried one yet though.

[ashtweth]

Water_Spark_Plug_(reloaded).avi

This is the pinnacle of open source engineers efforts regarding plasma spark research(PDF is on the panacea uni site), it shows how we have brought more attention and awareness to this NEGLECTED plug research (will be showing it on TV this year) and also how endorsing a non profit org (panacea) would enable us to CONTRACT a company to produce these SUPPRESSED plugs as an environmental incentive.

Game over corporations.

Also in the video (updated material) we show a way to secure all patents to do with FREE ENERGY, as they all could be registered with the non profit orgs research and development center (through legislation forcing the patent office to do so) Then a company is given 2 years in order to produce the technology or their patent rights are diminished (this would of stopped the EV1 electric car case)

THANK THE OPEN SOURCE PLASMA SPARK ENGINEERS FOR THESE IDEAS NOT ME ASH I REMAIN HUMBLE TO MY BROTHERS

new plug results are in there and more.
thanks the open source community

People have been emailing the panacea admin asking to help produce Rob kupra's plugs, so is all our efforts in vain?

i think not there is MUCH more to come.
Thanks to Luc , Aaron, Peter Lindermann, Greg and ALL open source engineers.

Ash

[Robert E.]

new plug

[ATTACH]2397[/ATTACH]
Any comments?
Al

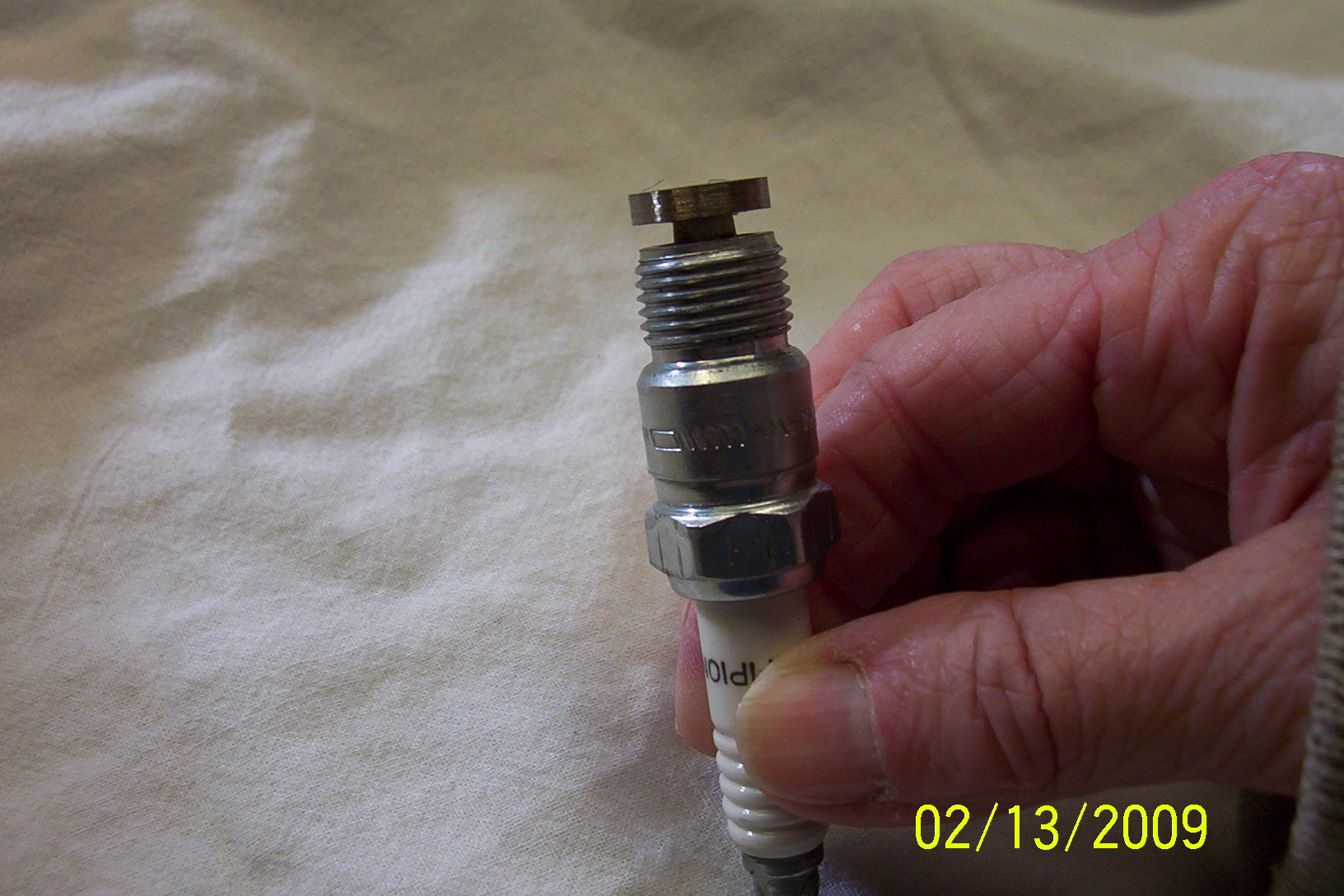

Or how about this design, So far with 500 miles on them they seem to run as good as the firestorm. These are made of steel and just run on standard ignition. The material could be changed to run on plasma ignition. They are much easer to build. Bob

[Shane Jackson]

That is basically the cross section of the second generation Firestorm plug , the one with multiple balls around a center ball . It is said to be better then the first generation Firestorm plug , the one with a center ball surrounded by a cage. I have not tried one yet though.

HAHA so there is a V2 firestorm and you cannot even get a V1....

I think the V2 may be easier to make. And since it is not patented, we should have some made! I contacted a company in china about making the original firestorm plugs and they would not respond to me.... perhaps we could get these v2's made..... I will put up some of the initial $$.

[Aaron]

new firestorm?

That is basically the cross section of the second generation Firestorm plug , the one with multiple balls around a center ball . It is said to be better then the first generation Firestorm plug , the one with a center ball surrounded by a cage. I have not tried one yet though.

Hi Moose,

Do you know of any references showing this is where the Firestorm is headed?

[Aaron]

Ash's new vid

Water_Spark_Plug_(reloaded).avi

Thanks for putting up that video Ash, will have to check it out!

[Aaron]

firestorm v2 details?

I would imagine the balls around the ground could be every 90/180/270 as well?

Is the center ball still about 5mm diameter - about the diameter of the ceramic itself?

[gotoluc]

Great job Ash

just watched the whole reloaded video. Thanks for all your time and efforts to bring public awareness to this effect.

Luc

[Xack]

Wouldn't you want to have a concave ring around the ground perimeter instead of convex? The reason I state this is that the firestorm has a "cage" which keeps a somewhat fixed gap around the center "Ball". vs. a gap which is narrowest where the 2 radius are closest.

[gotoluc]

Or how about this design, So far with 500 miles on them they seem to run as good as the firestorm. These are made of steel and just run on standard ignition. The material could be changed to run on plasma ignition. They are much easier to build. Bob

Hi Robert E.,

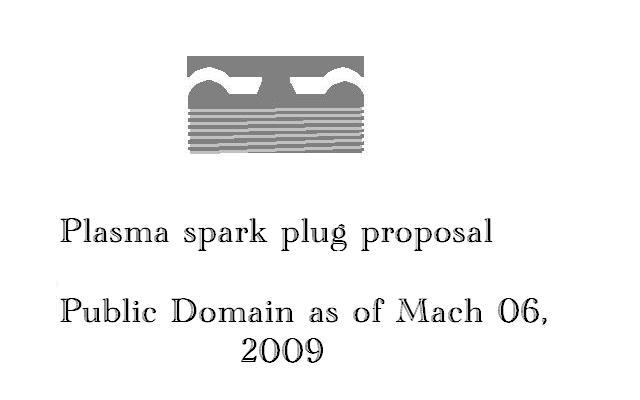

Great and simple design ... I like it and would like to make a proposal by using most of what you have but adding what user Xack mentioned below about concave and convex. See attached.

Wouldn't you want to have a concave ring around the ground perimeter instead of convex? The reason I state this is that the firestorm has a "cage" which keeps a somewhat fixed gap around the center "Ball". vs. a gap which is narrowest where the 2 radius are closest.

I made a quick drawing in paint but I think everyone will get to understand... keep in mind that this is the whole perimeter around the spark plug.

I think the surface area using this design will be much greater than the Firestorm and we could produce these since as of today they are OPEN SOURCE

Let me know what you all think of this design.

Thanks Robert E. and Xack for the ideas.

Luc

[jibbguy]

Excellent work!

Wow, great job Ash, as always

Very good compilation. In answer to the question "How cool is THAT?

VERY COOL!!

And our hats off and deep appreciation to Gotoluc and all the many other talented and dedicated people.... Who have made the Plasma spark phenomena an undeniable reality!!

What a great example of what is possible.... And what will come


__________

Regarding the Firestorm, Mr. Krupa's test car's Air Fuel Ratio was changed to get the "40% or higher" figure for mileage increase (AFR to 24:1 or higher; he took it all the way up to 40:1 too; with no detonation, higher horsepower, and exhaust temp lower by 100 deg. F.. something supposed to be "impossible" by industry skeptics). I believe a "15%" mileage gain was the quote for i would call "firestorm plug with enhanced spark only" (1 Joule spark, with no AFR change). Since he is an industry insider; Mr. Krupa had a verycool laptop proggy that could change the AFR on the fly when hooked up to the 'puter (i WANT that proggy, lol).
