Junkyard electricity

[Pot head]

What!?!?

I thought you all might sit and laugh at this drawing.

[Pot head]

Off topic

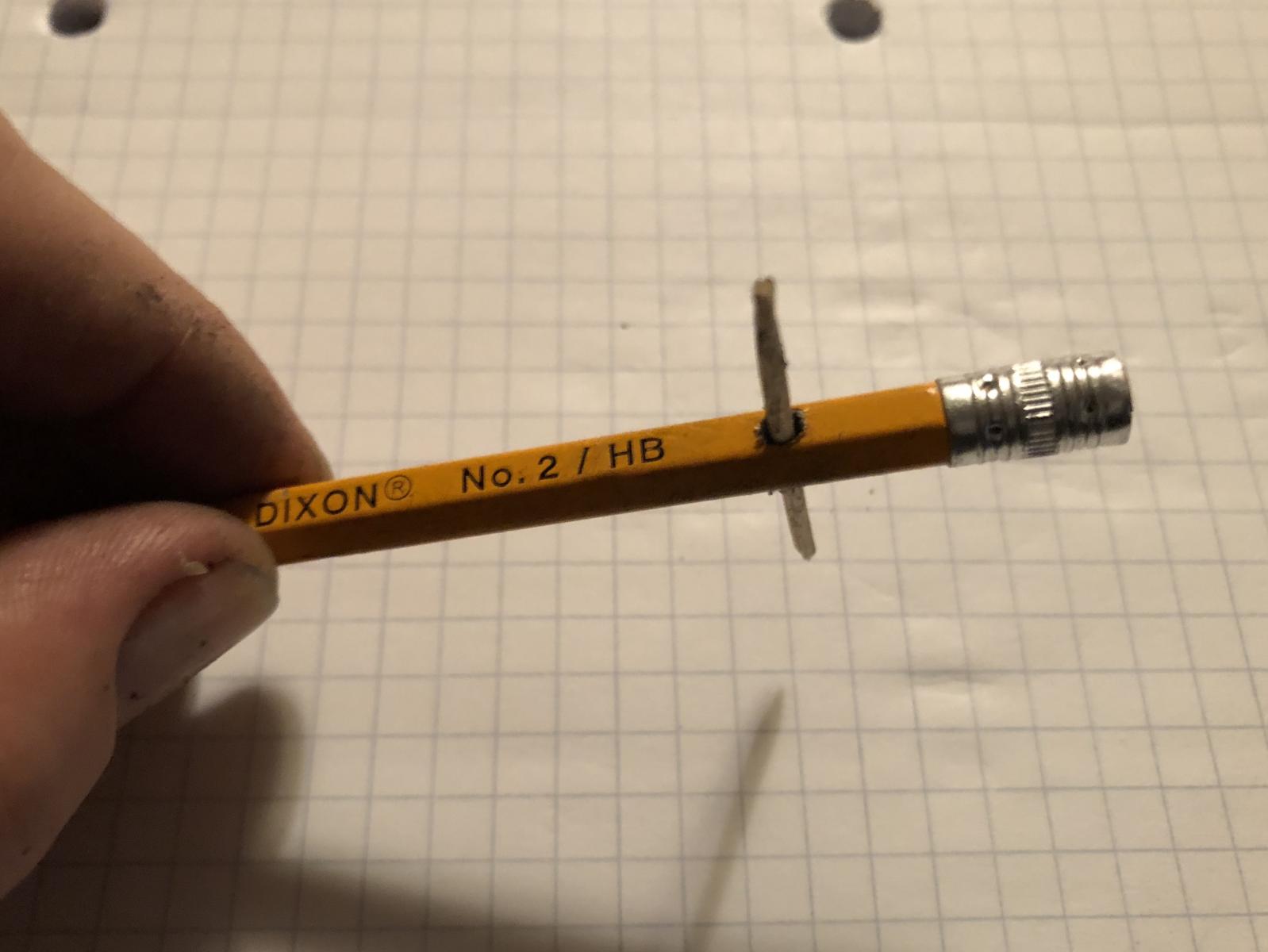

Okay, a little off topic but a cheap spark gap can be had by drilling a hole in the side of a pencil.

[Pot head]

no spark gap?

Are you talking to me? I am not questioning the possibilities here.
Can you show a circuit or a direction to go in? Is this a Don Smith?

What does the spark gap do to help this? If any. No spark gap?

HV can be fun.

ok bromikey, I will try using the pencil spark gap in the charge battery circuit after finishing this build.
I will also draw an update of my build.
Until then check out this possibility.
Will it work?

[Pot head]

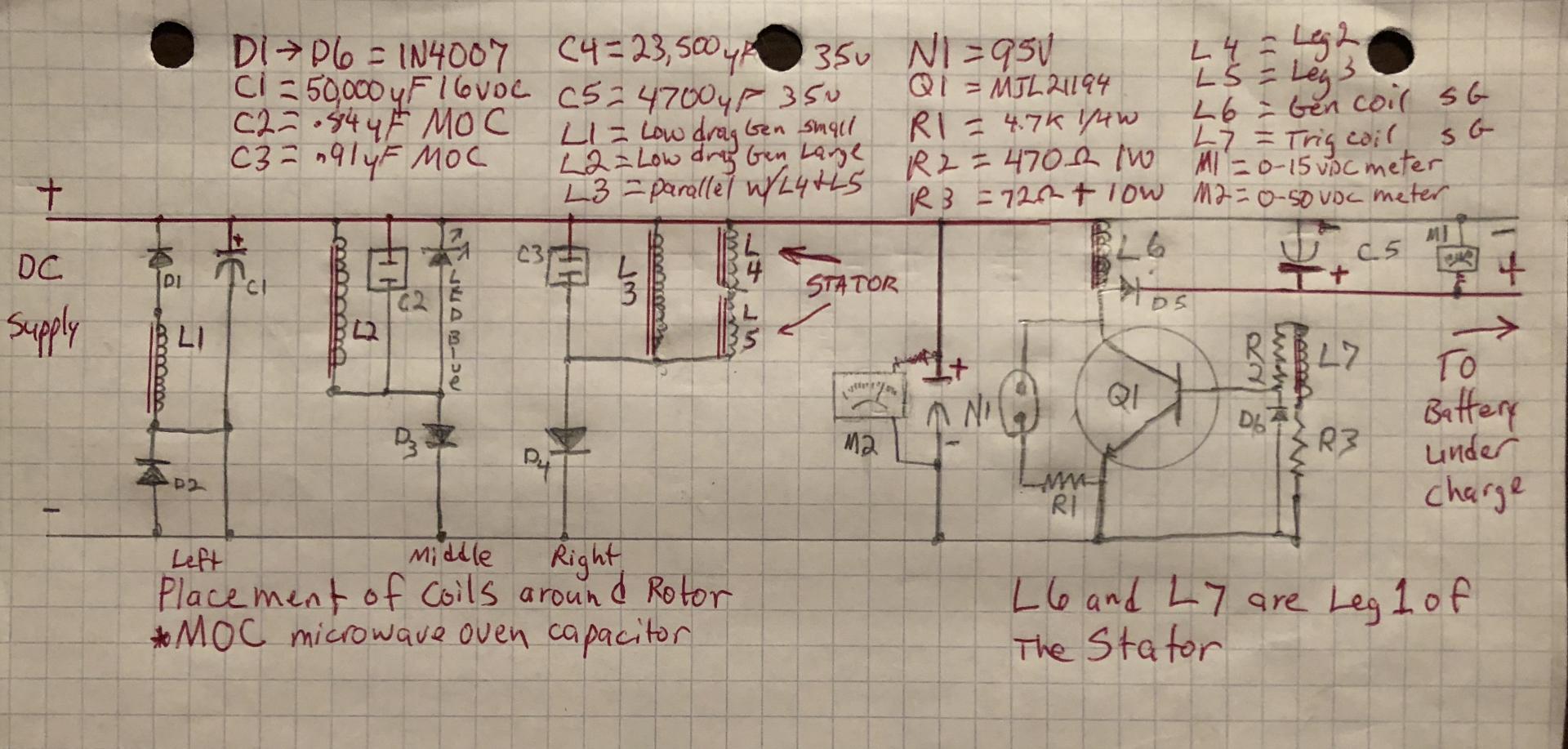

Nonpaper schematic

Here is the current hookup from the top.
It runs at the same speed until about 4 volts then shuts down.

[Pot head]

[Pot head]

[Pot head]

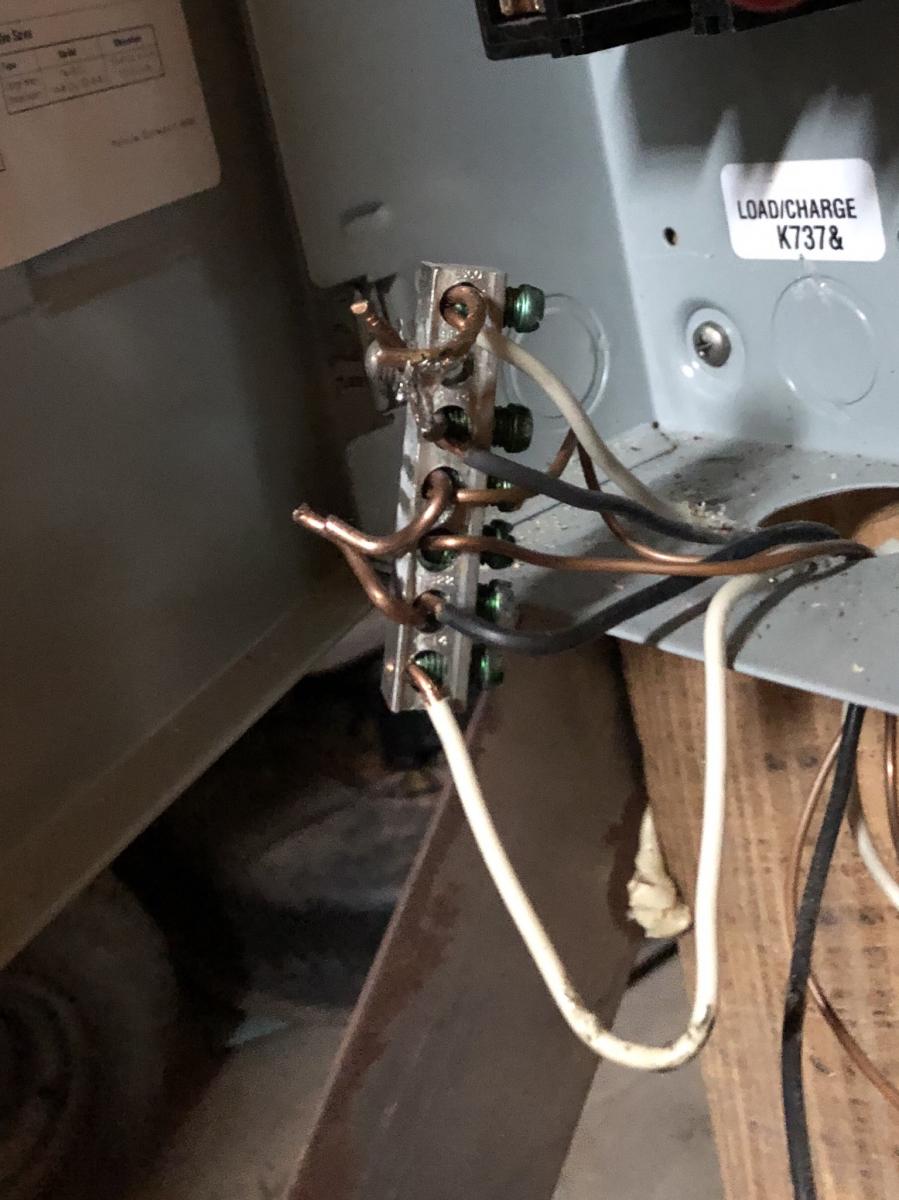

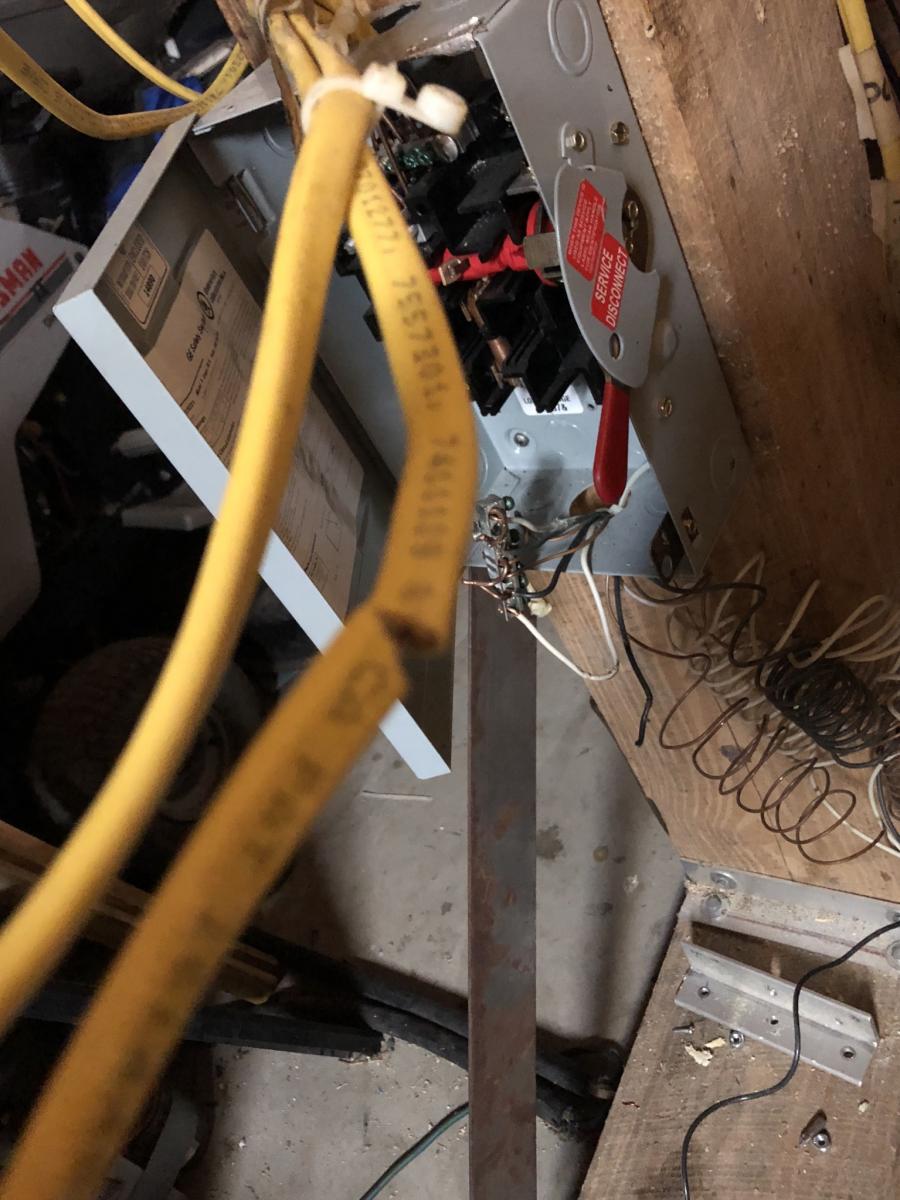

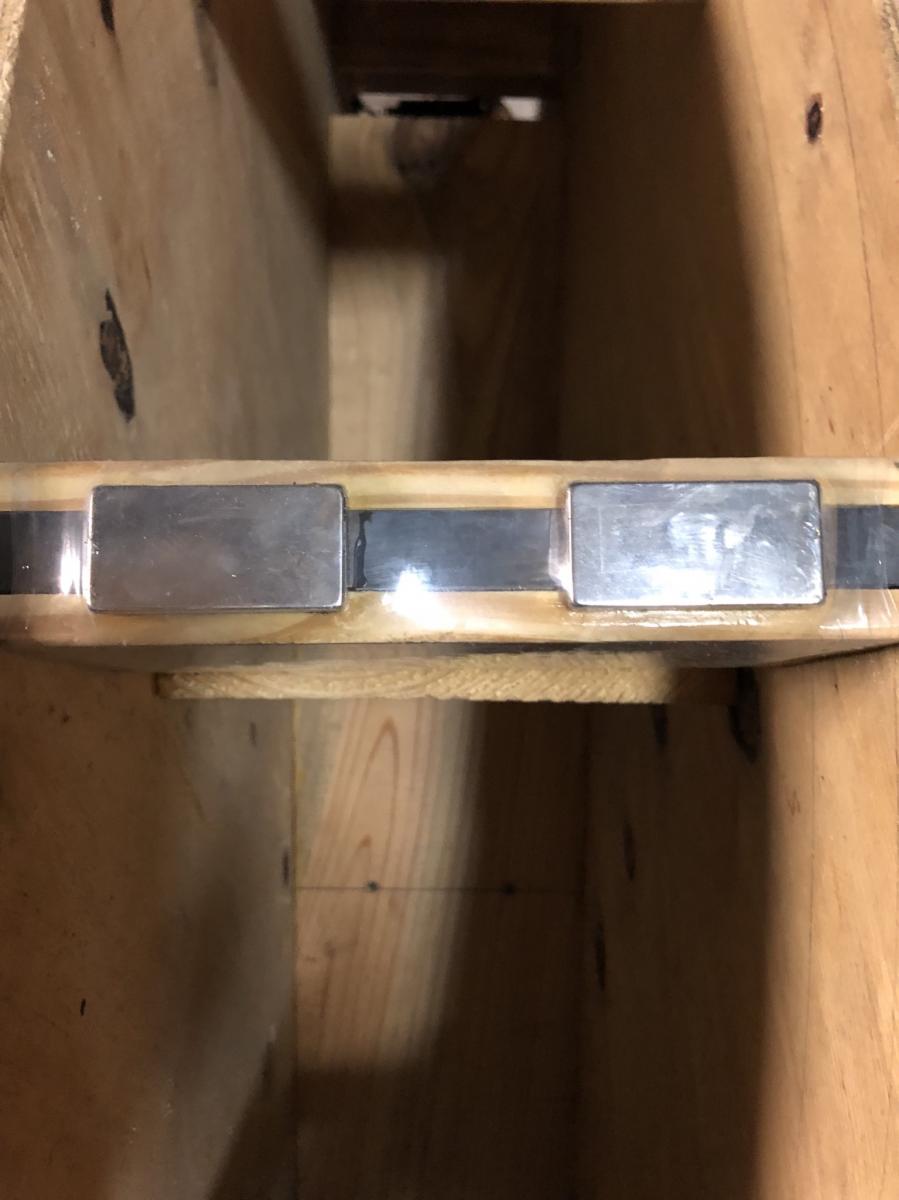

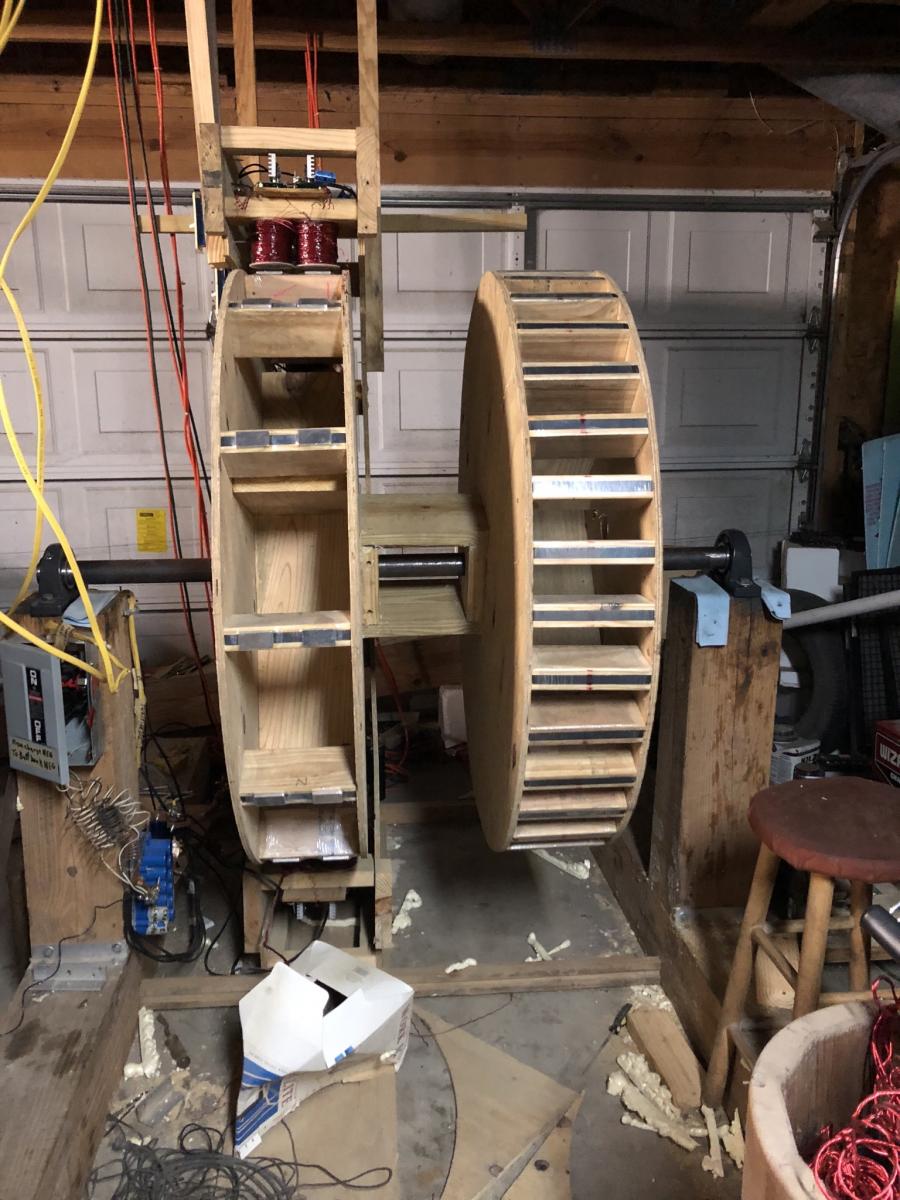

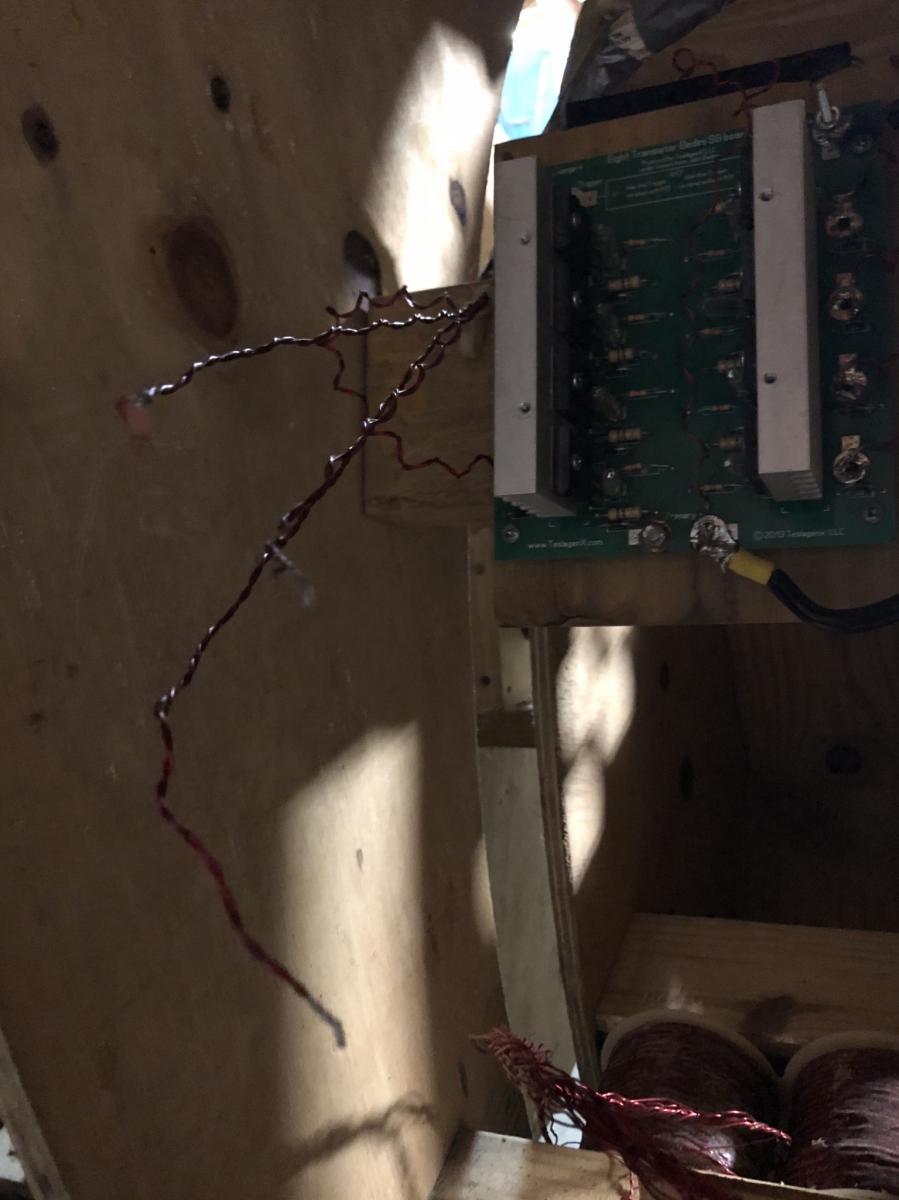

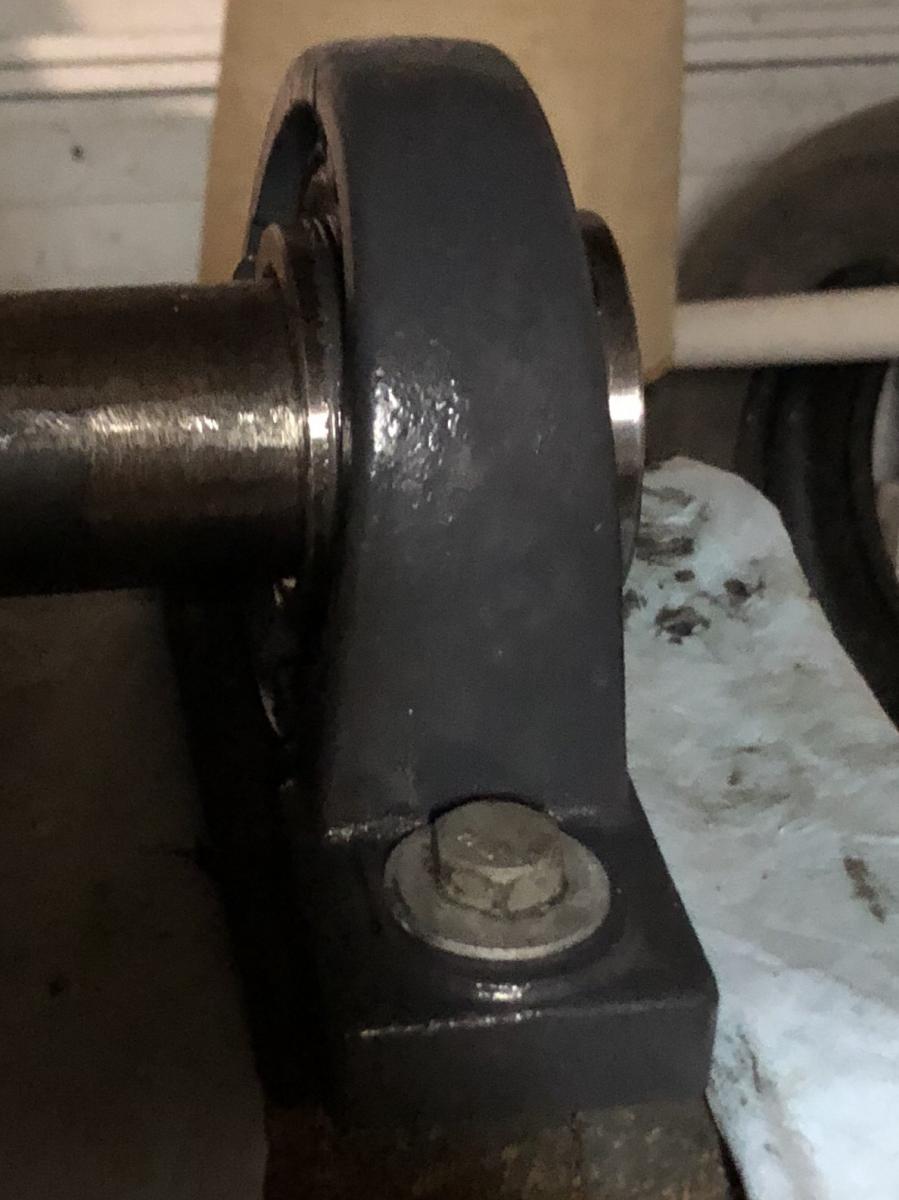

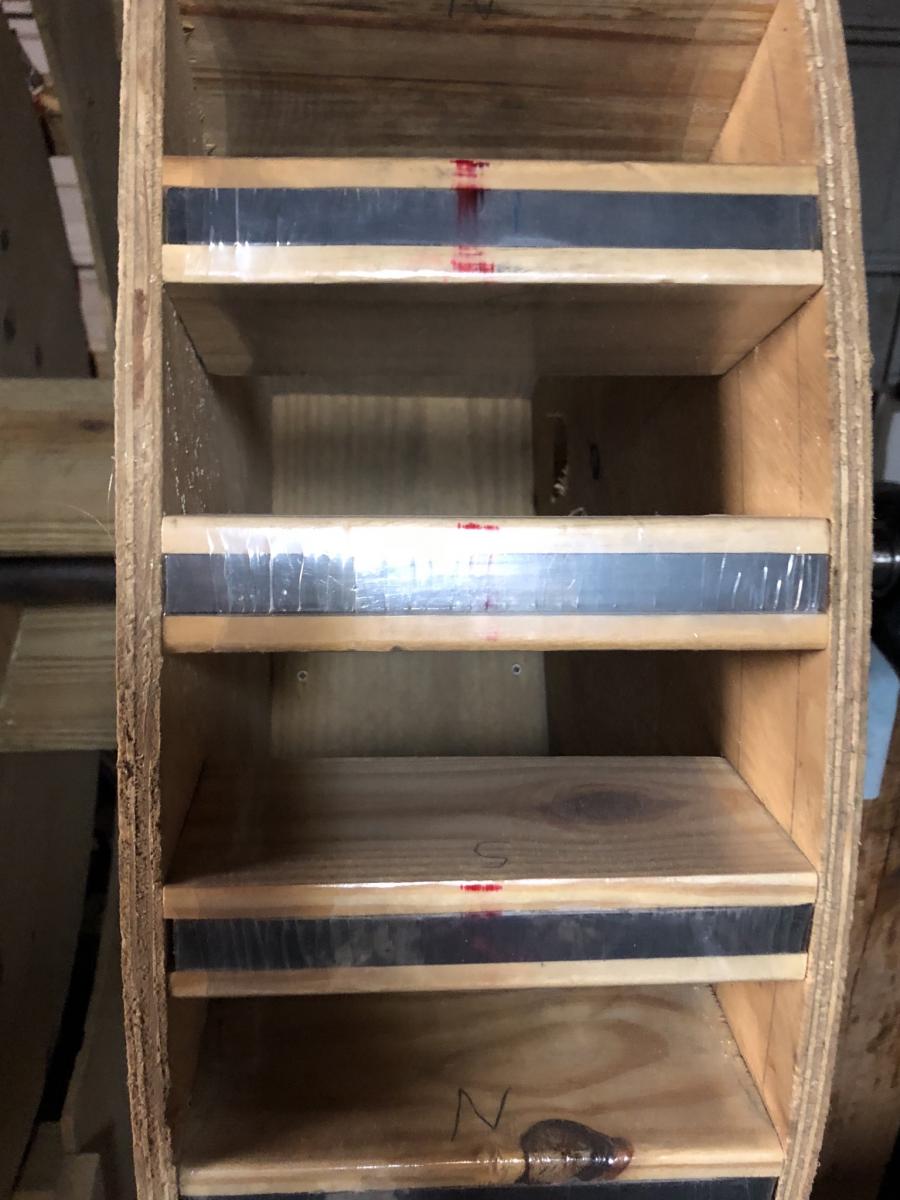

More of my broke build in photos.

The man, Stonewater on the forum, has witnessed my vids I shared with him.
Maybe he still has them?
Nevertheless, he did witness by proxy, my work.

[Pot head]

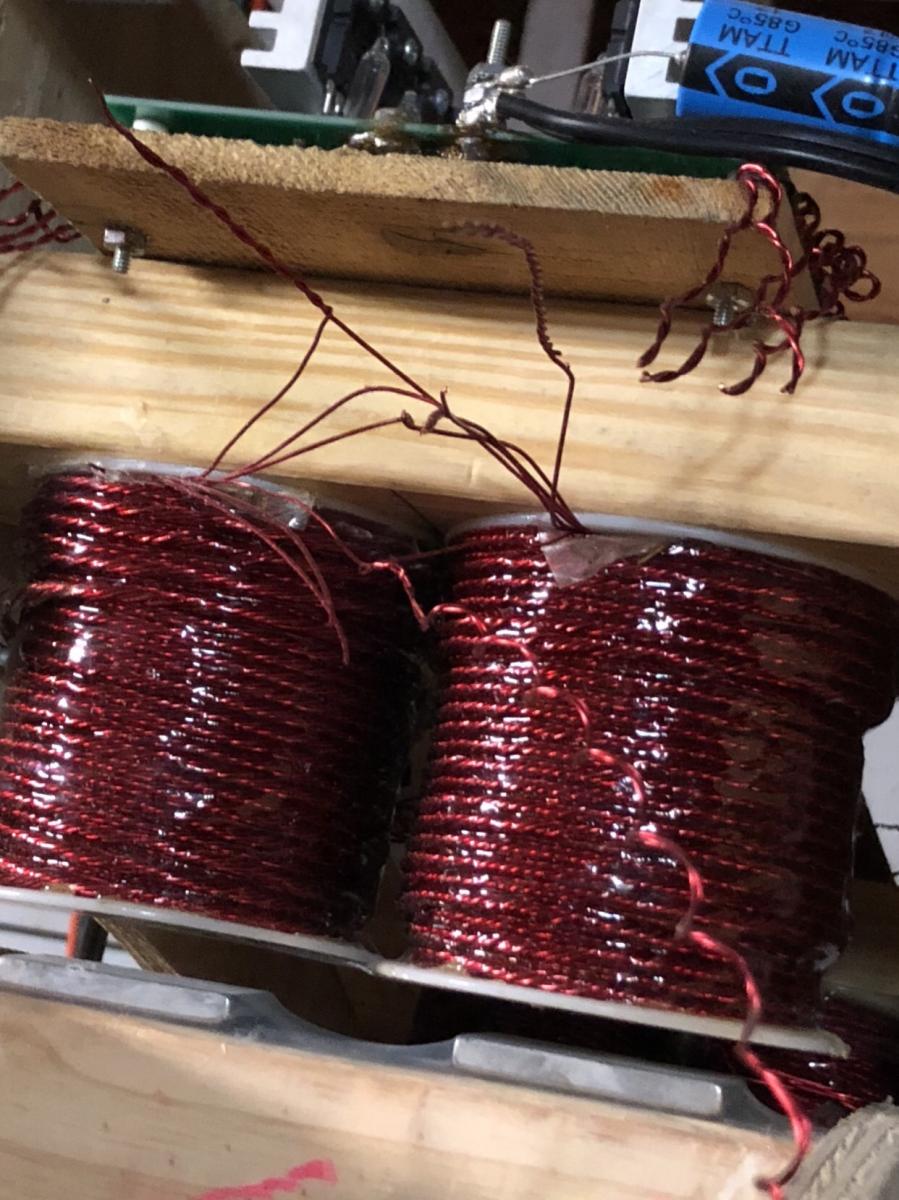

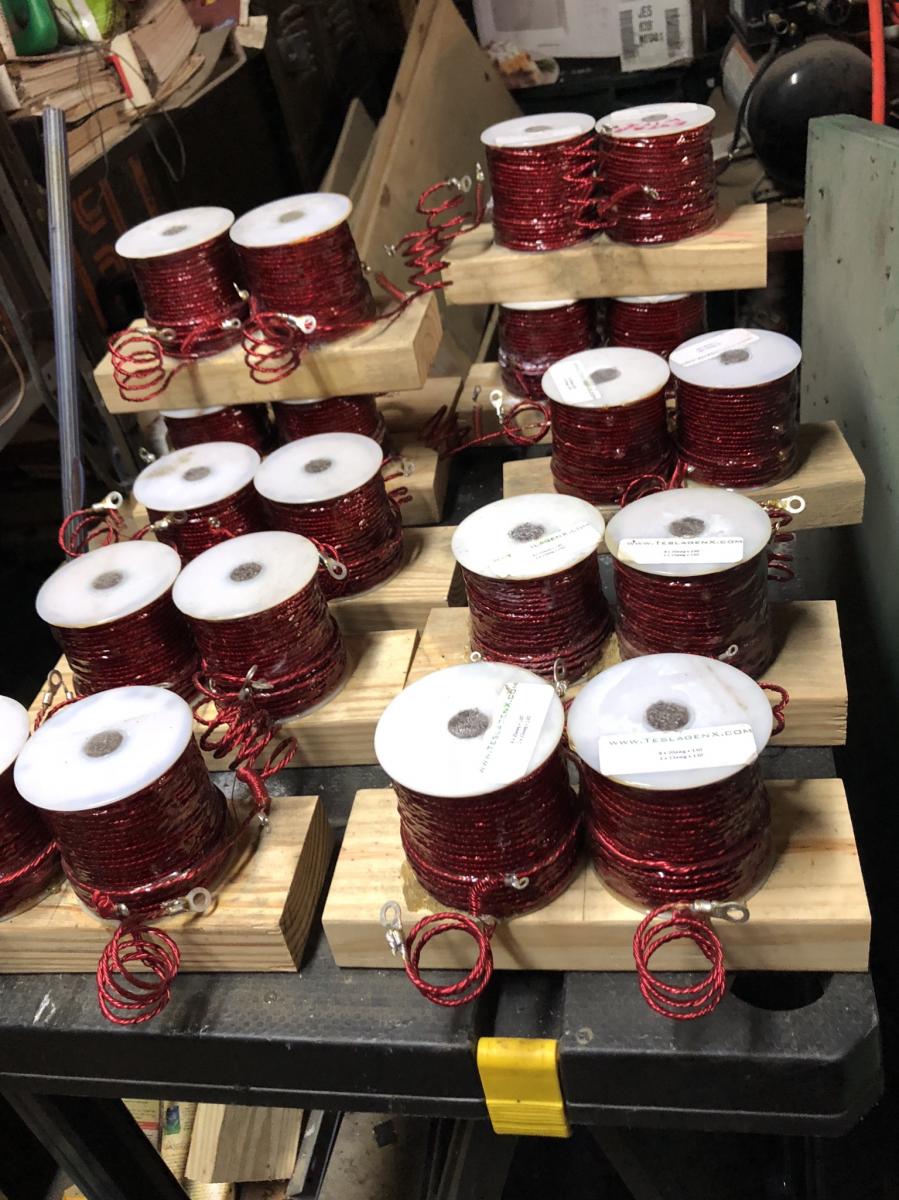

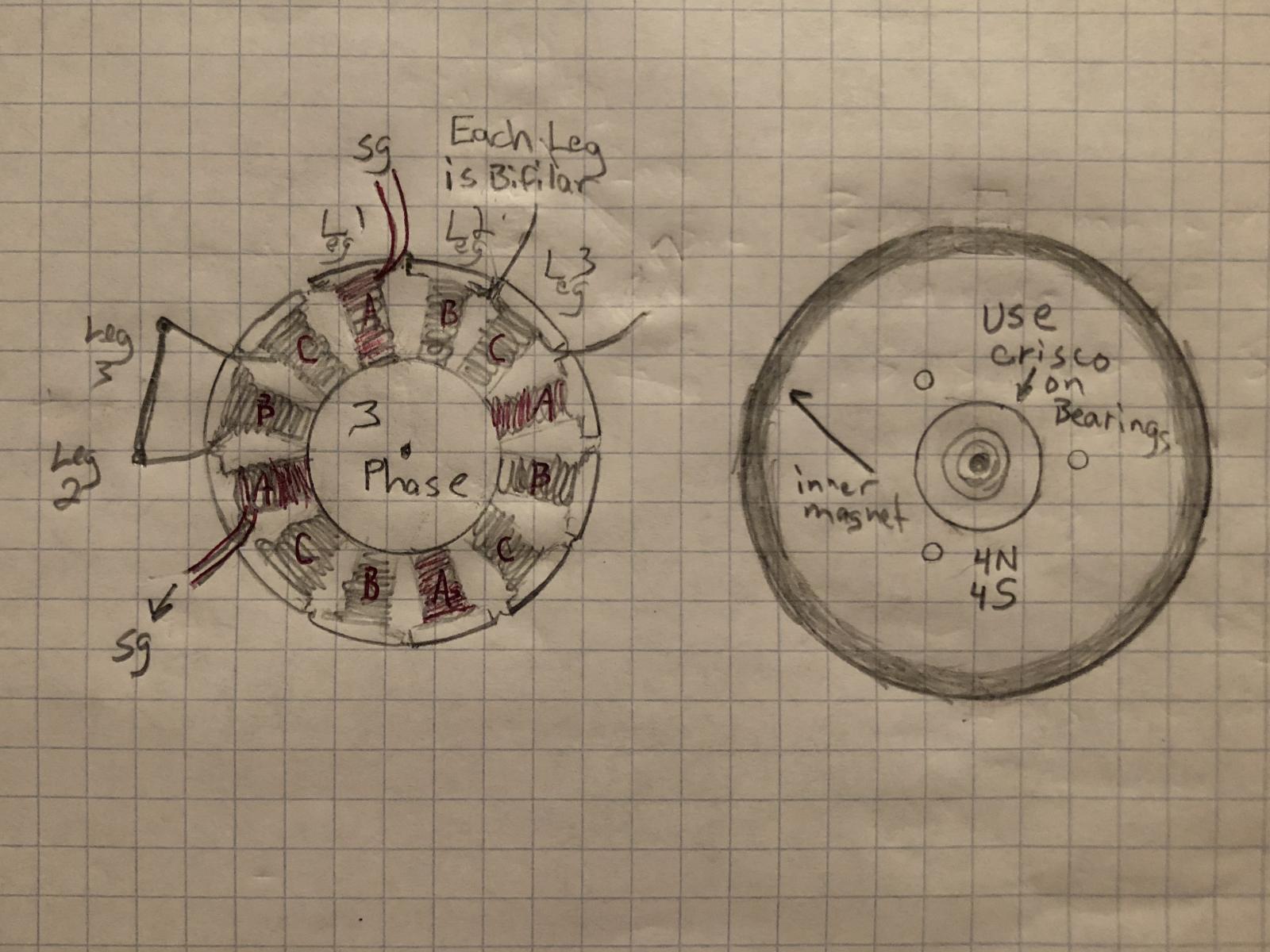

Stator

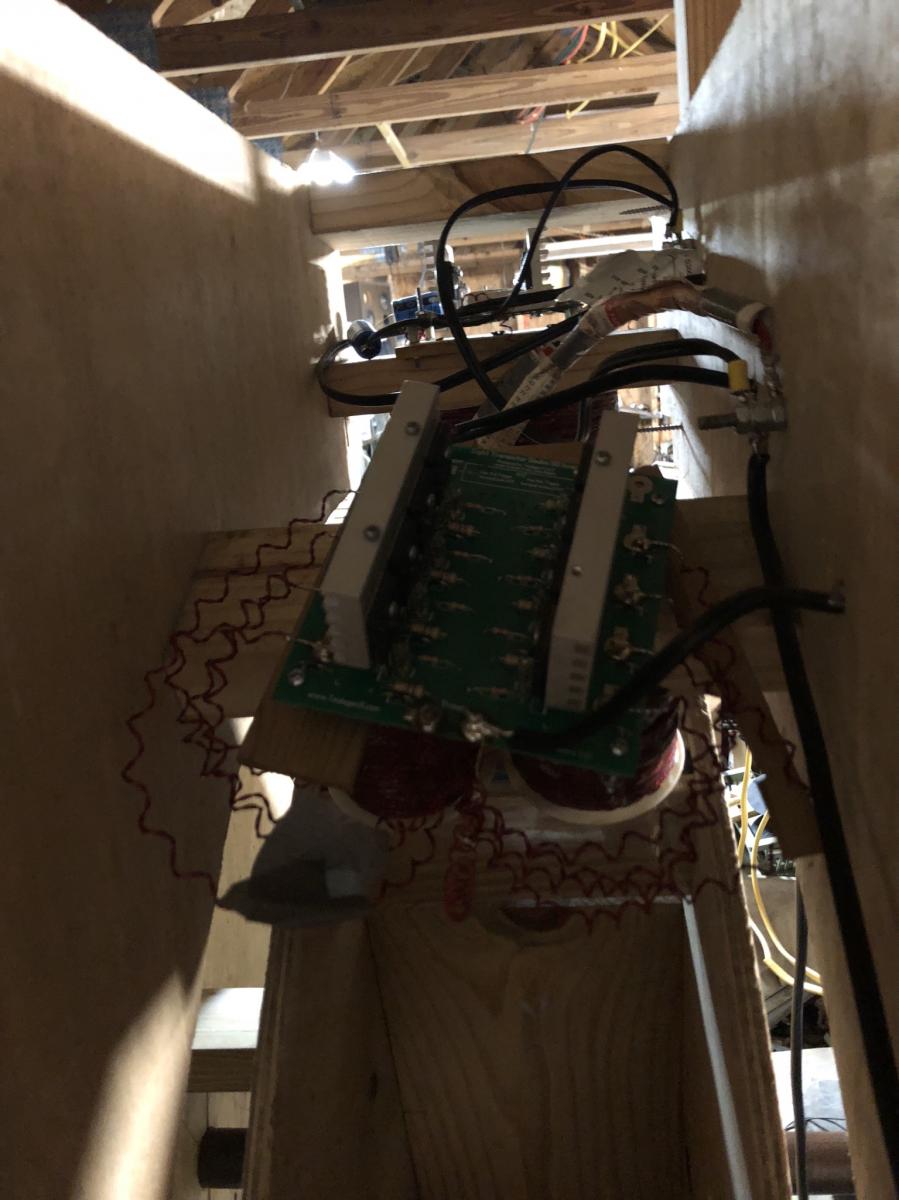

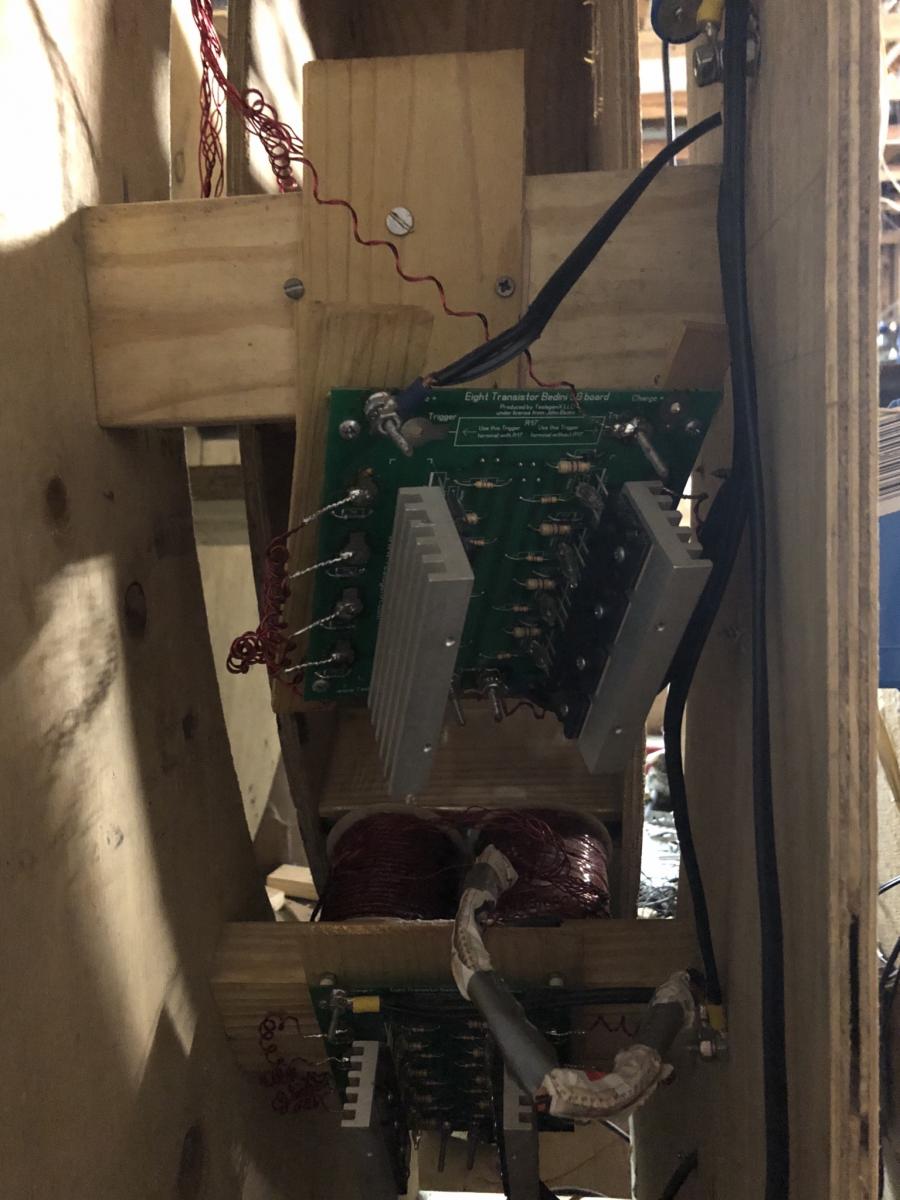

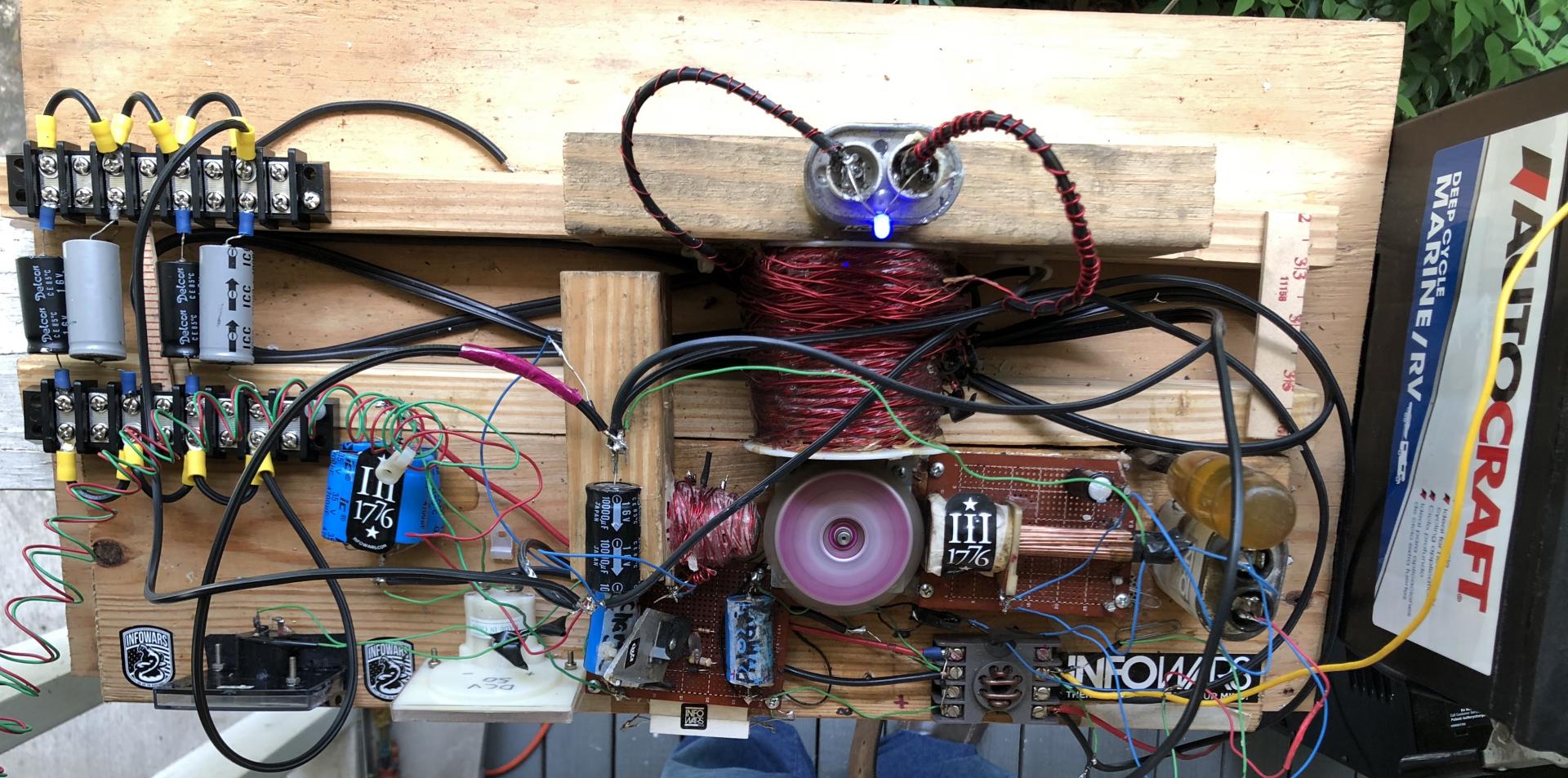

Here is the set up for the sg circuit and the other coils.

[Pot head]

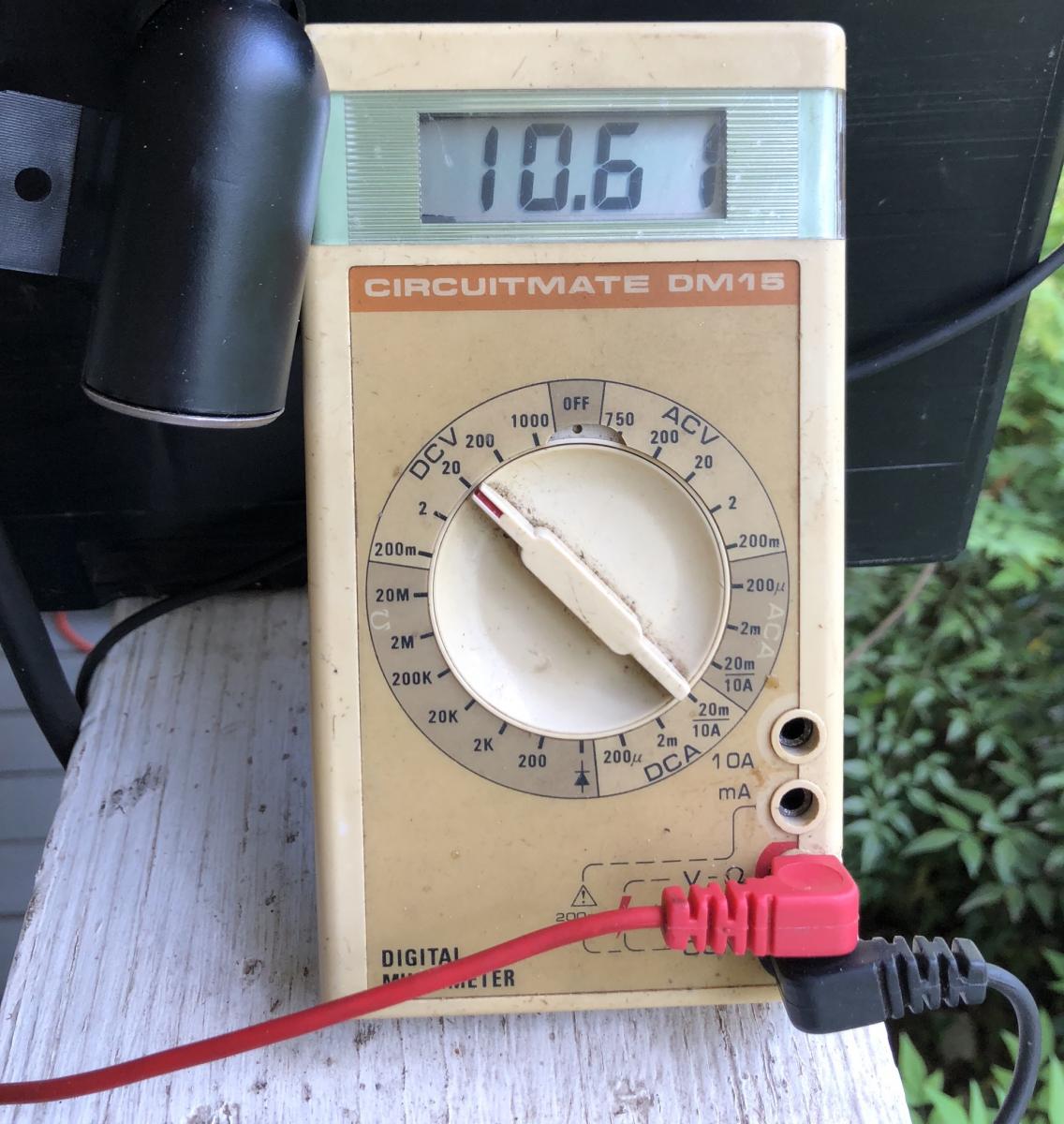

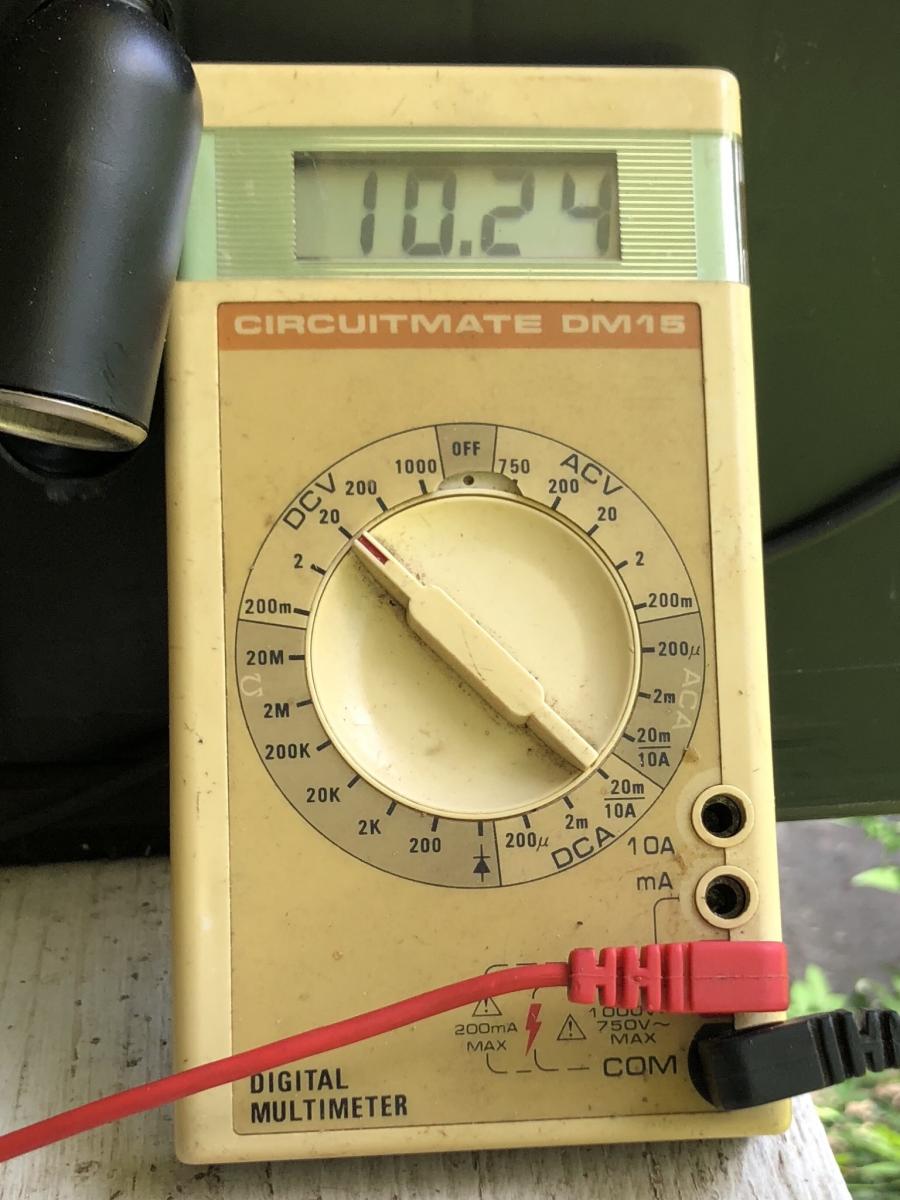

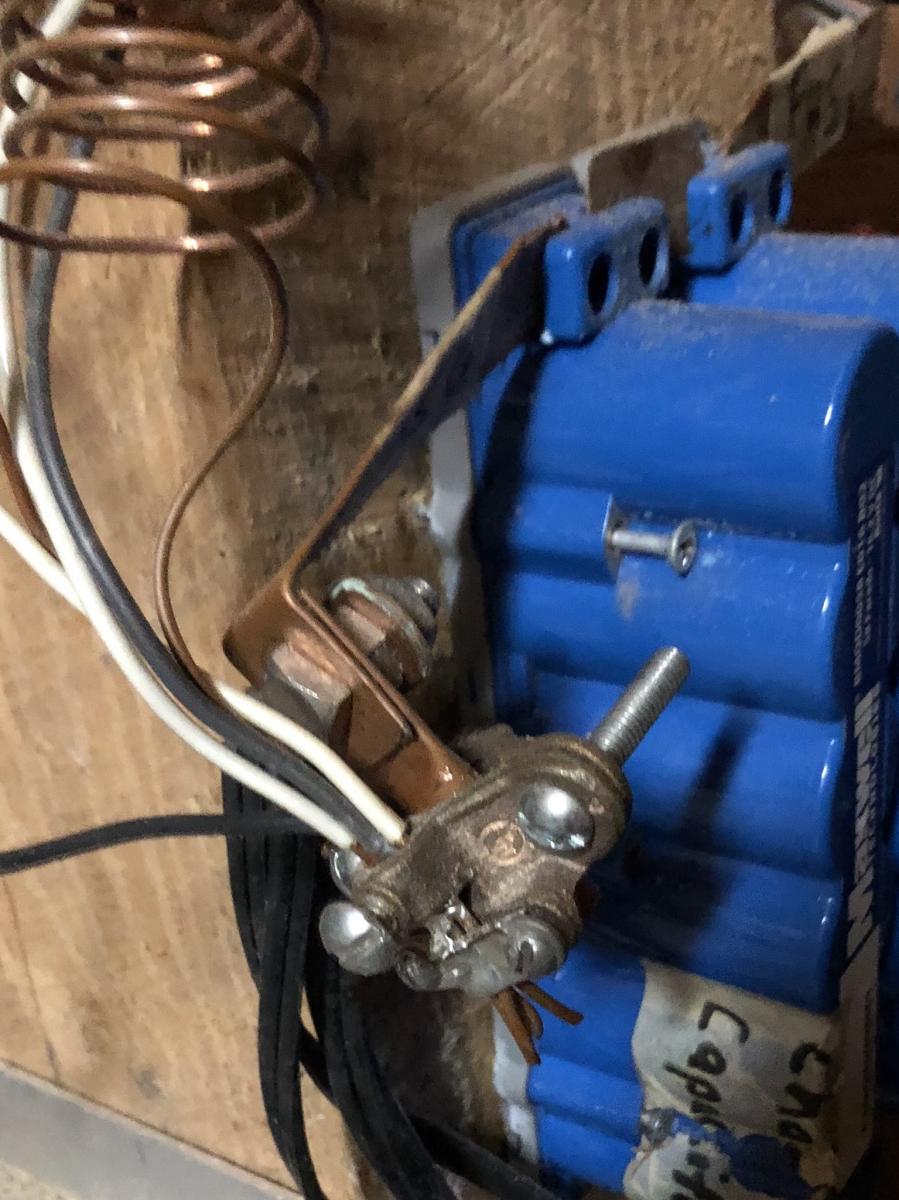

The latest reading of voltage use since the last photo.
The caps seem to be doing their job in reducing battery consumption.

[Pot head]

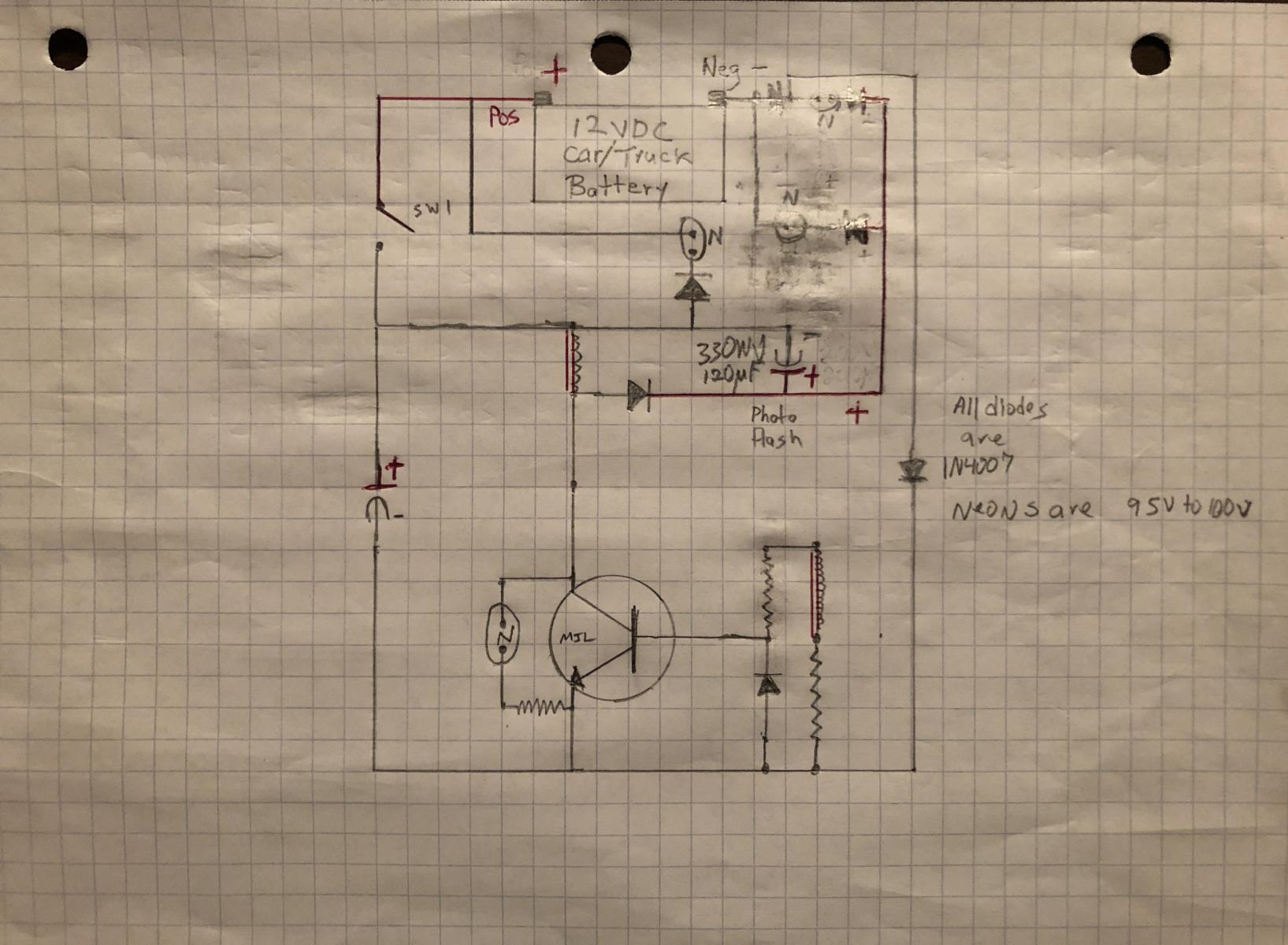

I am trying to accurately put on paper what is built out of junk.
If anyone finds a mistake, please do say something.
Thank you.

[Pot head]

[Trexgee]

Junkyard electricity

Greetings, I am digging your work. It helps inspire me. Keep it going.
I have been tinkering with an idea to use 2 bedini style pulse energizers to spin a Whimhurst generator. I am building a small one first as a proof of concept, I just got another batch of transistors so I can fix my current experimenters wheel.

Peace within

Treven Gee

[Pot head]

[Pot head]

Coils Are Shaped in thought

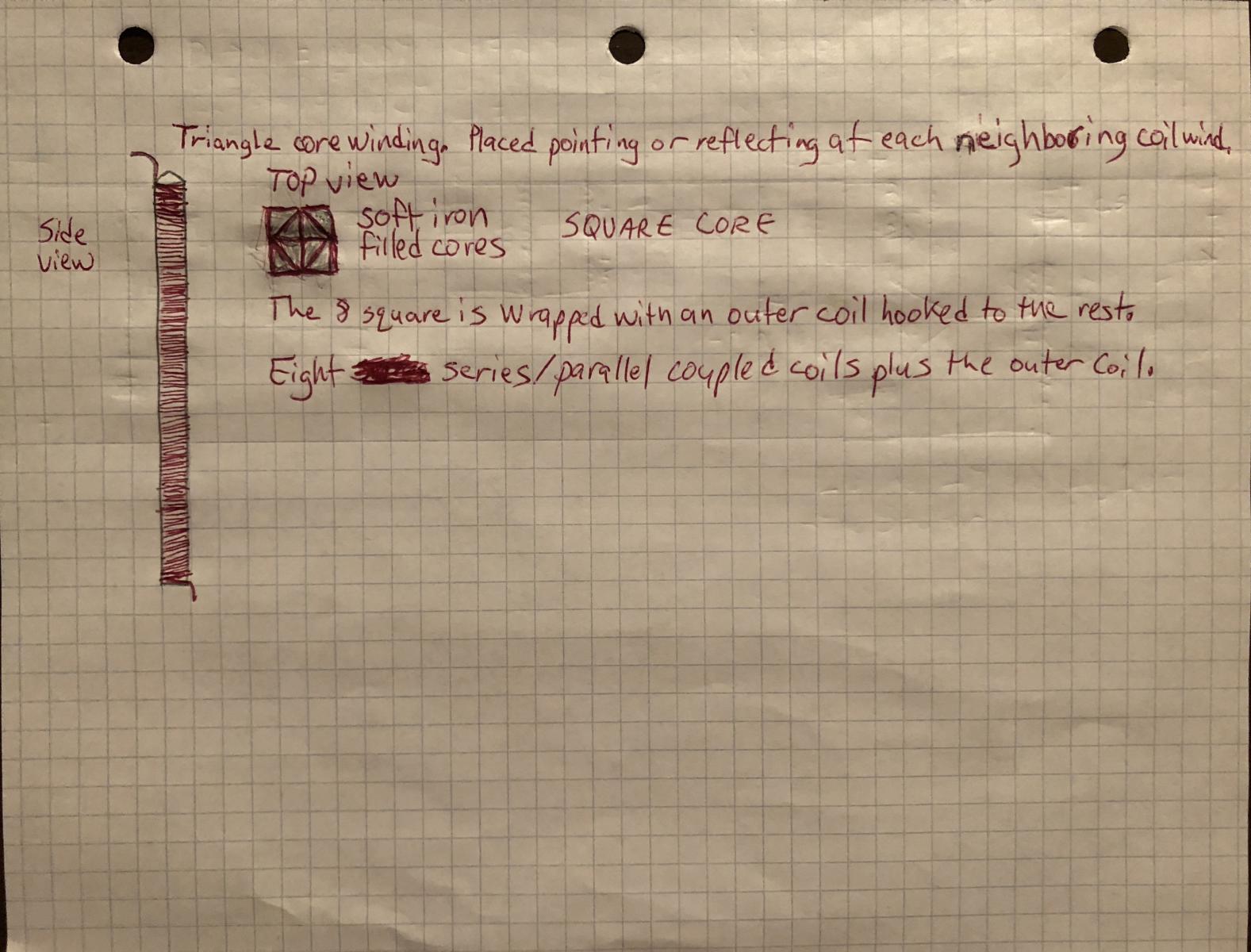

Maybe a drawing of an idea could help me to understand a concern over square cores.
Triangles make up squares 2:1...

[Pot head]

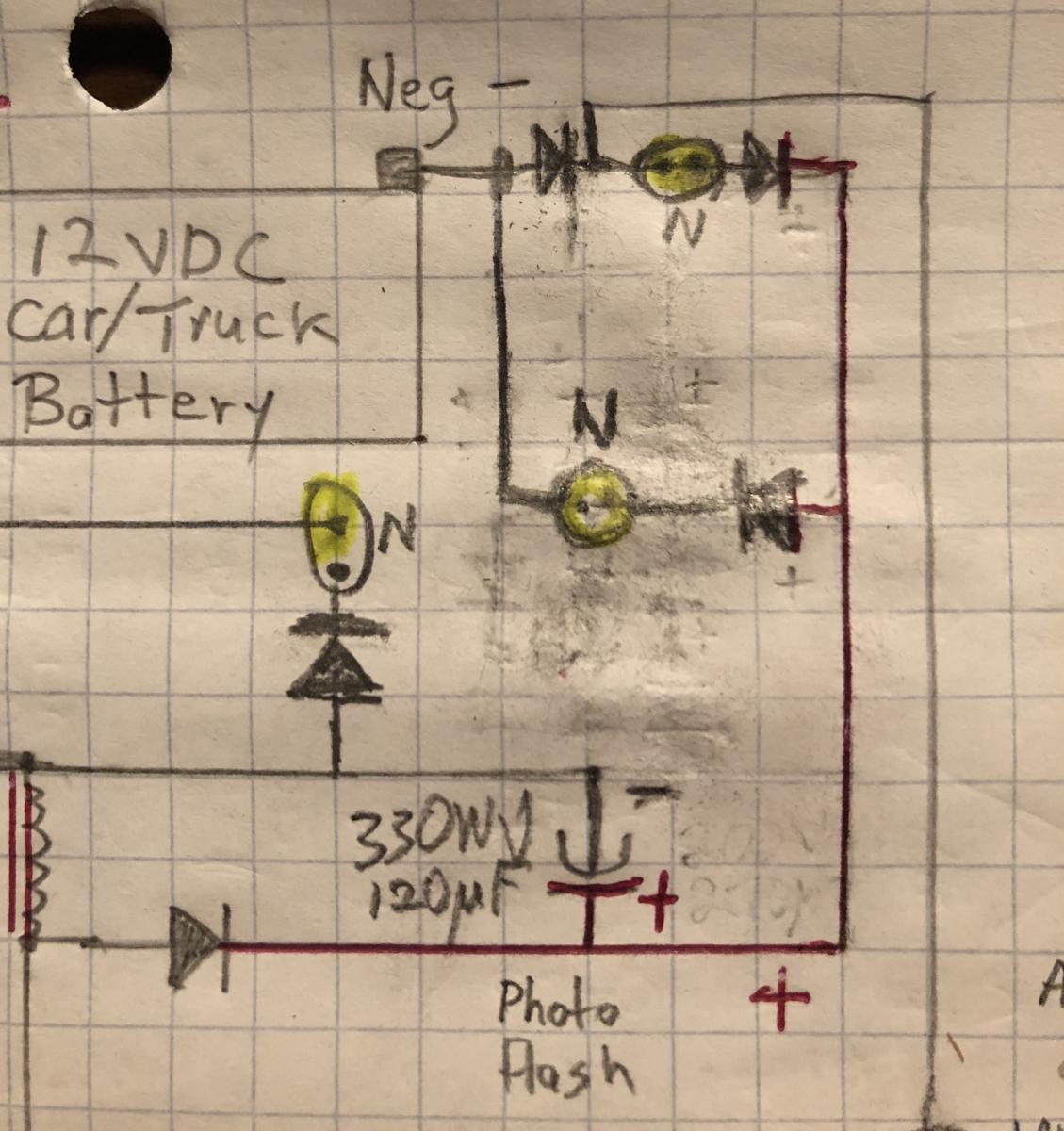

Cap dump circuit

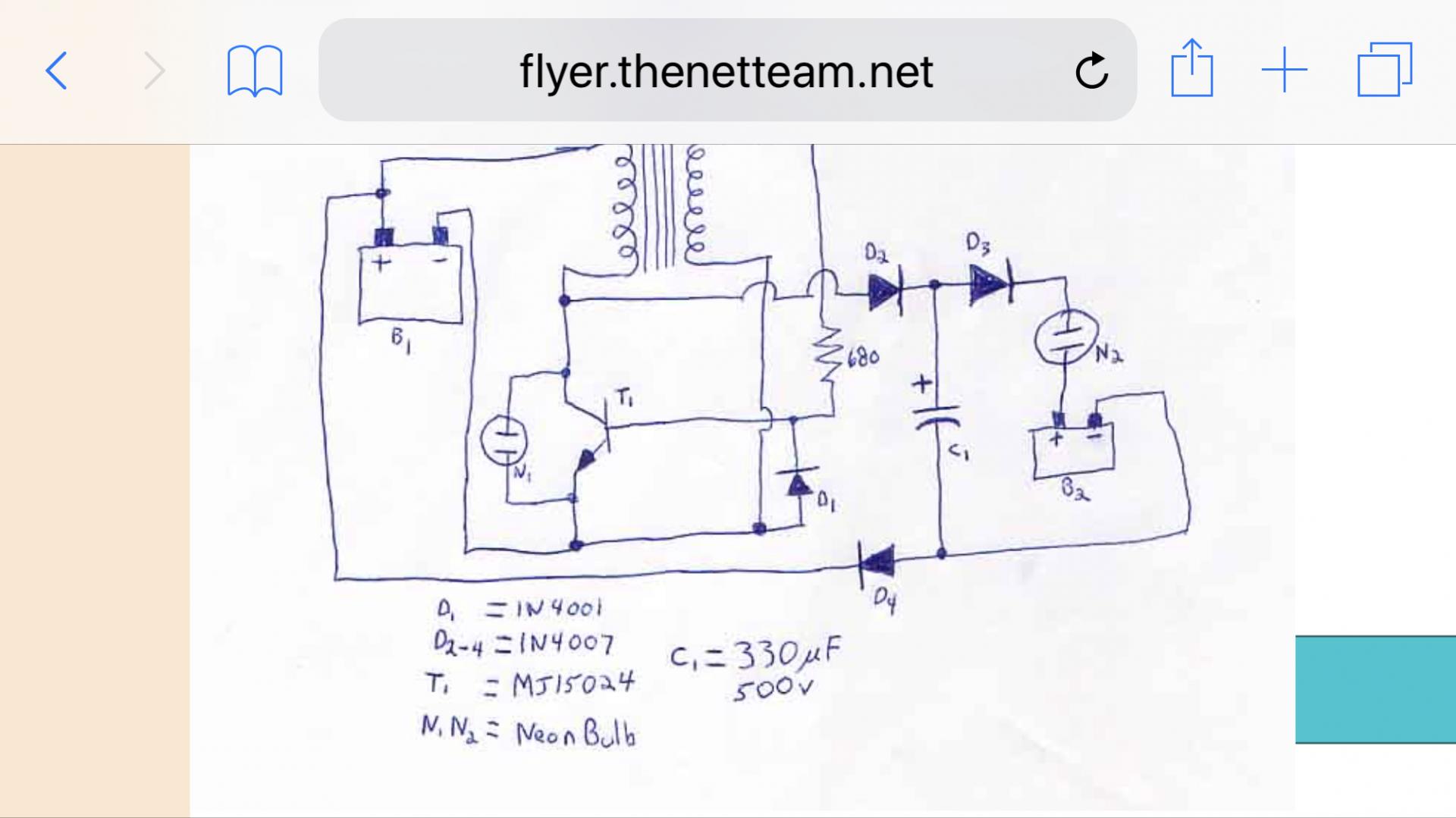

Hey BroMikey, the cap dump circuit is a simple one, right from your website.
I only have an electret photo flash capacitor @330wv @120 microfarads and a
200 vdc @ 270 microfarads.
The photo flash would not work, maybe not the best choice, but I only have those two choices, remember this is what I find in my garage.
I hooked up the 200 vdc 270 microfarad capacitor and it flashed then glowed on the charge circuit side and stopped flashing.
What is your mind set on this tiny problem?
Thank you.
